2. Disassembly of the motor prior to

expiration of warranty will void the

warranty. If repairs are required, see

troubleshooting chart.

4. Inlet should be kept clean and free of

all foreign objects and inspect annually.

A clogged inlet will damage pump.

5. Pump should be checked monthly for

proper operation.

This pump contains

dielectric oil for

cooling. This oil can be harmful to the

environment. Check the state

environmental laws before disposing this

oil.

WARNING

Maintenance

Always

disconnect

the electrical supply before

attempting to install, service,

relocate or perform any

maintenance. If the power source is out of

sight, lock and tag in the open (off)

position to prevent unexpected power

application. Failure to do so could result in

fatal electrical shock. Only qualified

electricians should repair this unit.

Improper repair could result in fatal

electrical shock.

1. Let the pump cool for a minimum of

two hours before servicing because the

pump contains hot oil under pressure

and the motor is hot.

DANGER

Operating Instructions And Parts Manual

Troubleshooting Chart

Symptom Possible Cause(s) Corrective Action

Pump will not start or

run

Pump starts and stops

too often

Pump will not shut off

or thermal protector

turns off

Pump operates but

delivers little or no

water

1. Blown fuse

2. Low line voltage

3. Defective motor

4. Defective float switch

5. Impeller bound-up

6. Float obstructed

1. Backflow of water from piping

2. Faulty float switch

1. Defective float switch

2. Obstacle in piping

3. Float obstructed

1. Low line voltage

2. Plugged impeller

1. Replace with proper sized fuse or reset breaker

2. If voltage is under 108 volts, check wiring size

3. Replace pump

4. Replace float switch

5. Remove housing; remove blockage

6. Make sure float moves freely up and down

1. Install or replace check valve (Wayne check valve kit #66005-WYN)

2. Replace float switch

1. Replace float switch

2. Remove pump; clean pump and piping

3. Make sure float moves freely up and down

1. If voltage is under 108 volts, check wiring size

2. Clean out impeller

Specifications

Power supply requirements 120V, 60 hz

Motor Single phase, oil

filled

Liquid temperature range 40°F to 120°F

Circuit requirements 15 amps (min)

Dimensions 11” high x 9” base

Cut-in level (factory set) Tether 14”

Cut-out level (factory set) Tether 7”

Construction

Motor housing Thermoplastic

Volute Thermoplastic

Impeller Thermoplastic

Shaft Stainless steel

Seals Buna N

Discharge 1

” NPT

Limited Warranty

For one year from the date of purchase, Wayne Home Equipment Division

("Wayne") will repair or replace, at its option, for the original purchaser any part or

parts of its Sump Pumps or Water Pumps (“Product”) found upon examination by

Wayne to be defective in materials or workmanship. Please call Wayne (800-237-

0987) for instructions or see your dealer. Be prepared to provide the model number

and the serial number when exercising this warranty. All transportation charges on

Products or parts submitted for repair or replacement must be paid by purchaser.

This Limited Warranty does not cover Products which have been damaged as a result

of accident, abuse, misuse, neglect, improper installation, improper maintenance, or

failure to operate in accordance with Wayne’s written instructions.

THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING

THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR FROM THE DATE OF PURCHASE. THIS IS THE EXCLUSIVE

REMEDY AND ANY LIABILITY FOR ANY AND ALL INDIRECT OR CONSEQUENTIAL

DAMAGES OR EXPENSES WHATSOEVER IS EXCLUDED.

Some states do not allow limitations on how long an implied warranty lasts, or do

not allow the exclusions or limitations of incidental or consequential damages, so

the above limitations might not apply to you. This limited warranty gives you specific

legal rights, and you may also have other legal rights which vary from state to state.

In no event, whether as a result of breach of contract warranty, tort (including

negligence) or otherwise, shall Wayne or its suppliers be liable for any special,

consequential, incidental or penal damages including, but not limited to loss of profit

or revenues, loss of use of the products or any associated equipment, damage to

associated equipment, cost of capital, cost of substitute products, facilities, services or

replacement power, downtime costs, or claims of buyer’s customers for such damages.

You MUST retain your purchase receipt along with this form. In the event you need to

exercise a warranty claim, you MUST send a copy of the purchase receipt along with

the material or correspondence. Please call Wayne (800-237-0987) for return

authorization and instructions.

DO NOT MAIL THIS FORM TO WAYNE. Use this form only to maintain your records.

MODEL NO._______________ SERIAL NO.__________________________ INSTALLATION

DATE_____________

ATTACH YOUR RECEIPT HERE

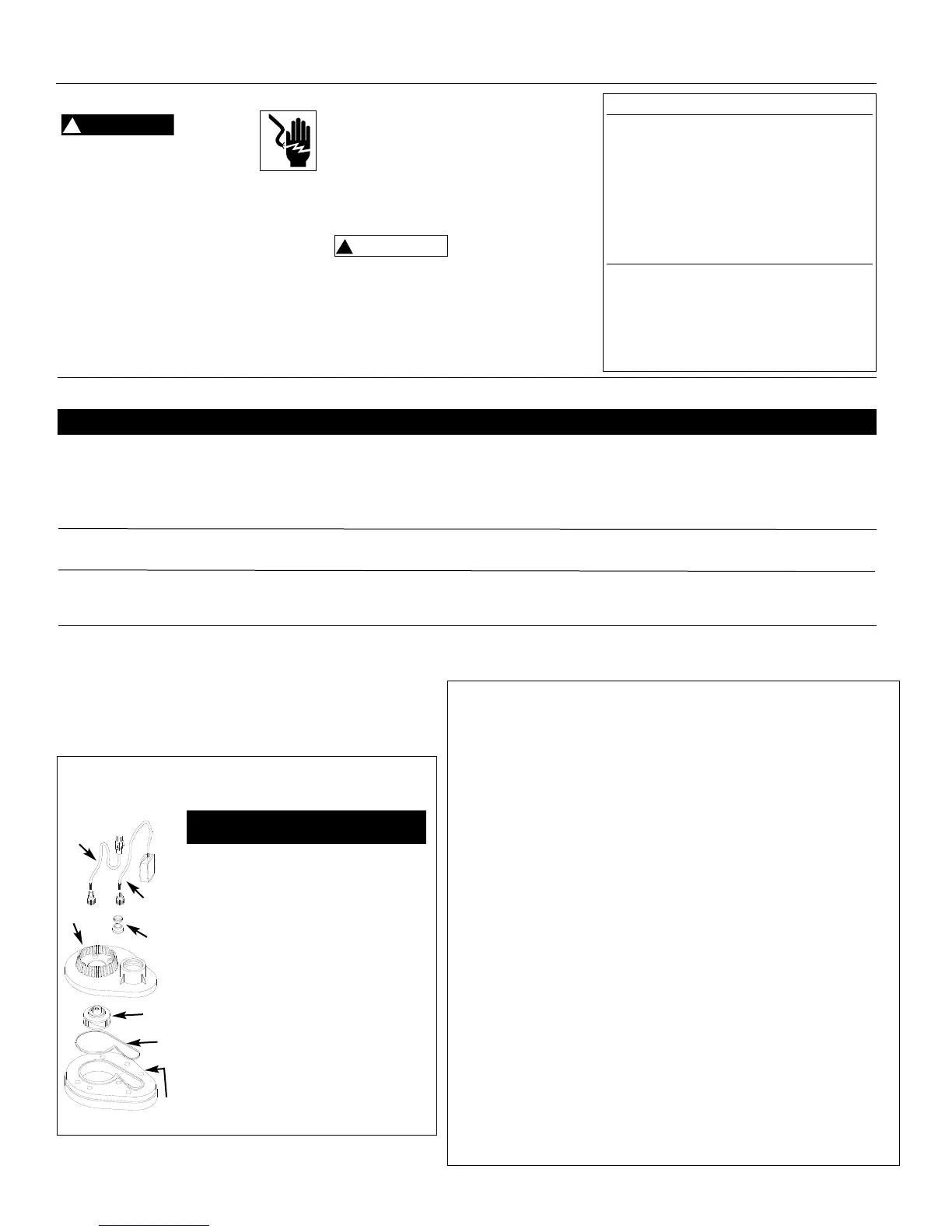

Replacement Parts List – For Replacement Parts,

call

1-800-237-0987 Only use factory parts to repair this pump.

Ref. Part Number

No. Description

1 Power Cord 30019-001

2 Float Switch 31039-001

3 Shaft Seal 21010-001

4 Volute Cover 28104-001

5 Impeller 28105-001

6 Volute Gasket 19048-001

7 Volute Base 28106-001

Address parts correspondence to:

Wayne Home Equipment

100 Production Drive

Harrison, OH 45030 U.S.A.

Please provide following information:

- Model number

- Serial number (if any)

- Part descriptions and number as shown

in parts list
