8
INSTALLATION
1. For optimum audibility of the high frequencies we recommend installing the tweeter of the studio monitors at face level; if necessary use an
appropriate speaker stand. Be sure to use an even, stable underground; if necessary, use sound cushioning material.
2. These speakers are near-eld monitors which can be set up at a short distance to the listener.
3. To avoid reection from walls that are too close (e.g. room corners), turn the speakers slightly towards you. To optimise your ambience
acoustics, you may use sound absorbing plates.
4. When using a microphone, be sure to position it always behind the loudspeaker to avoid potential feedback when activated.

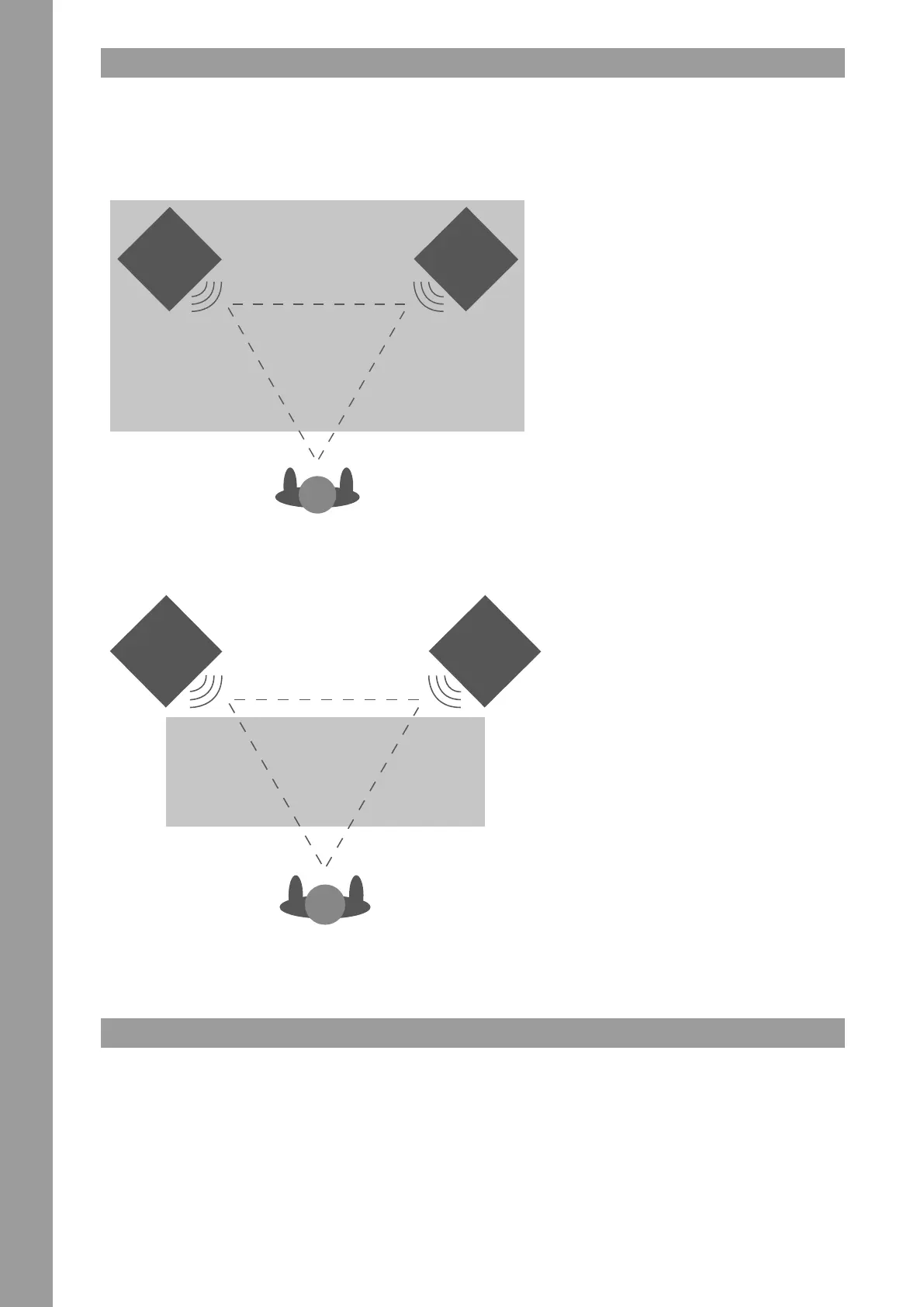

Neareld Installation
In control rooms the monitors are usually placed on the studio console (face level). For this purpose the positioning of the monitors and the listener
should be arranged in an equilateral triangle. In this installation the monitors are placed at a 60° angle to the listening position.
Mid-Field Installation
This installation is more or less the same as the close-eld installation. This variant is usually used if the monitors are too large or heavy to be
placed on the studio console. This setup offers a larger sweet spot and a better spacial acoustic imaging. In this installation the monitors‘ woofer
should be positioned above the height of the studio console.
CONNECTIONS
1. Connect the two speakers via the corresponding clamps -7-.
2. Now connect your signal source with the Signal Input -2- (RCA)
3. If required, connect a subwoofer via the corresponding Signal Output (3.5 mm Jack) -3-.
4. Hook up the Mains Cord Connection -8- with the mains cable and connect it to your power outlet.
ENGLISCH
