LUGGAGE NET (2/2)
10
6
– fix the net belt hook 11 onto the an-
choring points 10;
– adjust net strap 9 so that it is taut.
– adjust the position of the second row
seats: ensure that the seatbacks do
not touch the luggage net.
Note: Notch 8 should be on the side of
the centre seat belt feed.

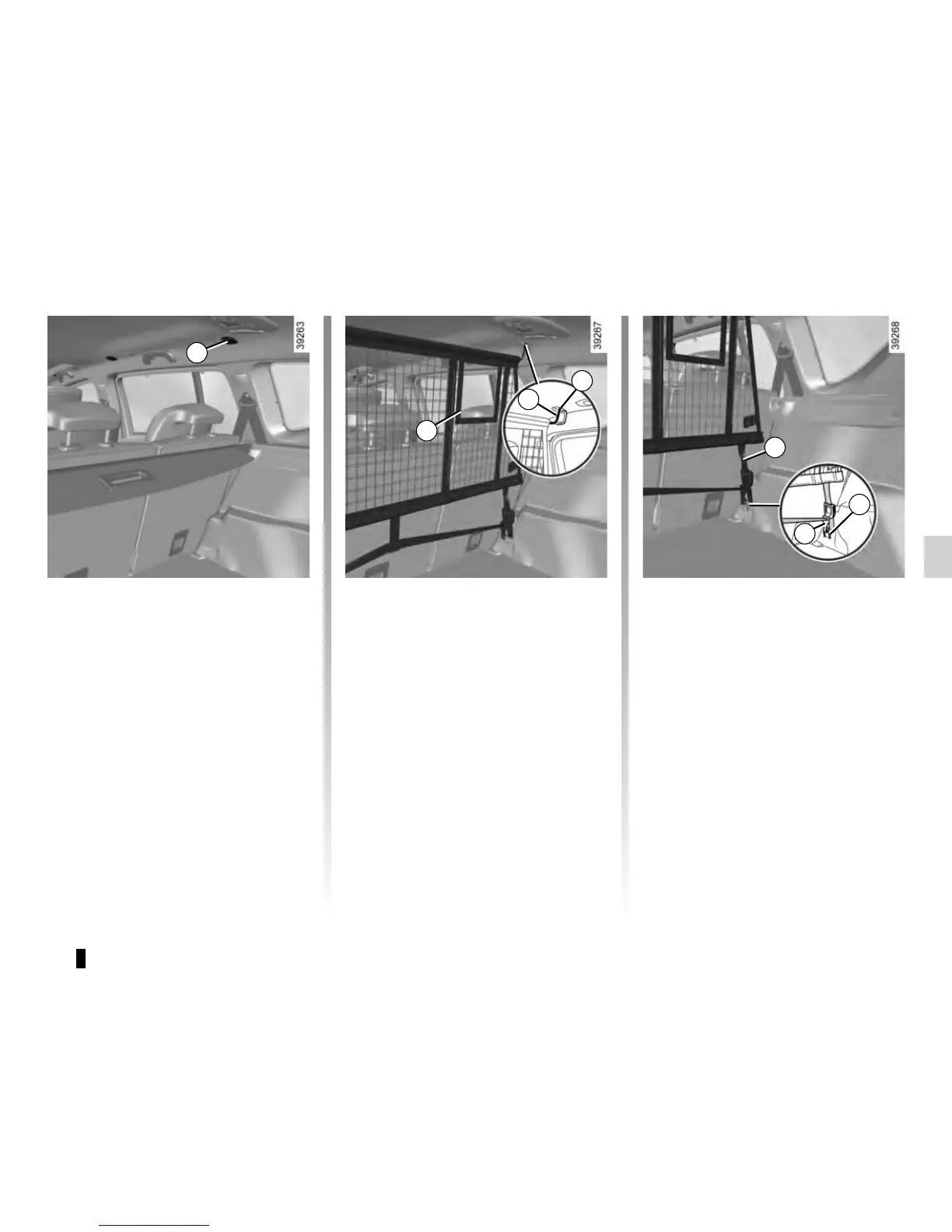

Fitting the luggage net
behind the rear seats
(behind the second row rear seats on
the 7-seater version)
Inside the vehicle on each side:
– push the second row seats fully
forward;
– lift cover 6 to access the luggage net
upper mounting rail;
– insert upper rod 7 for the net into the
rail;
11
9
8
6
7
