FRONT LIGHTS: changing bulbs (3/3)

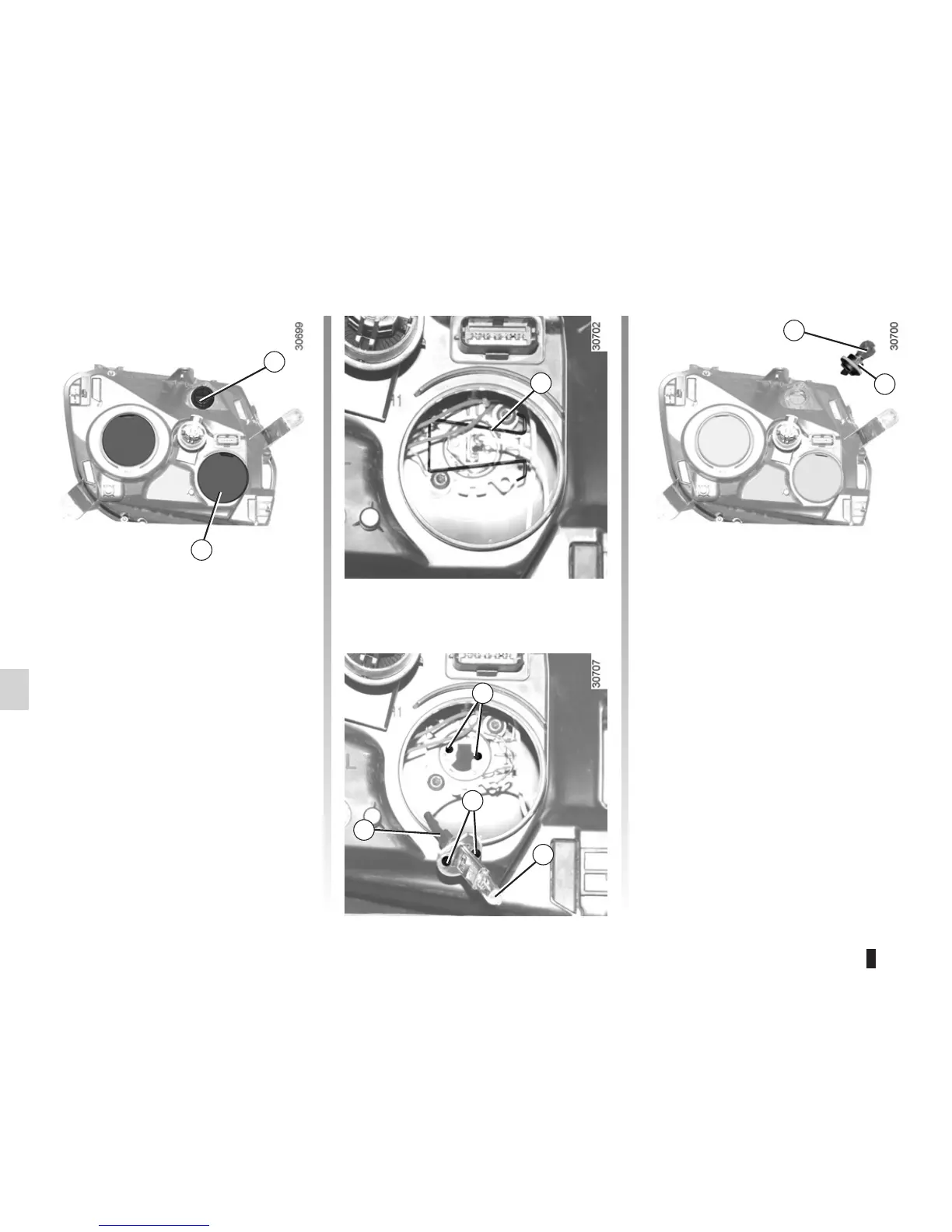

Main beam headlights
Remove cover B.
Release spring 9 and remove bulb 12
with connector 10.
Unclip the bulb from its connector.
Bulb type: H1.
Once the bulb has been replaced, be
sure to correctly reposition the two
lugs 13 in holes 11, as well as the
spring and the cover.
Direction indicator lights
Turn bulb holder C fully anticlockwise
and remove it.
Replace bulb 14.
Bulb type: PY21W.
Once the bulb has been replaced, be
sure to correctly reposition the two
lugs 15 in relation to the slots in the
light.
Turn the bulb holder fully clockwise.
