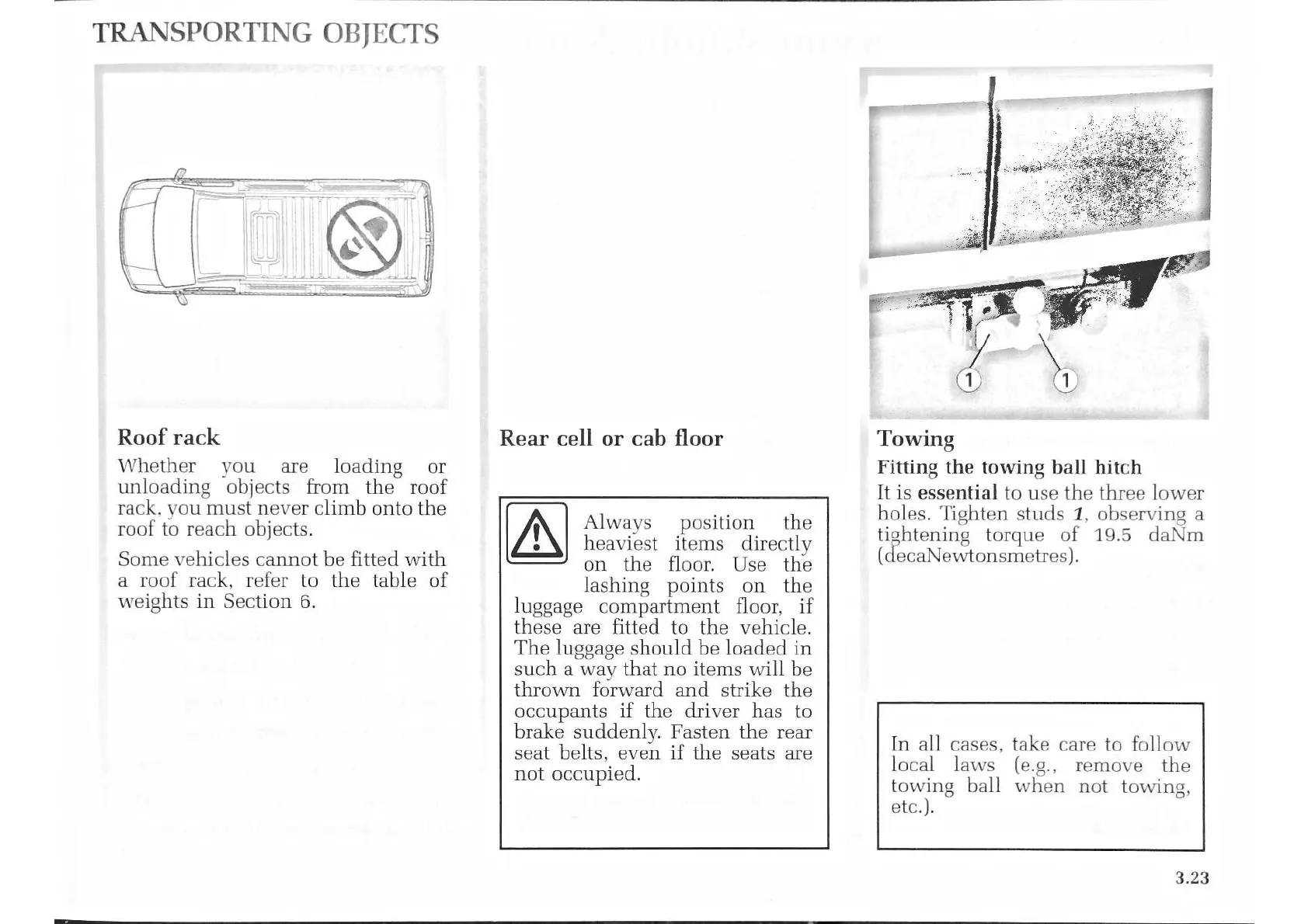

TRANSPORTING OBJECTS
Roof rack
Whether you are loading or
unloading objects from the roof
rack, you must never climb onto the
roof to reach objects.
Some vehicles cannot be fitted with
a roof rack, refer to the table of
weights in Section 6.
Rear cell or cab floor
Always position the
heaviest items directly
on the floor. Use the
lashing points on the
luggage compartment floor, if
these are fitted to the vehicle.
The luggage should be loaded in
such a way that no items will be
thrown forward and strike the
occupants if the driver has to
brake suddenly. Fasten the rear
seat belts, even if the seats are
not occupied.
4
y,
¥
\
t
@
a
Towing
Fitting the towing ball hitch
It is essential to use the three lower
holes. Tighten studs 1, observing a
tightening torque of 19.5 daNm
(decaNewtonsmetres).
In all cases, take care to follow
local laws (e.g., remove the
towing ball when not towing,
etc.).
3.23
