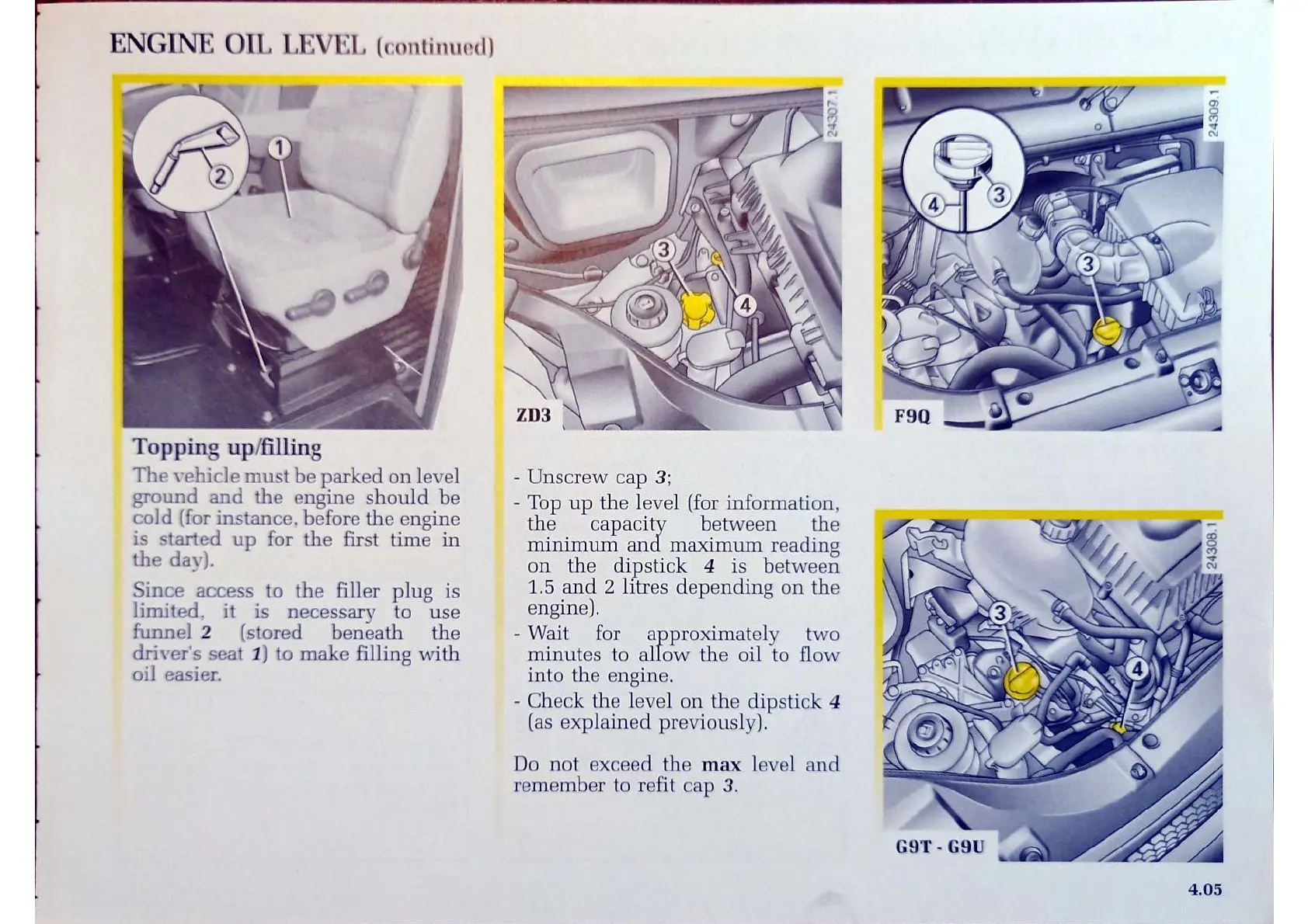

ENGINE OIL LEVEL (continued)
Topping up/filling
The vehicle must be parked on level
ground and the engine should be
cold (for instance, before the engine
is started up for the first time in
the day).
Since access to the filler plug is
limited, it is necessary to use
funnel 2 (stored beneath the
driver's seat 1) to make filling with
oil easier.
- Unscrew cap 3;
- Top up the level (for information,
the —capacit between _ the
minimum and maximum reading
on the dipstick 4 is between
1,5 and 2 litres depending on the
engine).
- Wait for approximately two
minutes to allow the oil to flow
into the engine.
- Check the level on the dipstick 4
(as explained previously).
Do not exceed the max level and
remember to refit cap 3.
