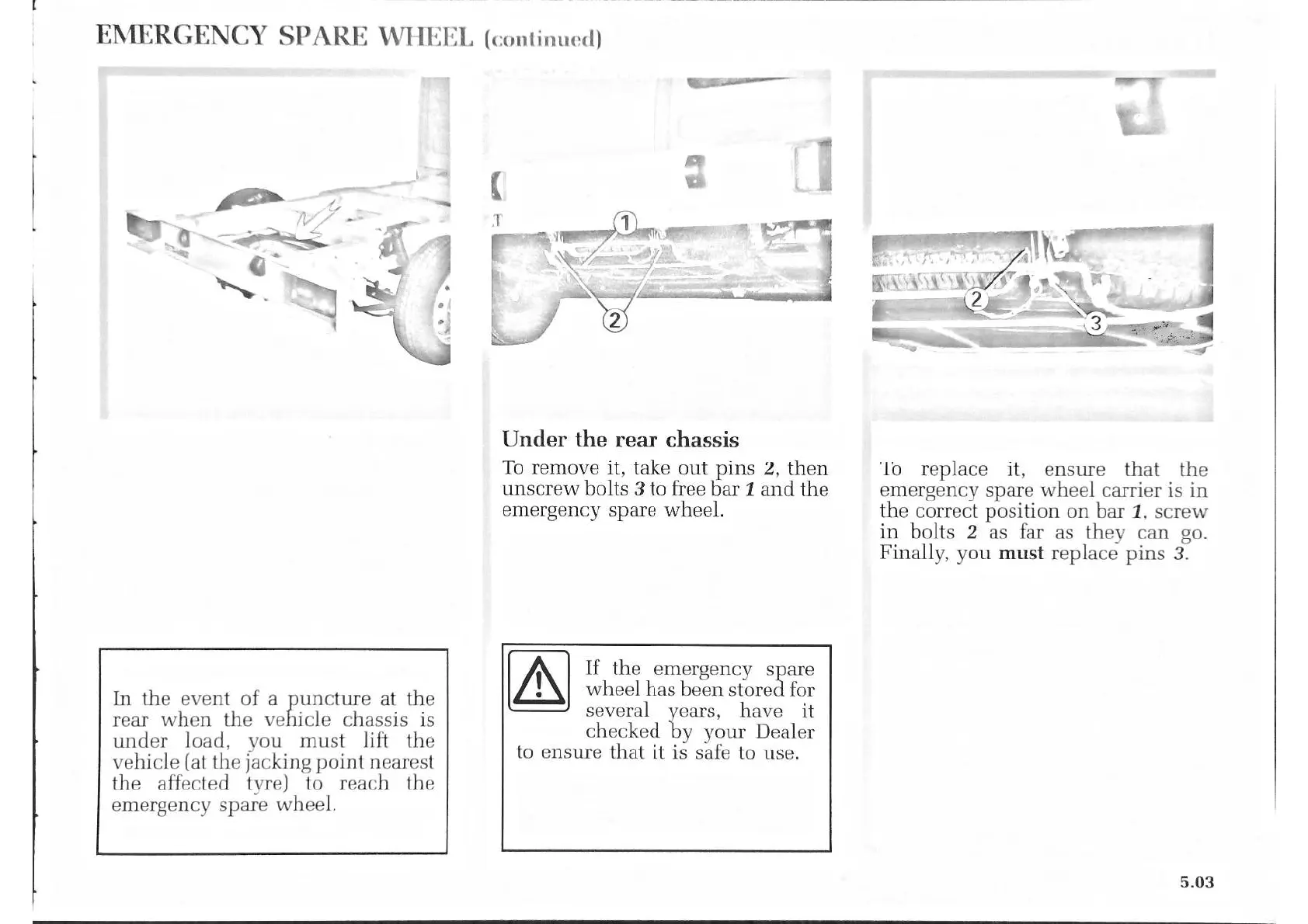

Under the rear chassis
To remove it, take out pins 2, then
unscrew bolts 3 to free bar 7 and the
emergency spare wheel.
In the event of a puncture at the
rear when the vehicle chassis is
under load, you must lift the
vehicle (at the jacking point nearest
the affected tyre) to reach the
emergency spare wheel.
If the emergency spare
wheel has been stored for
several years, have it
checked by your Dealer
to ensure that it is safe to use.
L
ar
FON g 5A) r J
peseae = 9
cre
To replace it, ensure that the
emergency spare wheel carrier is in
the correct position on bar 1, screw
in bolts 2 as far as they can go.
Finally, you must replace pins 3.
5.03
