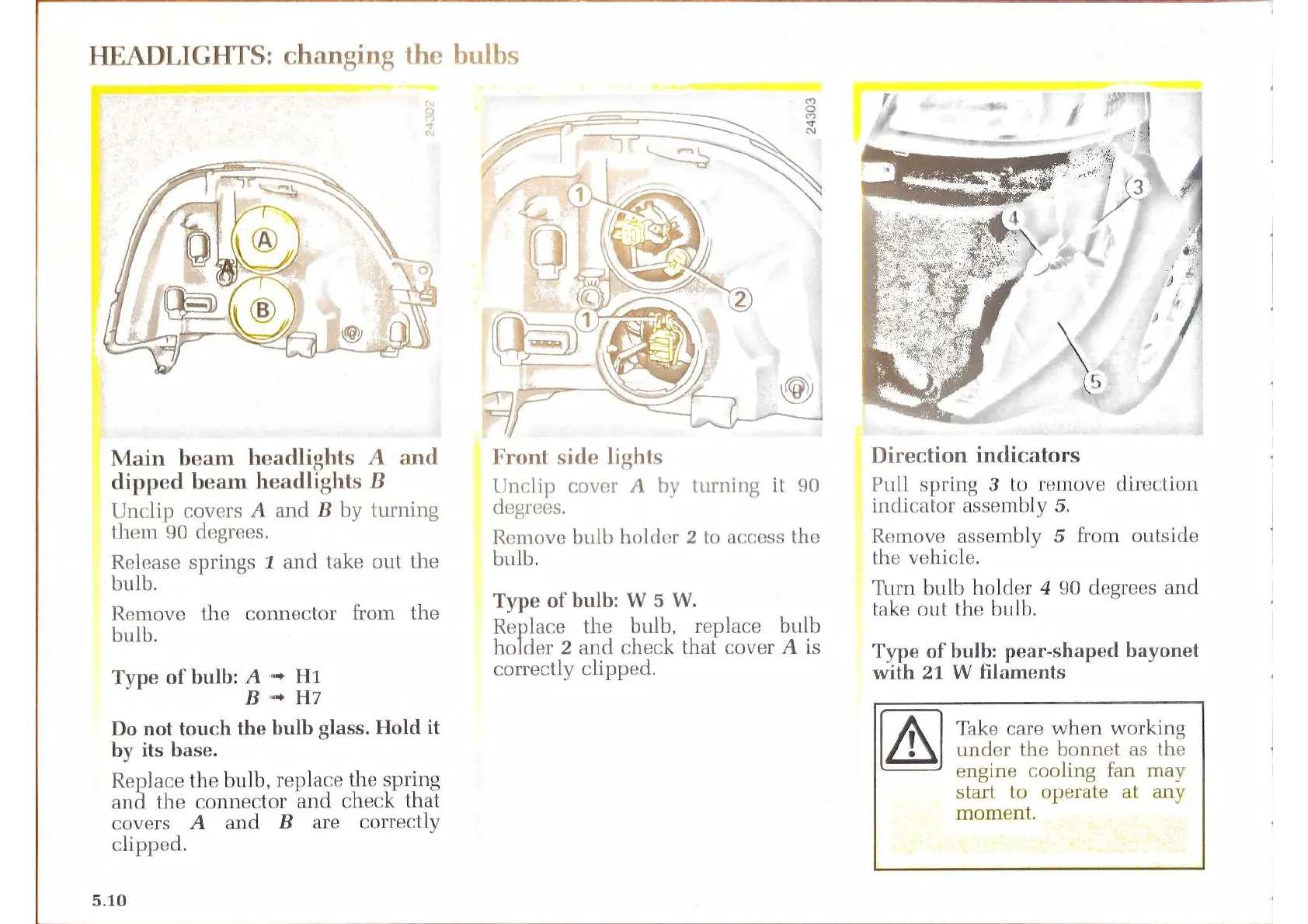

Renault Master Van 2004 - Lights and Bulbs Replacement

Main beam headlights A and
dipped beam headlights B
Unclip covers A and B by turning
them 90 degrees.
Release springs 1 and take out the
bulb.
Remove the connector from the
bulb.
Type of bulb: A > H1
B= H7
Do not touch the bulb glass. Hold it
by its base.
Replace the bulb, replace the spring
cad the connector and check that
covers A and B are correctly
clipped.
5.10
Front side lights
Unclip cover A by turning it 90
degrees.
Remove bulb holder 2 to access the
bulb.
Type of bulb: W 5 W.
Replace the bulb, replace bulb
holder 2 and check that cover A is
correctly clipped.
Direction indicators
Pull spring 3 to remove direction
indicator assembly 5.
Remove assembly 5 from outside
the vehicle.
Turn bulb holder 4 90 degrees and
take out the bulb.
Type of bulb: pear-shaped bayonet
with 21 W filaments
Take care when working
under the bonnet as the
engine cooling fan may
start to operate at any
moment.
