Renault Master Van 2004 - Wiper Blade Replacement

WINDSCREEN
WIPER
BLADES
Refitting a wiper blade
Refitting is the reverse of removal
and ensure the hook and the tab are
correctly secured.
Remember to clip screen washer
pipe 2 back into place.

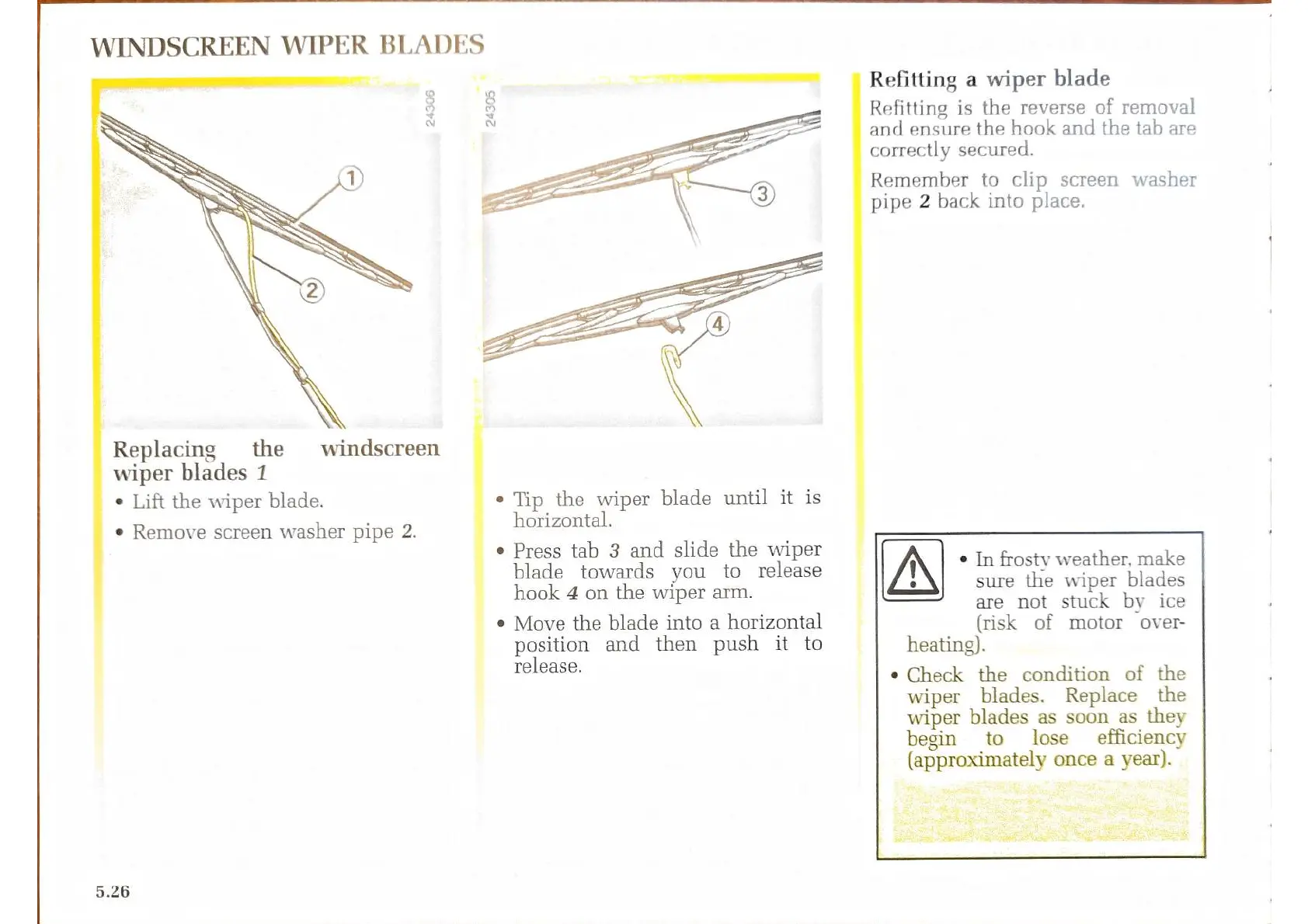

Replacing the windscreen
wiper blades 1
¢
Lift
the
wiper
blade.
¢
Tip
the
wiper
blade
until
it
is
horizontal.
e Press tab 3 and slide the wiper
blade towards you to release
hook 4 on the wiper arm.
¢ Move the blade into a horizontal
position and then push it to
release.
¢ Remove screen washer pipe 2.
¢ In frostv weather, make
sure the wiper blades
are not stuck by ice
(risk of motor over-
heating).
* Check the condition of the
wiper blades. Replace the
wiper blades as soon as they
begin to lose efficiency
(approximately once a year).
5.26
