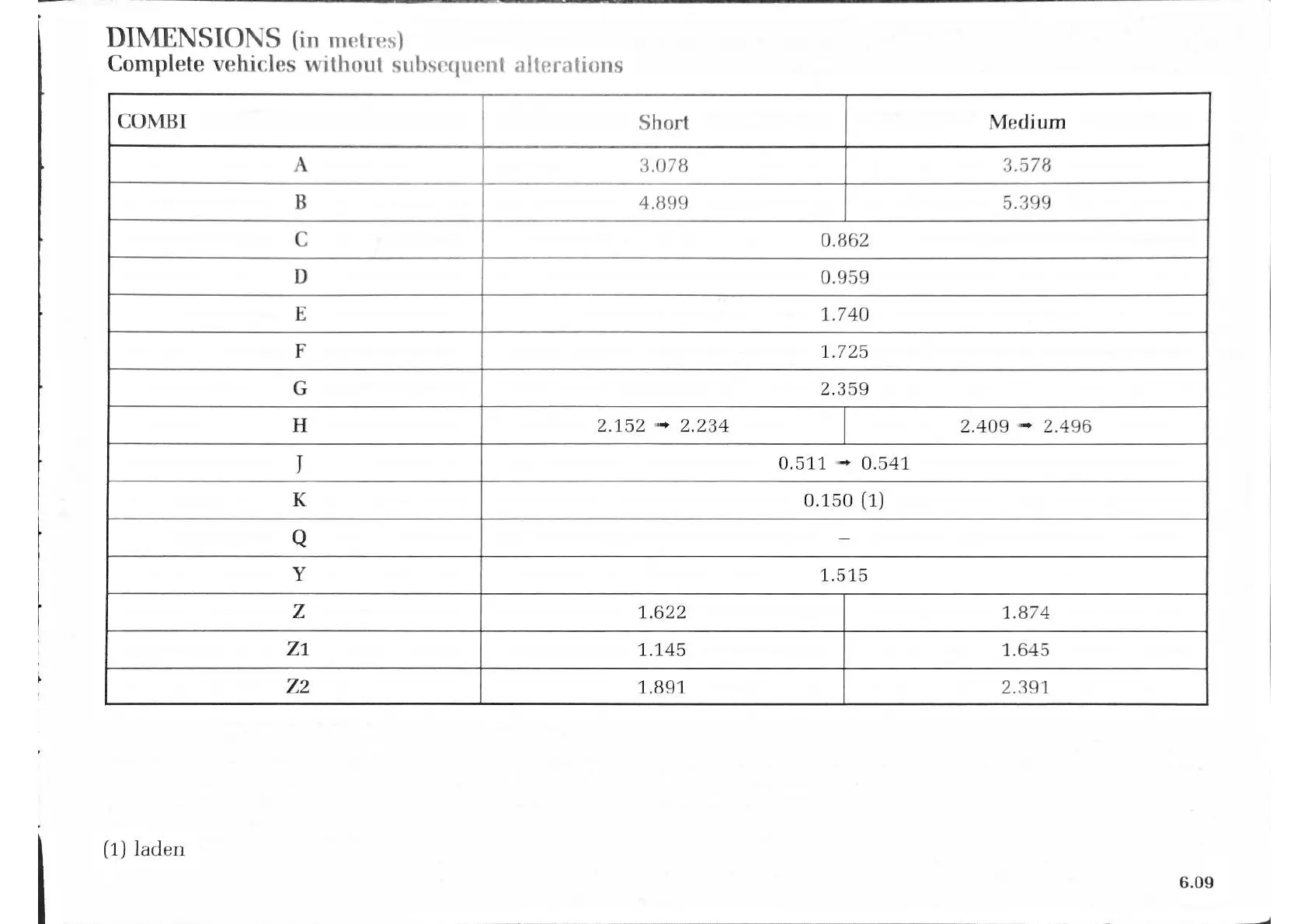

DIMENSIONS (in metres)
Complete vehicles without subsequent alterations
COMBI | Short Medium
A 3.078 3.578
B | 4.899 5.399
G | 0.862
D 0.959
E 1.740
F 1.725
G 2.359
H 2.152 > 2.234 2.409 — 2.496
J 0.511 ™ 0.541
K 0.150 (1)
Q _
Y 1.515
Z 1.622 1.874
Z1 1.145 1.645
Z2 1.891 2.391
(1) laden
