Renault Master Van 2004 - Page 22

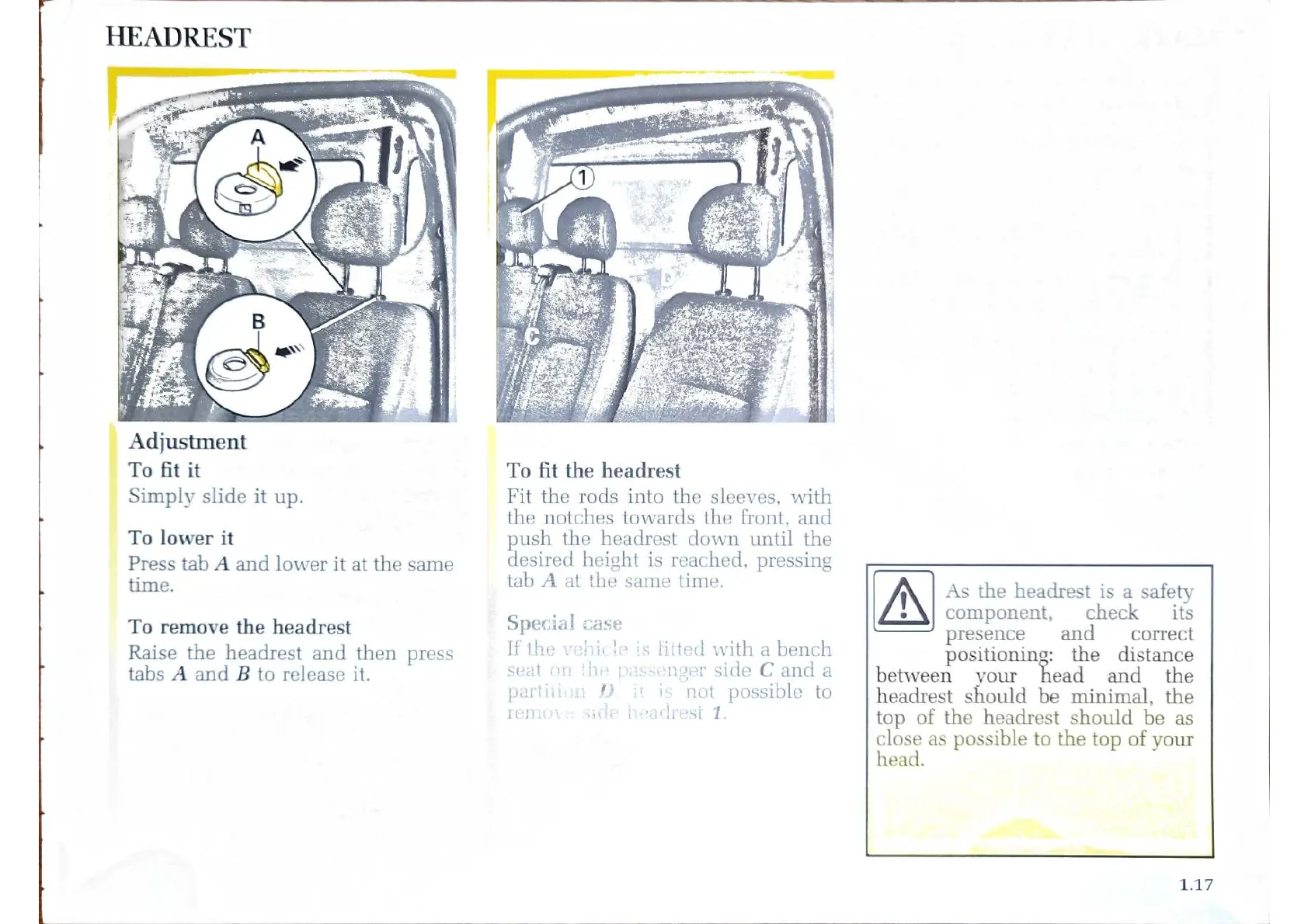

Adjustment
To fit it
Simply slide it up.
To lower it
Press tab A and lower it at the same
time.
To remove the headrest
Raise the headrest and then press
tabs A and B to release it.
To fit the headrest
Fit the rods into the sleeves, with
the notches towards the front, and
push the headrest down until the
desired height is reached, pressing
tab A at the same time.
Special case
If the vehicte is fi
seat a ne |
tted with a bench
r side C anda
part D is not possible to
ren i ractrest 1.
As the headrest is a safety
component, check its
presence and correct
positioning: the distance
between your head and_ the
headrest should be minimal, the
top of the headrest should be as
close as possible to the top of your
head.
Ly, ok
sa ————
1.17
