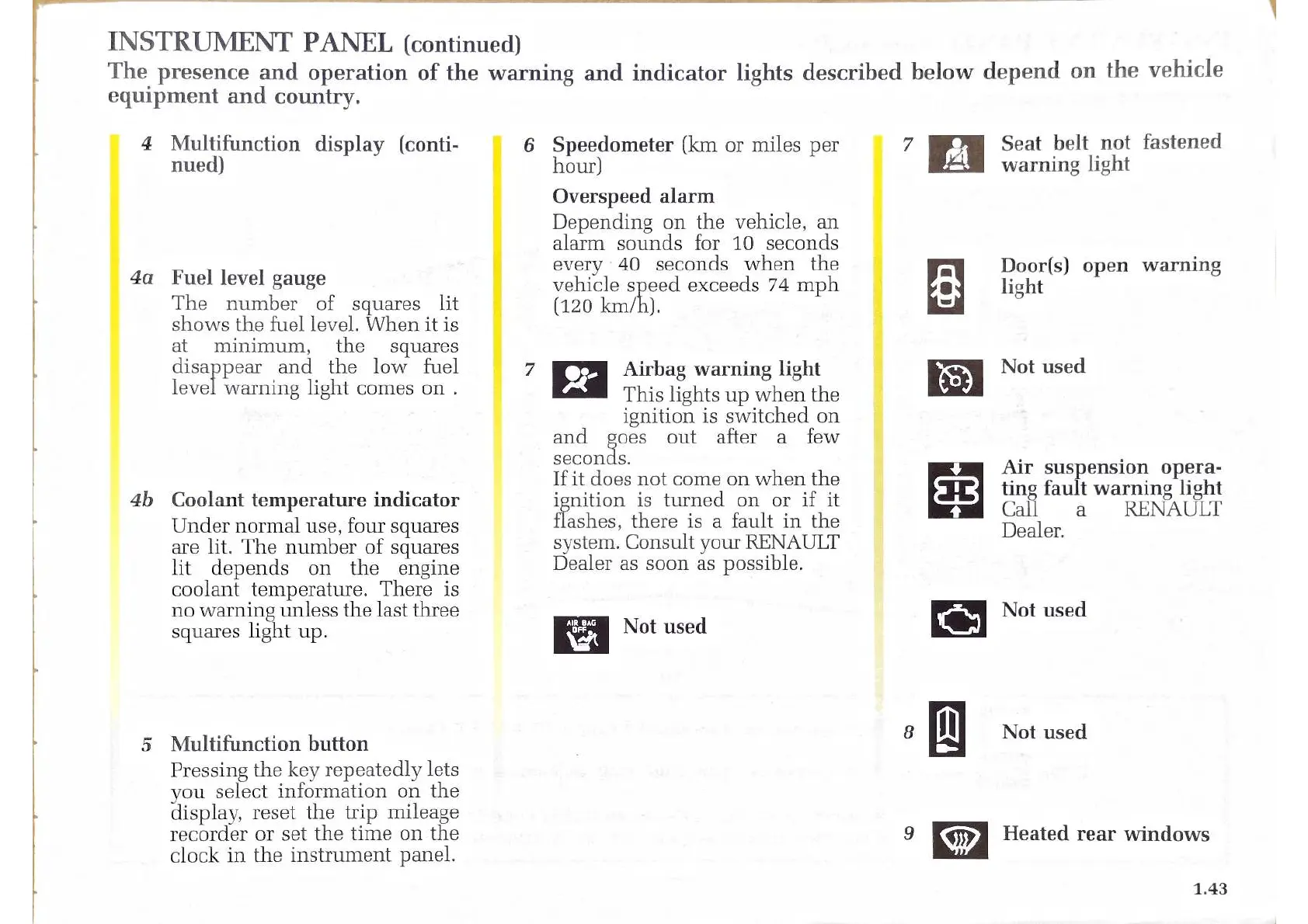

INSTRUMENT PANEL (continued)
The presence and operation of the warning and indicator lights described below depend on the vehicle
equipment and country,
4
4a
4b
Multifunction display (conti-
nued)
Fuel level gauge
The number of squares lit
shows the fuel level. When it is
at minimum, the squares
paapneat and the low fuel
level warning light comes on .
Coolant temperature indicator
Under normal use, four squares
are lit. The number of squares
lit depends on the engine
coolant temperature. There is
no warning unless the last three
squares light up.
Multifunction button
Pressing the key repeatedly lets
you select information on the
display, reset the trip mileage
recorder or set the time on the
clock in the instrument panel.
6 Speedometer (km or miles per
hour)
Overspeed alarm
Depending on the vehicle, an
alarm sounds for 10 seconds
every 40 seconds when the
vehicle speed exceeds 74 mph
(120 km/h).
Cz Airbag warning light
This lights up when the
ignition is switched on
and gous out after a few
seconds.
If it does not come on when the
ignition is turned on or if it
ashes, there is a fault in the
system. Consult your RENAULT
Dealer as soon as possible.
RES Not used
Less
ie
ig
Eg
re
‘A
‘a
Seat belt not fastened
warning light
Door(s) open warning
light
Not used
Air suspension opera-
ting fault warning light
Cal a RENAULT
Dealer.
Not used
Not used
Heated rear windows
1.43
