Renishaw XL Series User Manual

Linear
103
XL laser system
Angular
XL-80 hardware XL-80 applications

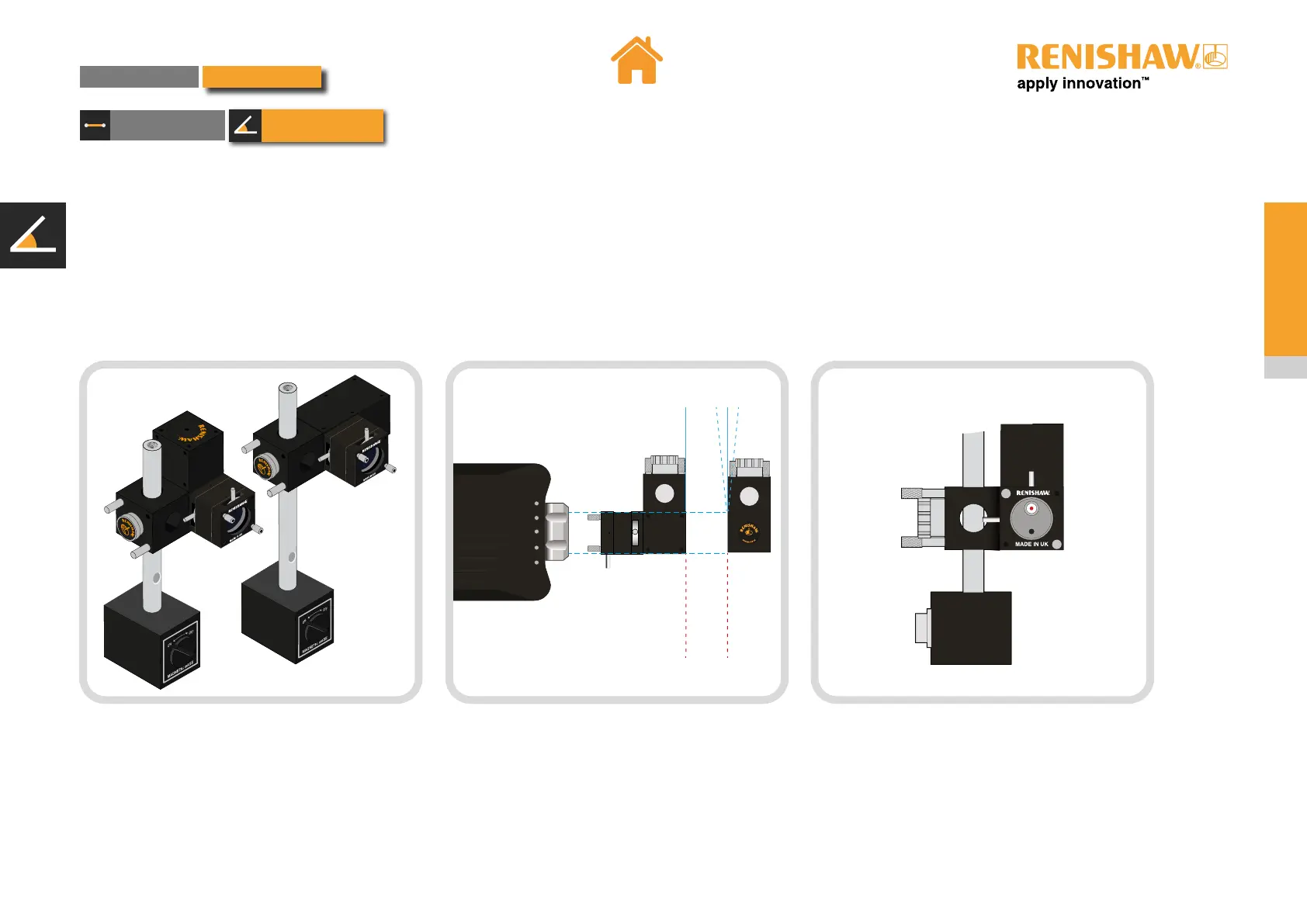

Mounting the optics
Mounting the angular interferometer
Assemble the interferometer assembly and mount the beam
steerer onto the input face of the beam splitter as shown.
Ensure that the levers are in their mid-position
Attach target to input aperture and align with the beam
A
N
G
U
L
A
R
I
N
T
E
R
F
E
R
O
M
E
T
E
R
M
A
D
E
I
N
U
K
285E09
M
A
D
E
I
N
U
K
M
A
D
E
I
N
U
K
Pitch
Yaw
Mount to the stationary element of the machine;
• As close as possible minimising the distance between the
optics
• Square to the axis
• Parallel to the retroreflector
Angular

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
