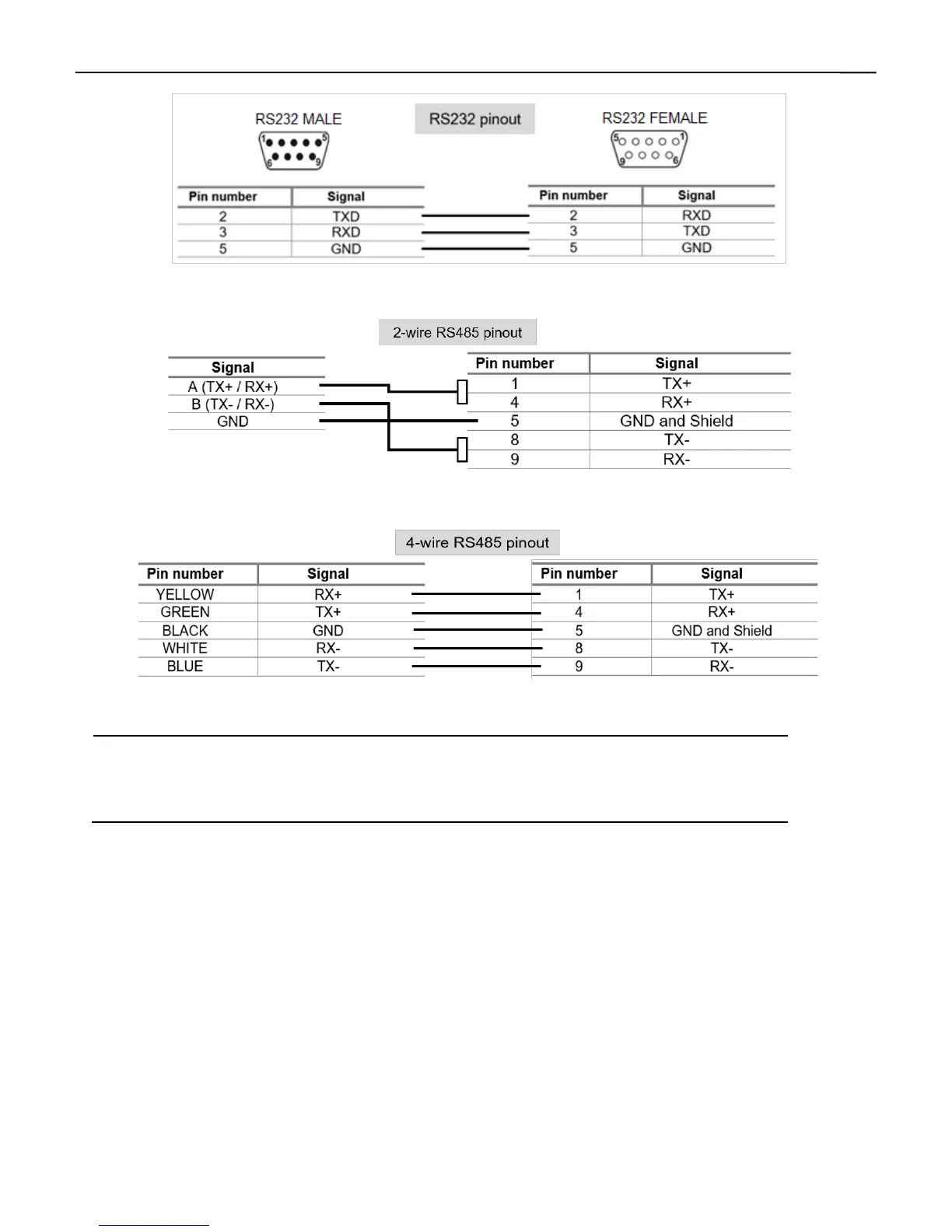

Renu Electronics FP4101T - RS232 and RS485 Pinouts

FlexiPanels
®
Advance HMI
Page 11 of 17
© Renu Electronics Pvt. Ltd.
ATTENTION
ATTENTION: DB9 port
 The 4.3” models have only one DB9 port that supports RS232 and RS422 / RS485
signal levels on different pins.
 If user wants to connect different devices on RS232 and RS422 / RS485 levels,
simultaneously with 4.3” HMI, then he must use ‘Y’ type cable.
