Reolink Argus 2 Instruction Manual

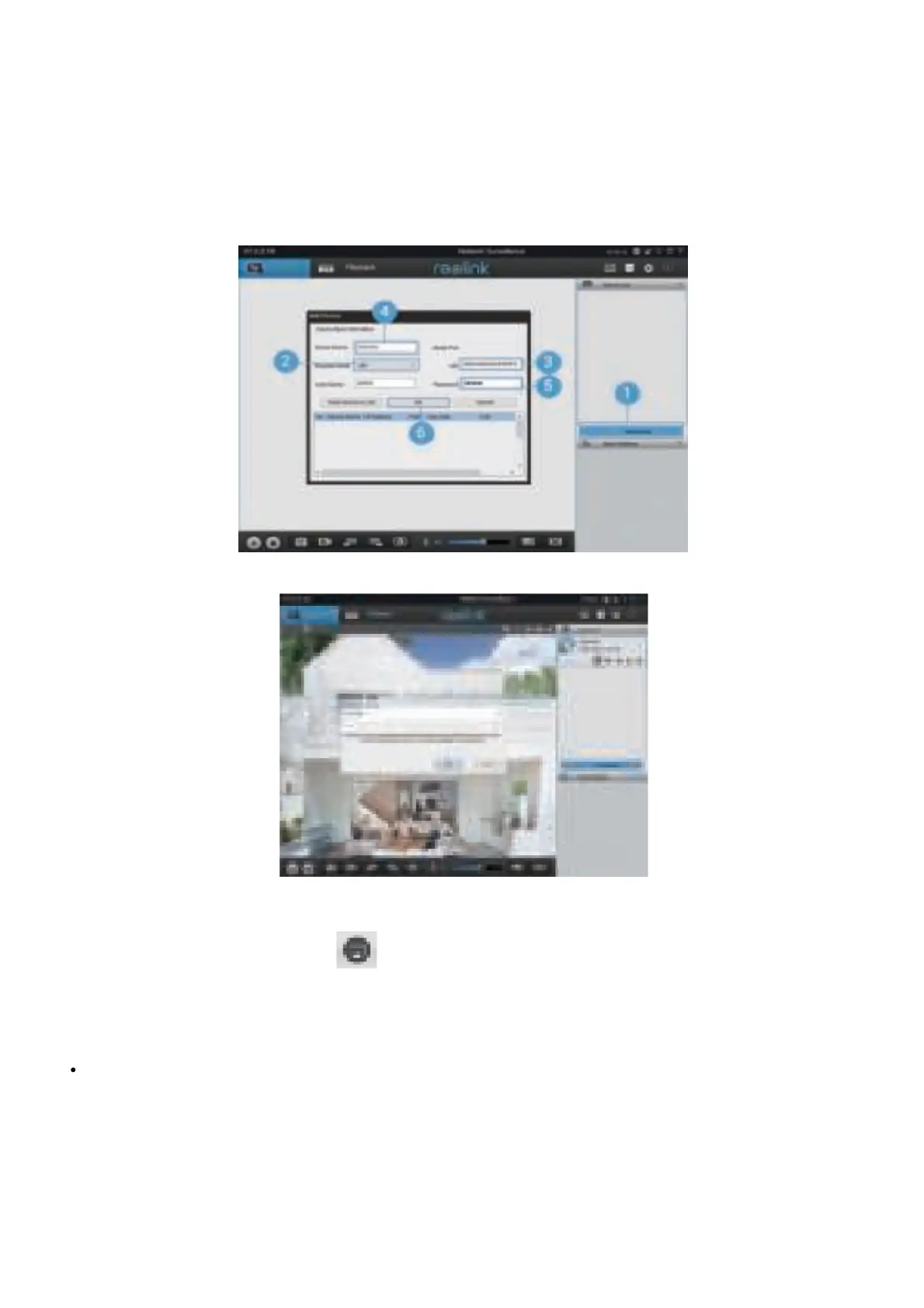

1. Click “Add Device” on the right-side menu.
2. Choose “UID” as the Register Mode.
3. Type in the UID of your camera.
4. Create a name for the camera displayed on Reolink Client.
5. Input the password created on Reolink App to log in.
6. Click “OK” to log in.
NOTICE: To save power, the camera will log out if no operation is conducted for about 5 minutes. You need to log
in to the camera again by clicking the “ ” button.
Attention for Camera Installation
PIR Sensor Detecting Distance
The PIR sensor has 3 sensitivity levels for your adjustment: Low/Mid/High.
Higher sensitivity offers a longer detecting distance. The default sensitivity of the PIR sensor is at “Mid”.

Reolink Argus 2 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Weatherproof	Yes
Mounting type	Desk/Wall
Product color	Black, White
Protection features	Freeze resistant, Heat resistant, Waterproof
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	10 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Battery life	0.5 year(s)
Battery voltage	3.63 V
Battery capacity	5200 mAh
Power source type	Battery
Battery technology	Lithium
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Mobile operating systems supported	Android, iOS
Number of cameras	1
Detection angle	120 °
Detection distance	9 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	59 mm
Width	65 mm
Height	119 mm
Weight	350 g
