01
Transmitter

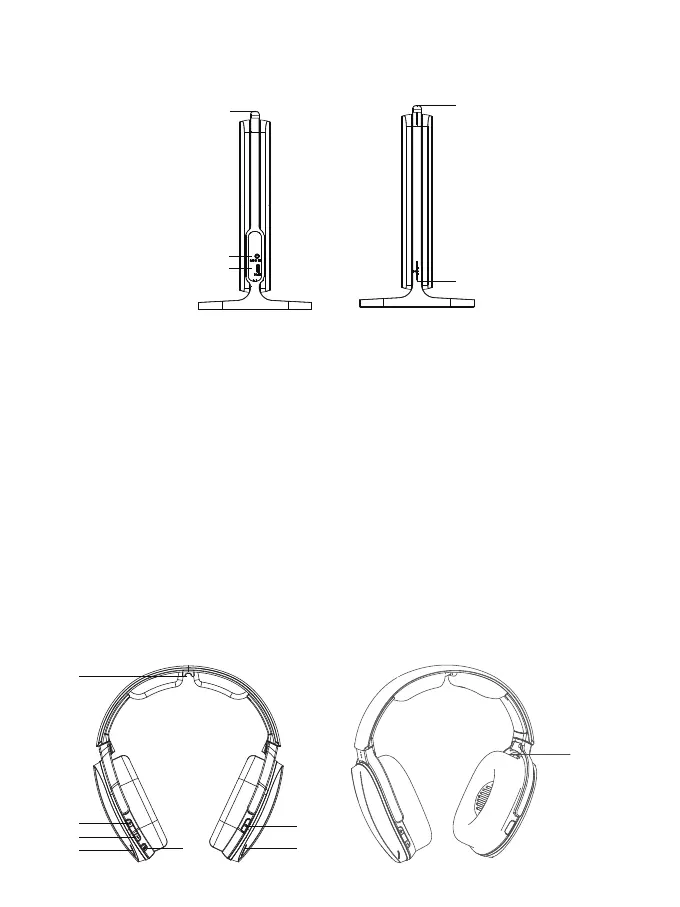

Schematic Diagram
Specifications
Size: 103X130x226mm
Appearance material: black ABS plastic
Weight: 225±20g
Working voltage: AC 110~240V
Working current: 550mA
Transmitting power: >80mW
Working frequency: 2.4GHz
Delay: <20ms
Communication distance: >30m (2.4G mode)
The maximum number of earphones supported: 2pcs
Headphones
Schematic Diagram
1. Headphones charging PIN contact
2. Φ3.5mmaudio interface (AUDIO IN)
3. Type-C interface
4. SINGNAL communication signal indicator light
5. CHARGE power signal indicator
1
4
5
2
3
SIGNAL
1
2
3
4
5
6
7
8
