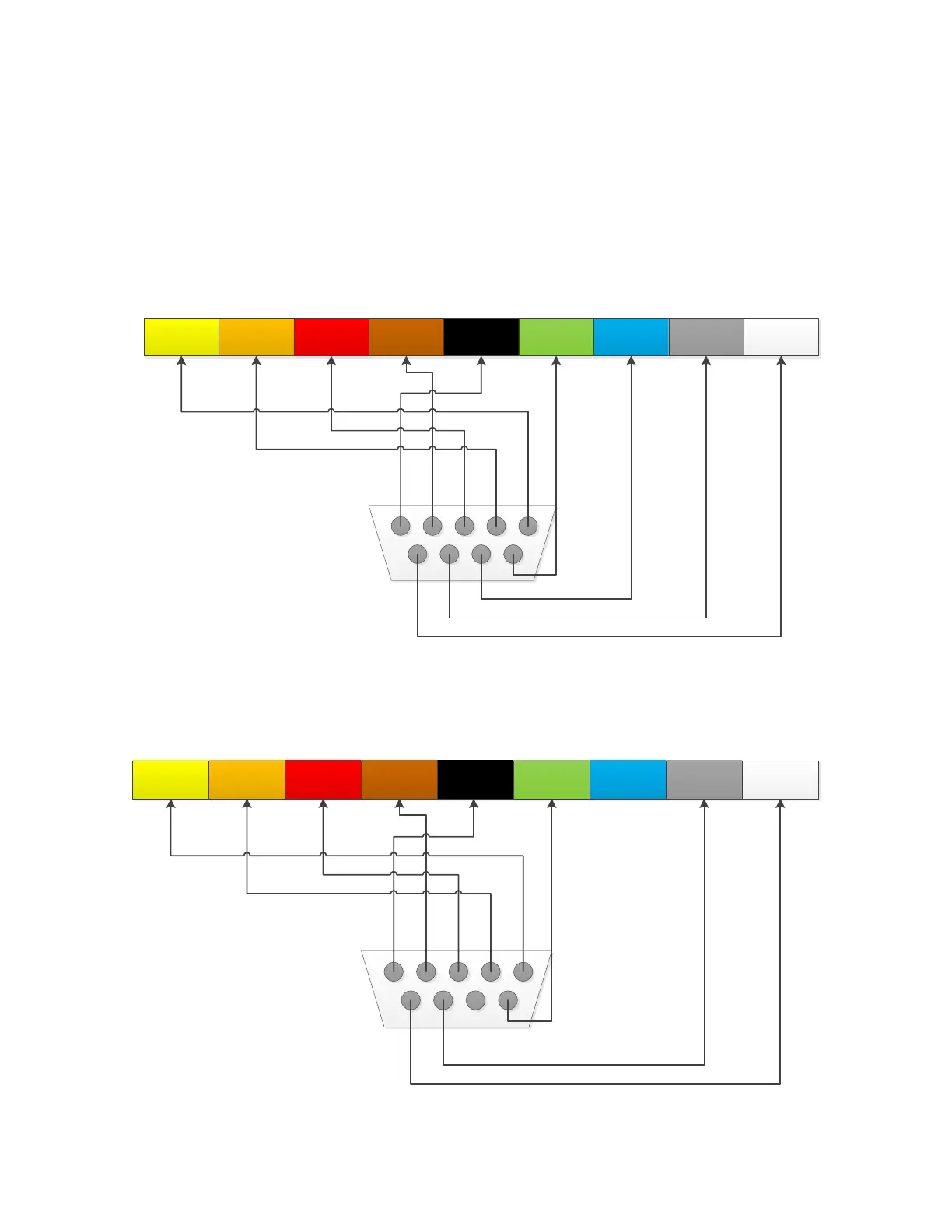

Cable wiring diagram

The default cable wiring follows the Atari joystick standard.

UP DOWN LEFT RIGHT BT3 BT1 VCC GND BT2

Joystick connector,

viewed from the end

of the cable

Standard PCB connector, viewed from above the PCB as mounted in the

ArcadeR (all PCB variants)

UP DOWN LEFT RIGHT VCC BT1 N/C GND BT2

Joystick connector,

viewed from the end

of the cable

Second PCB connector, viewed from above the PCB as mounted in the

ArcadeR (PCB 1.5c)
