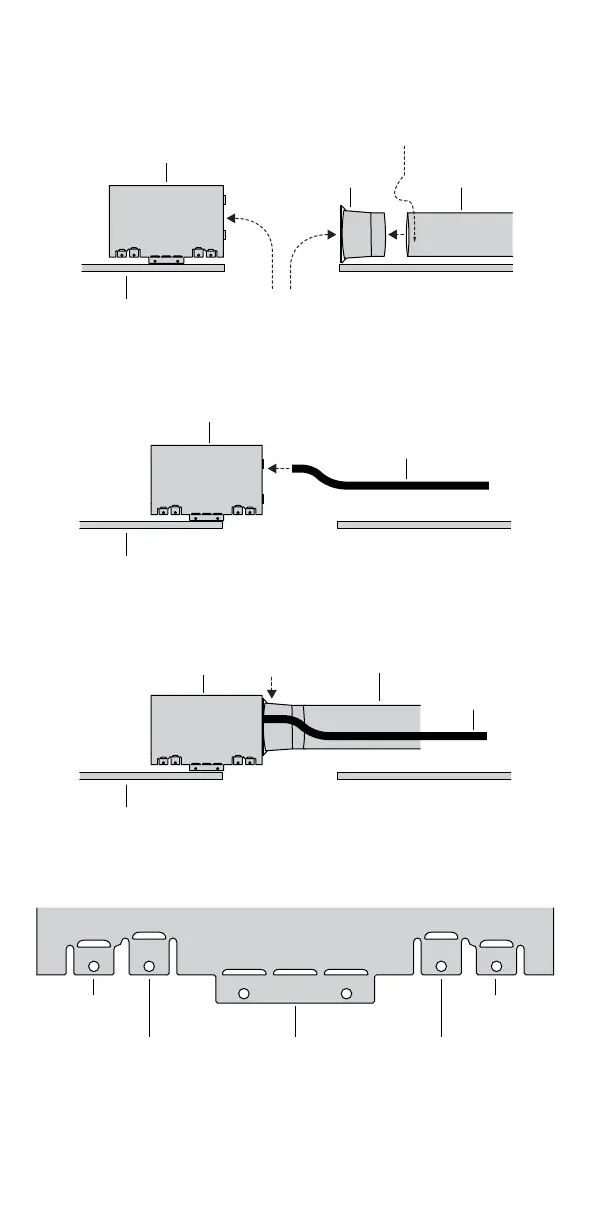

4.) Attach conduit with wiring to FAN.
conduit
FAN
6.) Select a set of holding tabs, depending on the thickness of your sheetrock.
5
/8 in (1.6 cm)
holding tab
1
/2 in (1.3 cm)
holding tab
final securing tab
5
/8 in (1.6 cm)
holding tab
1
/2 in (1.3 cm)
holding tab
5.) Reattach DAMPER to FAN inside the ceiling, damper should click into place
securely.
ducting
conduit
DAMPER
FAN
3.) Attach DAMPER to ducting. Tape DAMPER to ducting with duct tape. Set the
connected DAMPER and ducting in the ceiling opening, then set the FAN in the
ceiling opening as well.
ceiling
ducting
Connect DAMPER and
ducting with duct tape
Place FAN and DAMPER
inside CEILING opening
ceiling
ceiling
FAN
DAMPER
