REVENT RVS50 - Page 16

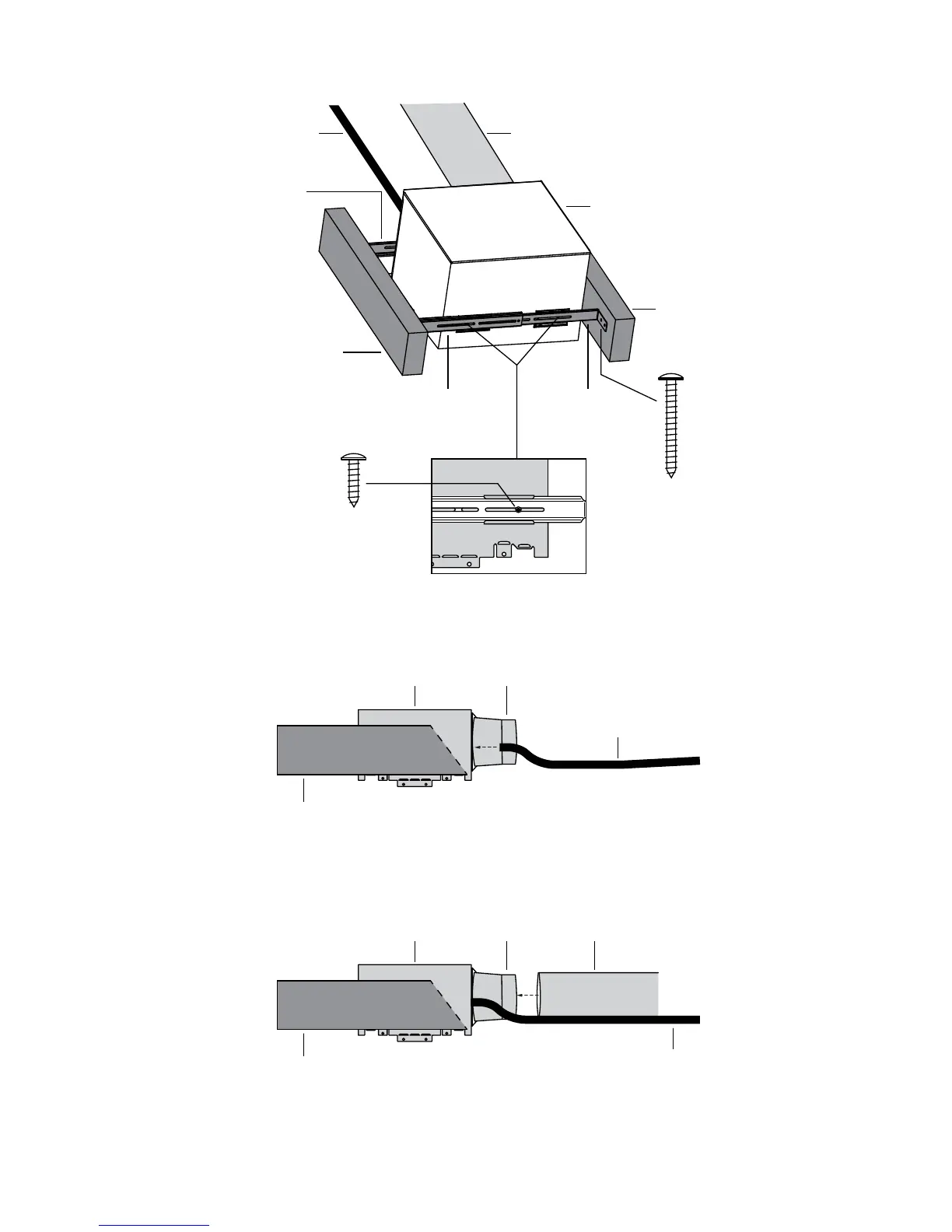

4.) Attach conduit with wiring to FAN.
conduit
DAMPERFAN
conduit
DAMPERFAN
5.) Attach DAMPER to ducting.
Attach DAMPER to
ducting with duct tape
framing joist
framing joist
FAN
SHORT
BRACKET
(can be
cut down)
framing joist
framing joist
SHORT
BRACKET
LONG
BRACKET
conduit
ROUNDHEAD
WOOD SCREW
Qty:6
(use 2 per
bracket)
1
/2" x #6
BRACKET
SECURING
SCREW
Qty:3
3.) Attach FAN to ceiling joists with BRACKETS using ROUNDHEAD WOOD
SCREWS, then install the sheetrock for your ceiling.
15
ducting
ducting
