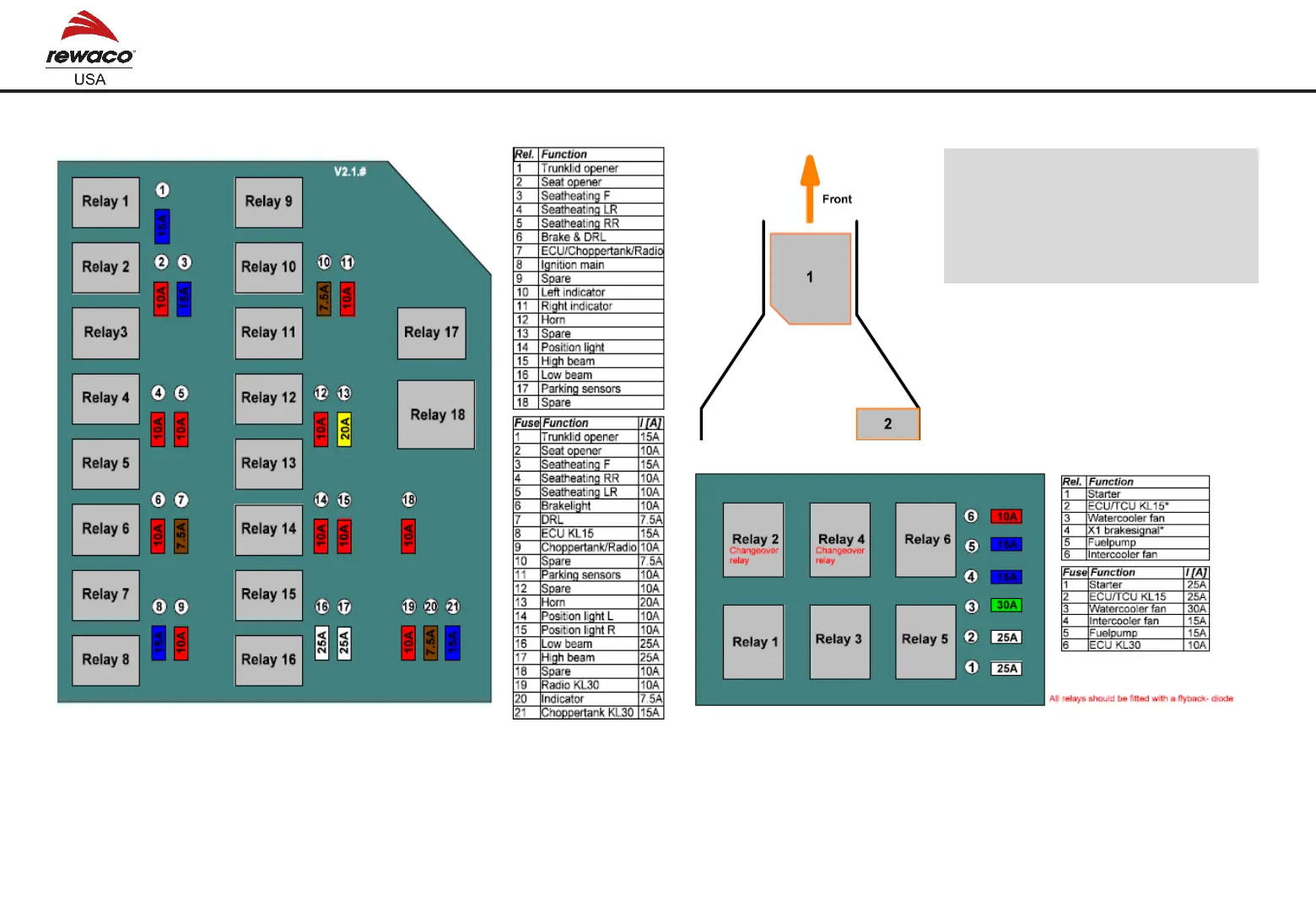

Electrical / Fuses - Layout 2
Access is via the folded-up driver's seat. To open the driver's seat, follow the instructions on page 30.
Box 1 and Box 2 are in the front frame of the trike under the driver's seat, Box 3 is in the rear frame of the trike, on the right above the fuel tank. To access Box 3,
the body must be opened. See page 38
In the event of a fuse defect, contact a rewaco dealer.
As a rule, a defect in the vehicle electrical system must be repaired by a rewaco Dealer.
48
If the fault cannot be rectified by
replacing a defective fuse, the
electrical system must be checked by
a rewaco dealer as soon as possible.
Replacing a defective fuse several
times can lead to further damage.
Faults and malfunctions
