32/60 Installation
Bosch Rexroth AG, A6VE Series 65 and 71, RE 91616-01-B/10.2014
1
2

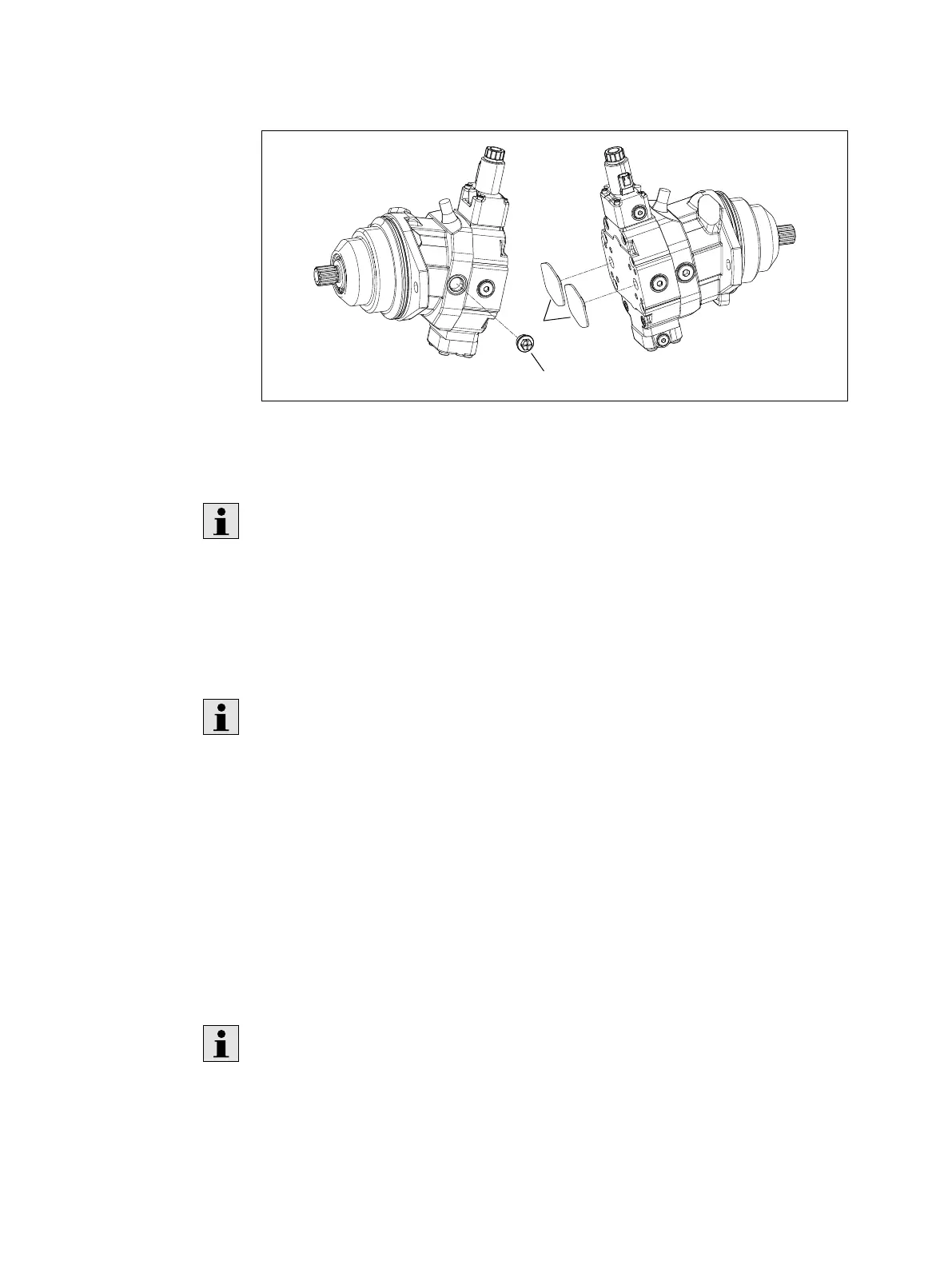

Fig. 9: Remove transport protection
1 Protective covers 2 Protective plugs/threaded plugs
Ports intended for connecting lines are covered by protection plugs or threaded
plugs, which serve as transport protection. All ports required for functional
operation must be connected (see Table 13 “Ports A6VE Series 65” and Table 14
“Ports A6VE Series 71” on page 36 and Table 15 “Ports A6VE Series 65 and 71
with integrated counterbalance valve (BVI)” on page 37). Failure to comply with
this could lead to malfunctions or damage. If a port is not connected, it must be
plugged with a threaded plug because protective plugs are not pressure-resistant.
Setting screws are protected against unauthorized resetting by means of
protective caps. Removal of the protective caps will void the warranty. If you need
to change settings, contact your responsible Bosch Rexroth Service partner
(for address, see chapter 10.5 “Spare parts” on page 49.
7.4.8 Hydraulically connecting the axial piston unit
The machine/system manufacturer is responsible for dimensioning the lines. The
axial piston unit must be connected to the rest of the hydraulic system in accordance
with the hydraulic circuit diagram of the machine/system manufacturer.
The ports and fixing threads are designed for the peak pressure specified in the data
sheet. The machine/system manufacturer must ensure that the connecting elements
and lines correspond to the specified application conditions (pressure, flow,
hydraulic fluid, temperature) with the necessary safety factors.
Connect only hydraulic lines that are appropriate for the axial piston unit port
(pressure level, size, system of units).
