Rexroth IndraDyn A Type Codes 6-13
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MAF100C- 0150-FQ-S0 -AP0 -05 -N1
9. Holding brake
9.1 without holding brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0
9.2 electrically-released, 24 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
9.3 electrically-clamped, 30 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . . = 5
10. Mounting style
10.1 Flange mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 05
10.2 Flange and foot mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 35
11. Bearings
11.1 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
11.2 High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = H
11.3 for clutch mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = R
12. Vibration severity grade
12.1 R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
12.2 S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 2
12.3 S1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 3
Note:
Looking from front onto driven shaft (see picture 1)
Electrical connection "F" and "K" at mounting style "35" is only available on top
Bearings "H" s only available with length "B" and "C", shaft "H" and holding brake "0"
Vibration severity grade "3" is only available with bearings "N"
3
2
1
Picture 1
Position of power connection = top
B-side
right
left
A-side
3
4
4
RNC-41181-000_NOR_E_D0_2004-11-154.EPS

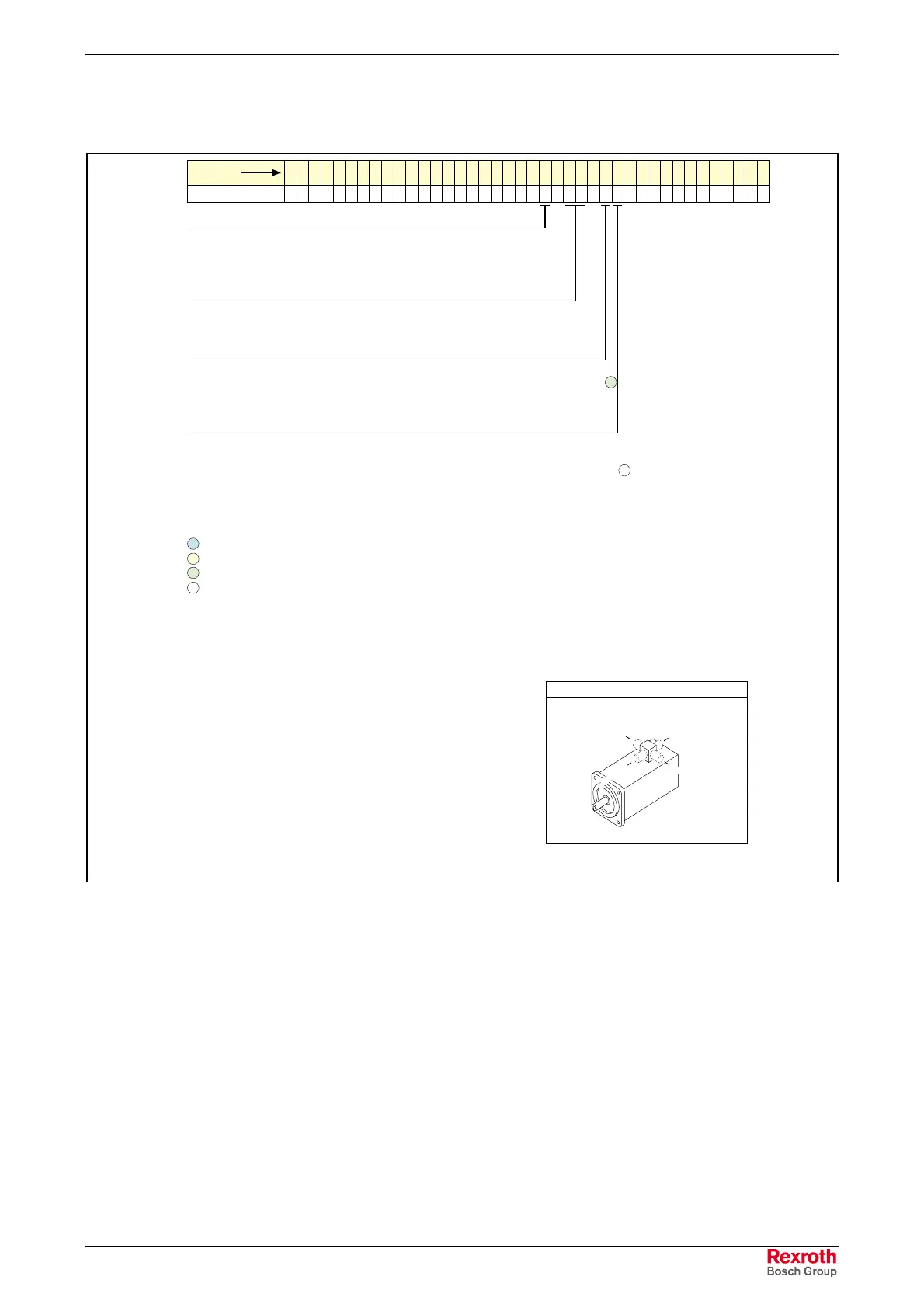

Fig. 6-13: Type code for MAF100 (2/2)
