6-14 Type Codes Rexroth IndraDyn A
6.7 Type Code for MAF130
1. Product
1.1 MAF . . . . . . . . = MAF
2. Size
2.1 130 . . . . . . . . . . . . . . = 130
3. Length
3.1 Lengths . . . . . . . . . . . . = B, C, D
4. Winding code
4.1 MAF130B = 0050, 0100, 0150, 0200, 0250
4.2 MAF130C = 0050, 0100, 0150, 0200, 0250
4.3 MAF130D = 0050, 0100, 0150, 0200, 0250
5. Cooling mode
5.1 Liquid cooling with connection thread 1/4" = FQ
5.2
Liquid cooling with rapid action coupling 1/4"
= FR
6. Motor encoder
6.1 Singleturn absolute encoder with 512 increments = S0
6.2 Singleturn absolute encoder, EnDat2.1, with 2048
increments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = S2
6.3 Multiturn absolute encoder with 512 increments. . . = M0
6.4 Multiturn absolute encoder, EnDat2.1, with 2048
increments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = M2
6.5 Incremental encoder with 2048 increments . . . . . . = C0
6.6 without motor encoder . . . . . . . . . . . . . . . . . . . . . . = N0
7. Electrical connection
7.1 Connector to A-side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = A
7.2 Connector to B-side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = B
7.3 Connector to the right . . . . . . . . . . . . . . . . . . . . .. . . . . . . . = R
7.4 Connector to the left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = L
7.5 Terminal box connection, A-side . . . . . . . . . . . . . . . . . . . . = F
7.6 Terminal box connection, B-side . . . . . . . . . . . . . . . . . . . . = K
8. Driven shaft
with key
plain balanced with ent. balanced with half
shaft key key
8.1
without shaft sealing ring
HQ L
8.2
with shaft sealing ring
GP K
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MAF130B- 0150-FQ-M0 - LH0- 05 -N1
3
2
1
3
RNC-41181-300_NOR_E_D0_2004-11-223.EPS

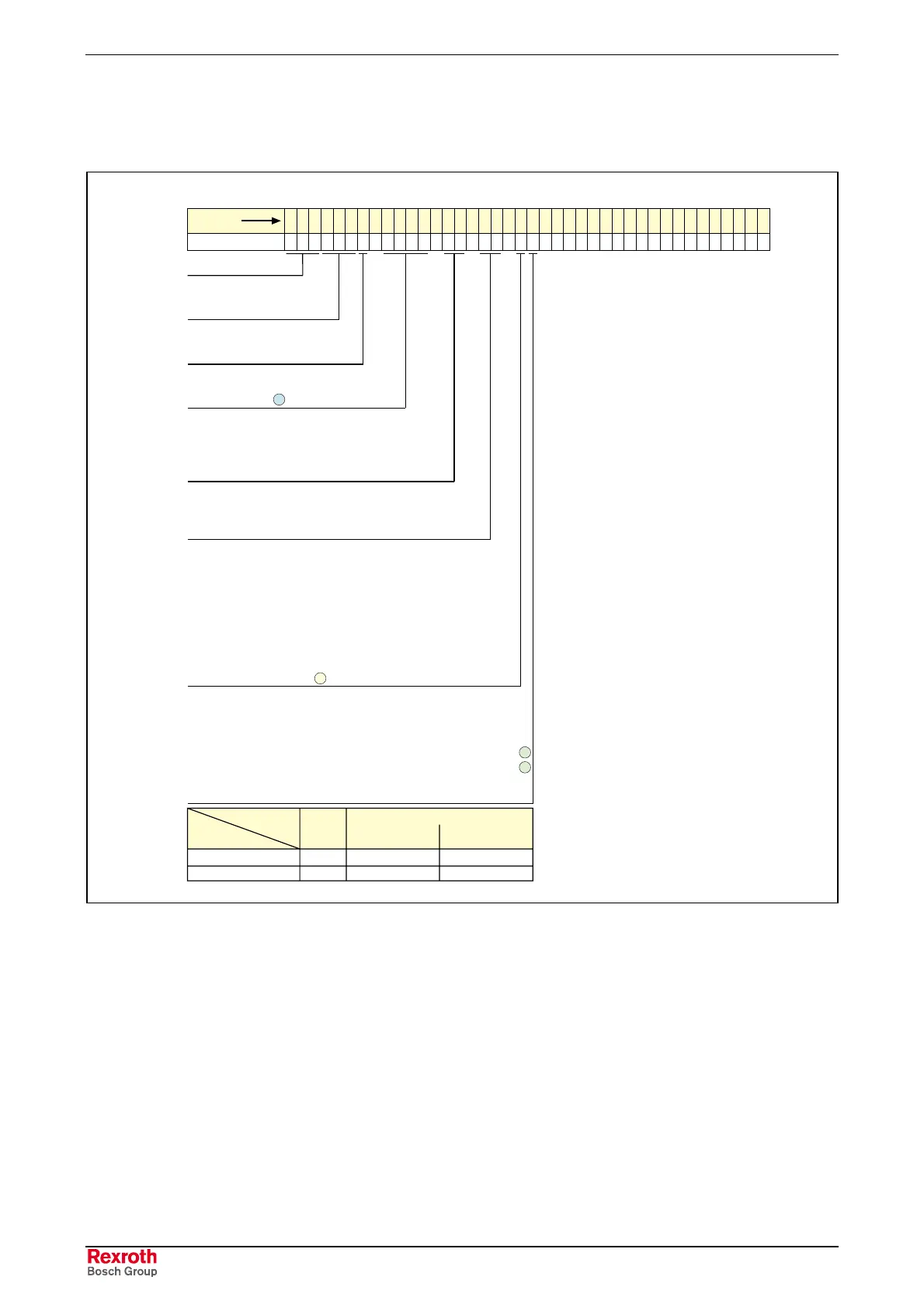

Abb. 6-14: Type code for MAF130 (1/2)
