Rexroth IndraDyn A Type Codes 6-15
9. Holding brake
9.1 without holding brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0
9.2 electrically-released, 80 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
9.3 electrically-clamped, 100 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . . = 5
10. Mounting style
10.1 Flange mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 05
10.2 Flange and foot mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 35
11. Bearings
11.1 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
11.2 High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = H
11.3 for clutch mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = R
11.4 reinforced bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = V
12. Vibration severity grade
12.1 R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
12.2 S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 2
12.3 S1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 3
Note:
Winding code "0250" with length "D" is only available with electrical connection "F" and "K"
Looking from front onto driven shaft (see picture 1)
Electrical connection "F" and "K" at mounting style "35" is only available at the top
Bearings "H" is only avalable with length "B" and "C", shaft "H" and holding brake "0"
Vibration severity grade "3" is only available with length "B" and "C" and bearings "N", "H" and "R"
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MAF130B- 0150 -FQ-M0 - LH0- 05 -N1
Picture 1
Position of power connection = top
B-side
right
left
A-side
3
2
4
5
1
4
5
RNC-41181-300_NOR_E_D0_2004-11-224.EPS

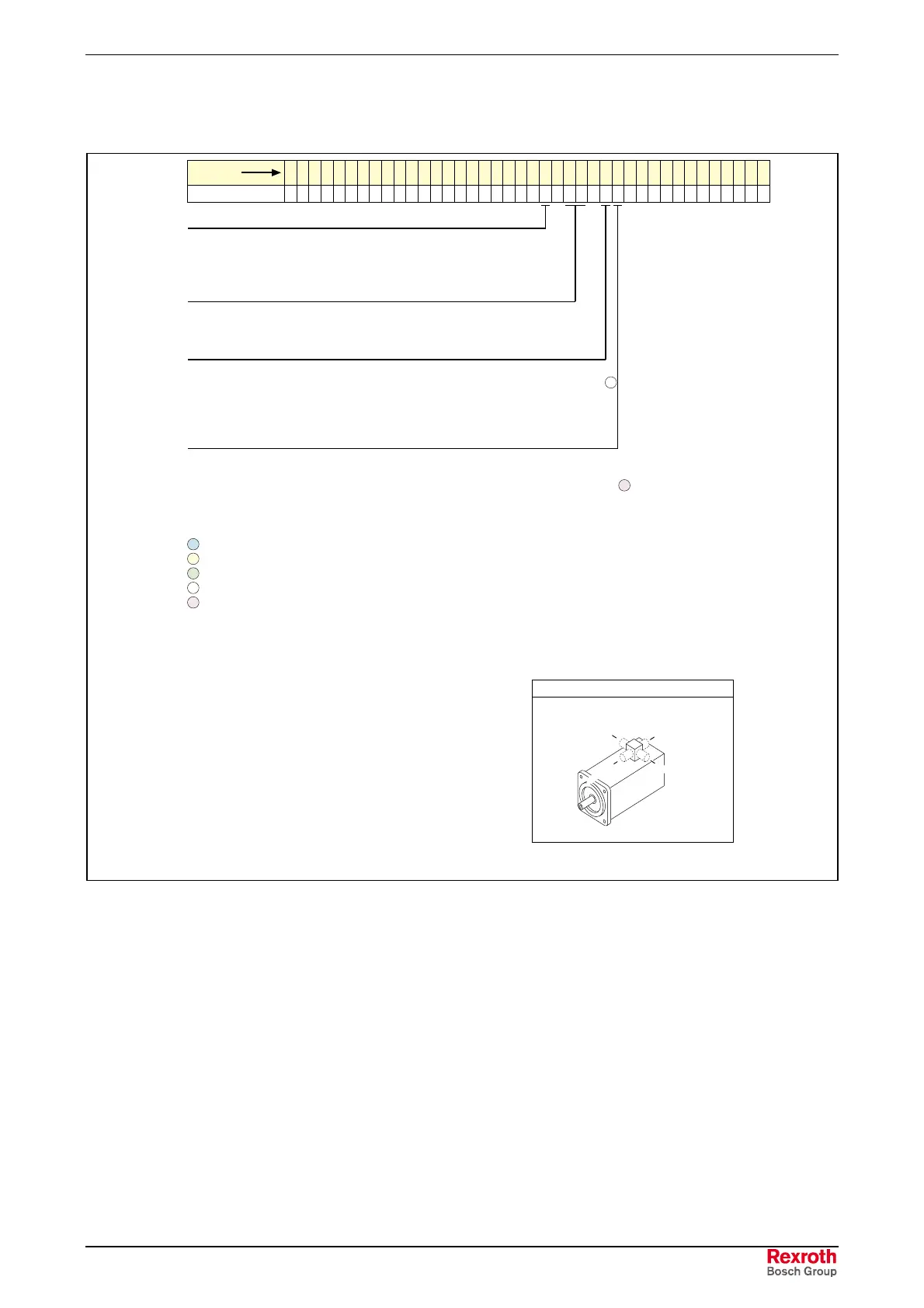

Fig. 6-15: Type code for MAF130 (2/2)
