10-20 MKD112 Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
below left right
Possible arrangements:
(looking from front onto motor shaft)
156
220
C
190
33
Dimensions
Dim. C
Motor
MKD112A-xxx ---
MKD112B-xxx 150
MKD112C-xxx 190
MKD112C-058 198
MKD112D-xxx 190
blower_rad112_en.fh7

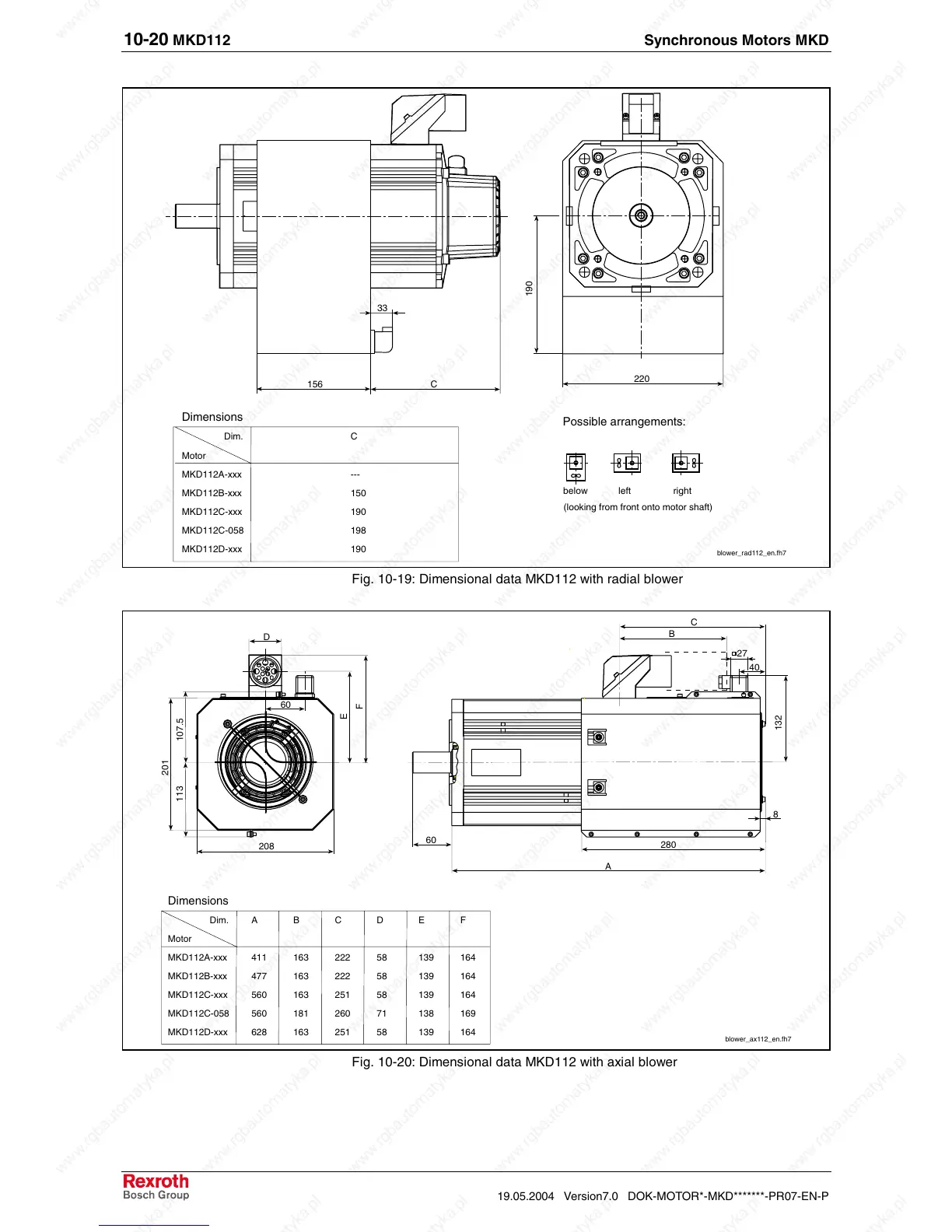

Fig. 10-19: Dimensional data MKD112 with radial blower
blower_ax112_en.fh7
60
60
208
280
8
132
40
E
F
D
107.5
113
201
B
C
27
A
Dimensions
Dim. A B C D E F
Motor
MKD112A-xxx 411 163 222 58 139 164
MKD112B-xxx 477 163 222 58 139 164
MKD112C-xxx 560 163 251 58 139 164
MKD112C-058 560 181 260 71 138 169
MKD112D-xxx 628 163 251 58 139 164
Fig. 10-20: Dimensional data MKD112 with axial blower
