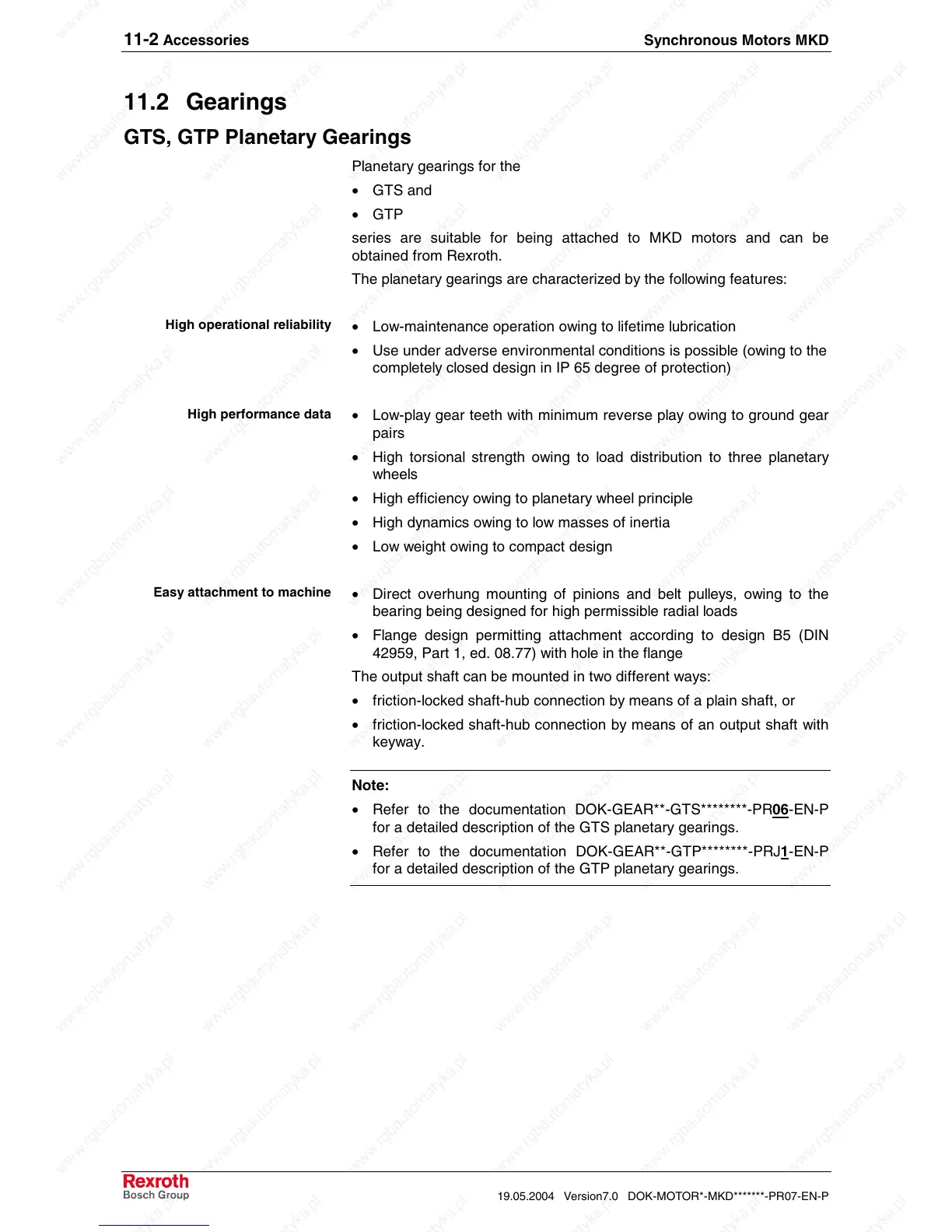

11-2 Accessories Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
11.2 Gearings
GTS, GTP Planetary Gearings
Planetary gearings for the
• GTS and
• GTP
series are suitable for being attached to MKD motors and can be
obtained from Rexroth.
The planetary gearings are characterized by the following features:
• Low-maintenance operation owing to lifetime lubrication
• Use under adverse environmental conditions is possible (owing to the
completely closed design in IP 65 degree of protection)
• Low-play gear teeth with minimum reverse play owing to ground gear
pairs
• High torsional strength owing to load distribution to three planetary
wheels
• High efficiency owing to planetary wheel principle
• High dynamics owing to low masses of inertia
• Low weight owing to compact design
• Direct overhung mounting of pinions and belt pulleys, owing to the
bearing being designed for high permissible radial loads
• Flange design permitting attachment according to design B5 (DIN
42959, Part 1, ed. 08.77) with hole in the flange
The output shaft can be mounted in two different ways:
• friction-locked shaft-hub connection by means of a plain shaft, or
• friction-locked shaft-hub connection by means of an output shaft with
keyway.
Note:
• Refer to the documentation DOK-GEAR**-GTS********-PR06-EN-P
for a detailed description of the GTS planetary gearings.
• Refer to the documentation DOK-GEAR**-GTP********-PRJ1-EN-P
for a detailed description of the GTP planetary gearings.
High operational reliability
High performance data
Easy attachment to machine
