12-6 Connection System Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P

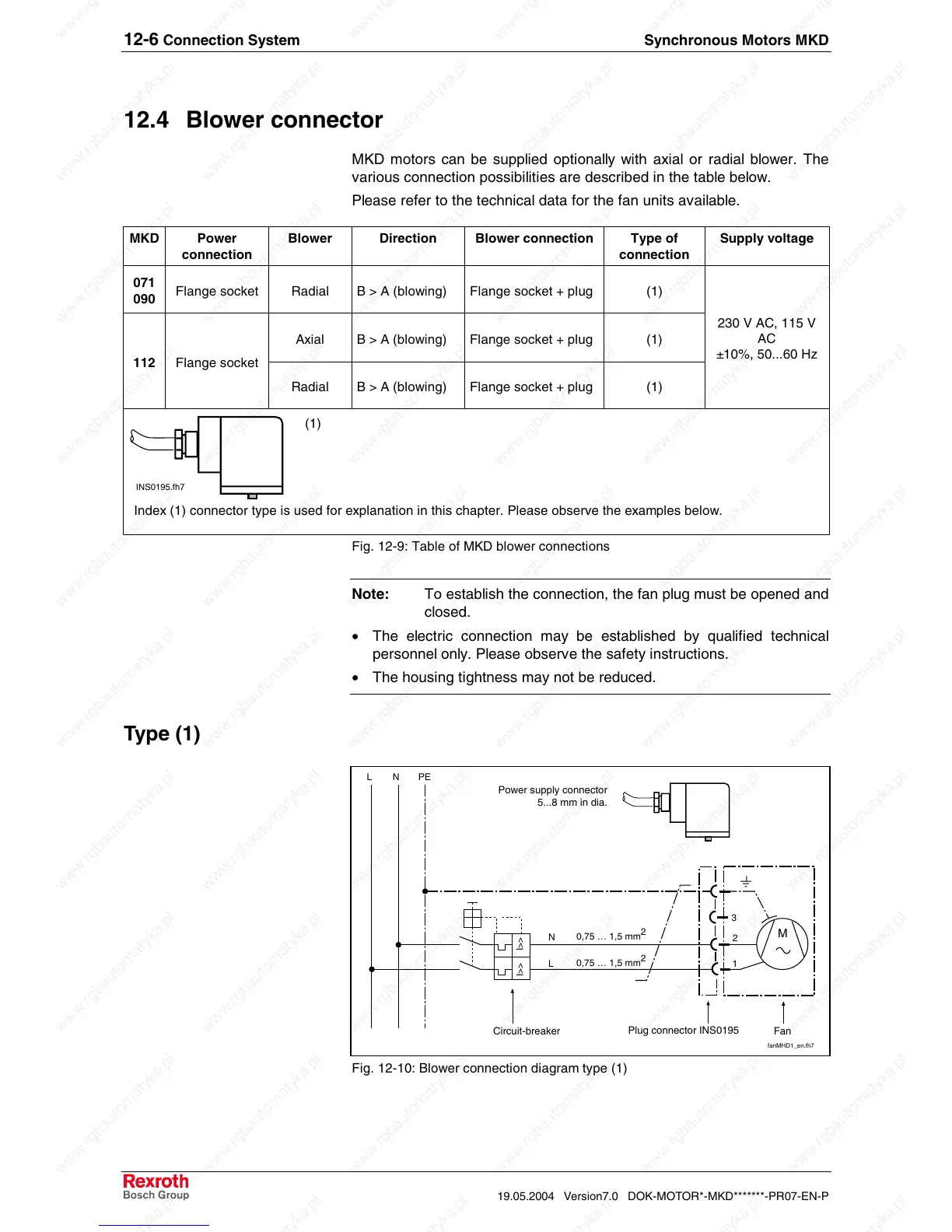

12.4 Blower connector
MKD motors can be supplied optionally with axial or radial blower. The
various connection possibilities are described in the table below.
Please refer to the technical data for the fan units available.
MKD Power
connection
Blower Direction Blower connection Type of
connection
Supply voltage
071
090
Flange socket Radial B > A (blowing) Flange socket + plug (1)
Axial B > A (blowing) Flange socket + plug (1)
112 Flange socket
Radial B > A (blowing) Flange socket + plug (1)
230 V AC, 115 V
AC
±10%, 50...60 Hz
INS0195.fh7
(1)
Index (1) connector type is used for explanation in this chapter. Please observe the examples below.
Fig. 12-9: Table of MKD blower connections
Note: To establish the connection, the fan plug must be opened and
closed.
• The electric connection may be established by qualified technical
personnel only. Please observe the safety instructions.
• The housing tightness may not be reduced.
Type (1)
1
2
3
L
N
PE
0,75 … 1,5 mm
2
0,75 … 1,5 mm
2
NL
I>>I>>
M
Power supply connector
5...8 mm in dia.
Circuit-breaker
Plug connector INS0195
Fan
fanMHD1_en.fh7
Fig. 12-10: Blower connection diagram type (1)
