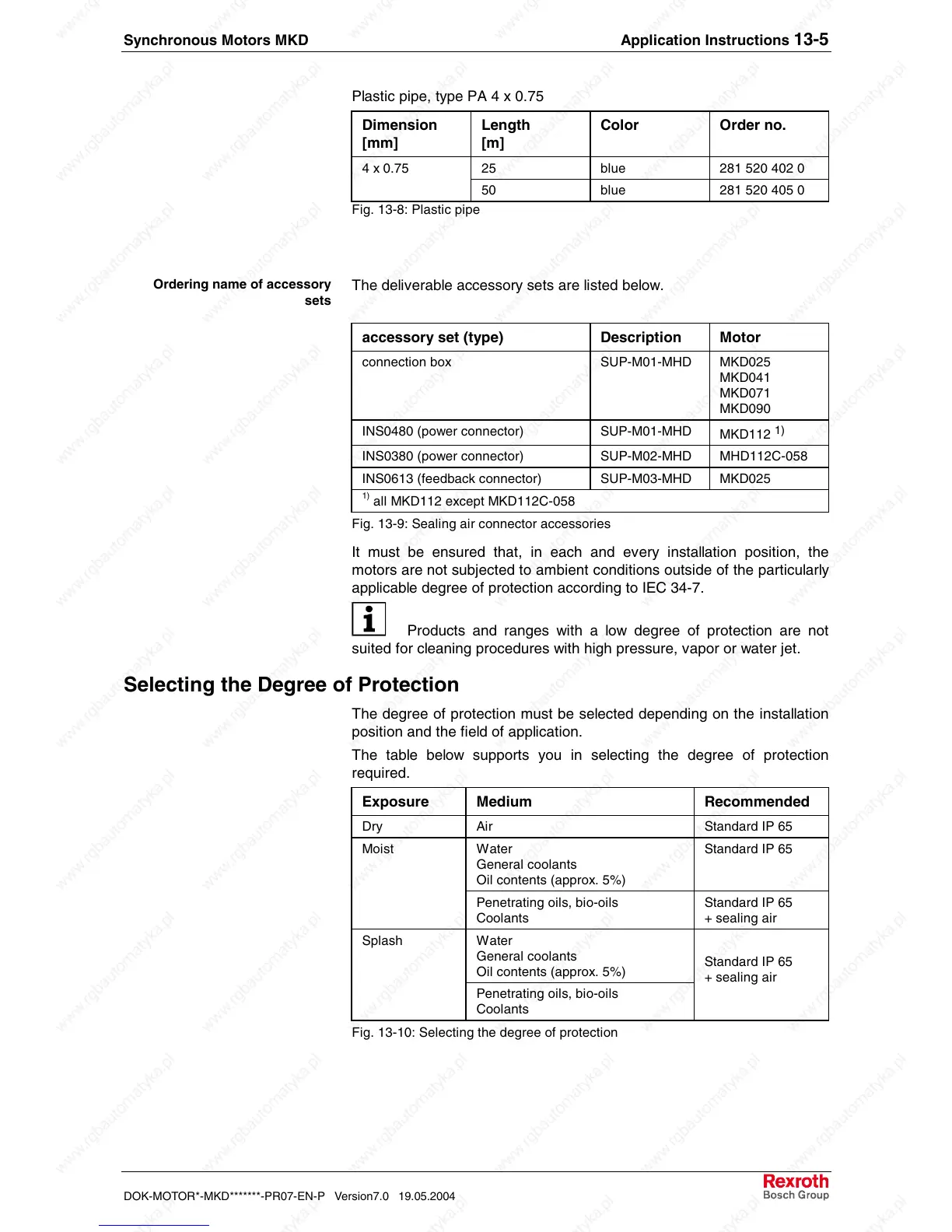

Synchronous Motors MKD Application Instructions 13-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
Plastic pipe, type PA 4 x 0.75
Dimension
[mm]
Length
[m]
Color Order no.
4 x 0.75 25 blue 281 520 402 0
50 blue 281 520 405 0
Fig. 13-8: Plastic pipe
The deliverable accessory sets are listed below.
accessory set (type) Description Motor
connection box SUP-M01-MHD MKD025
MKD041
MKD071
MKD090
INS0480 (power connector) SUP-M01-MHD
MKD112
1)
INS0380 (power connector) SUP-M02-MHD MHD112C-058
INS0613 (feedback connector) SUP-M03-MHD MKD025
1)
all MKD112 except MKD112C-058
Fig. 13-9: Sealing air connector accessories
It must be ensured that, in each and every installation position, the
motors are not subjected to ambient conditions outside of the particularly
applicable degree of protection according to IEC 34-7.
Products and ranges with a low degree of protection are not
suited for cleaning procedures with high pressure, vapor or water jet.
Selecting the Degree of Protection
The degree of protection must be selected depending on the installation
position and the field of application.
The table below supports you in selecting the degree of protection
required.
Exposure Medium Recommended
Dry Air Standard IP 65
Moist Water
General coolants
Oil contents (approx. 5%)
Standard IP 65
Penetrating oils, bio-oils
Coolants
Standard IP 65
+ sealing air
Splash Water
General coolants
Oil contents (approx. 5%)
Penetrating oils, bio-oils
Coolants
Standard IP 65
+ sealing air
Fig. 13-10: Selecting the degree of protection
