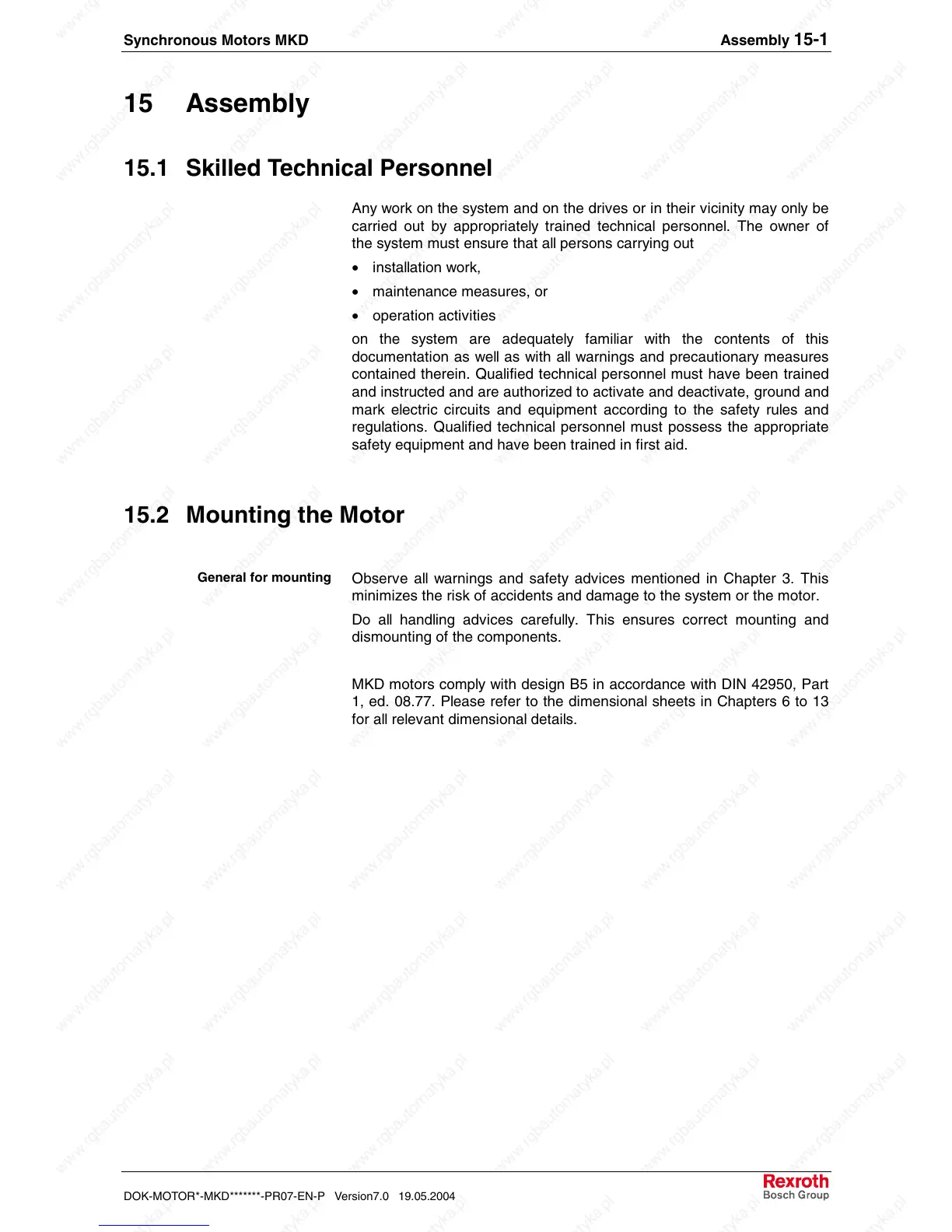

Synchronous Motors MKD Assembly 15-1
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
15 Assembly
15.1 Skilled Technical Personnel
Any work on the system and on the drives or in their vicinity may only be
carried out by appropriately trained technical personnel. The owner of
the system must ensure that all persons carrying out
• installation work,
• maintenance measures, or
• operation activities
on the system are adequately familiar with the contents of this
documentation as well as with all warnings and precautionary measures
contained therein. Qualified technical personnel must have been trained
and instructed and are authorized to activate and deactivate, ground and
mark electric circuits and equipment according to the safety rules and
regulations. Qualified technical personnel must possess the appropriate
safety equipment and have been trained in first aid.
15.2 Mounting the Motor
Observe all warnings and safety advices mentioned in Chapter 3. This
minimizes the risk of accidents and damage to the system or the motor.
Do all handling advices carefully. This ensures correct mounting and
dismounting of the components.
MKD motors comply with design B5 in accordance with DIN 42950, Part
1, ed. 08.77. Please refer to the dimensional sheets in Chapters 6 to 13
for all relevant dimensional details.
General for mounting
