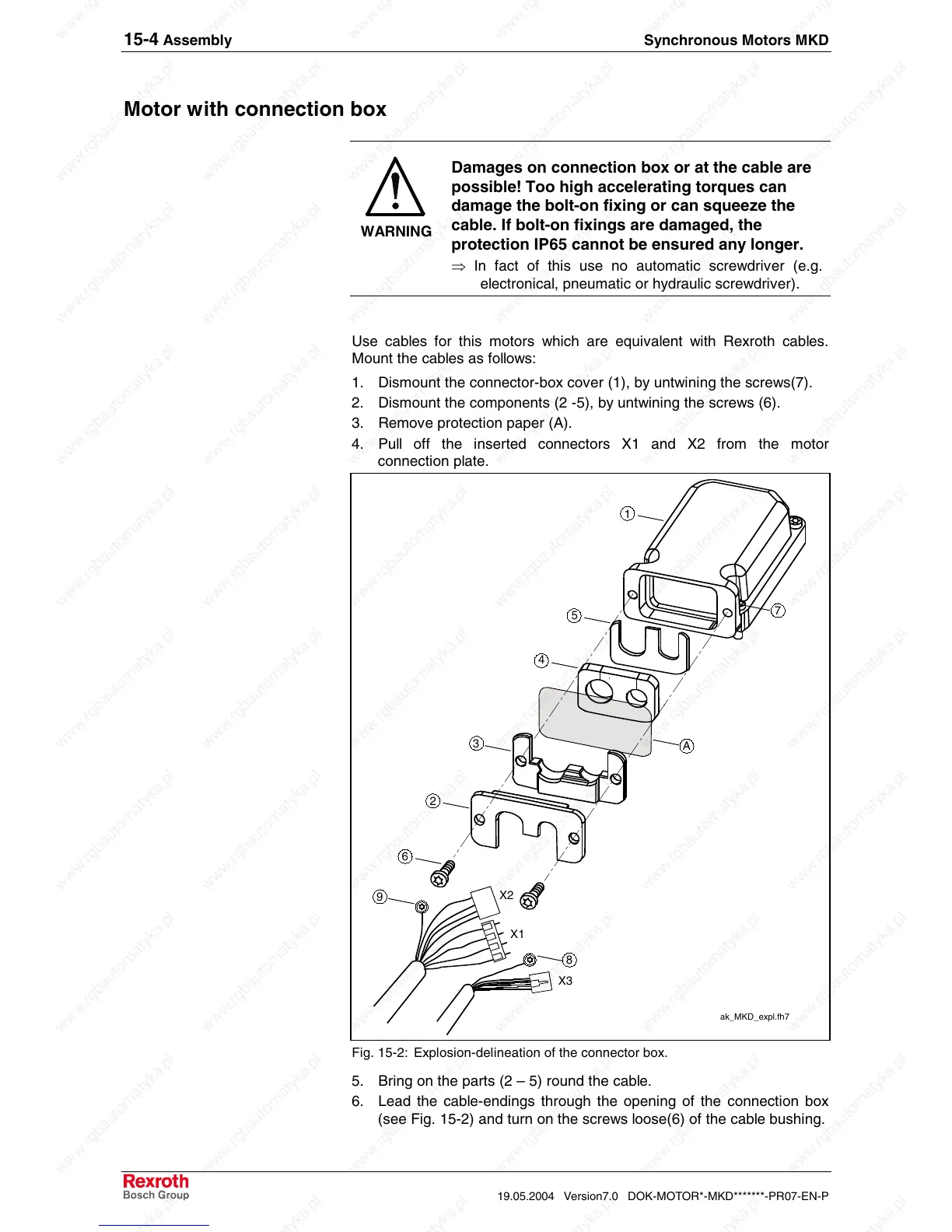

15-4 Assembly Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
Motor with connection box
WARNING
Damages on connection box or at the cable are
possible! Too high accelerating torques can
damage the bolt-on fixing or can squeeze the
cable. If bolt-on fixings are damaged, the
protection IP65 cannot be ensured any longer.
⇒ In fact of this use no automatic screwdriver (e.g.
electronical, pneumatic or hydraulic screwdriver).
Use cables for this motors which are equivalent with Rexroth cables.
Mount the cables as follows:
1. Dismount the connector-box cover (1), by untwining the screws(7).
2. Dismount the components (2 -5), by untwining the screws (6).
3. Remove protection paper (A).
4. Pull off the inserted connectors X1 and X2 from the motor
connection plate.
ak_MKD_expl.fh7
9
6
2
3
1
7
8
X3
X1
X2
5
4
A
Fig. 15-2: Explosion-delineation of the connector box.
5. Bring on the parts (2 – 5) round the cable.
6. Lead the cable-endings through the opening of the connection box
(see Fig. 15-2) and turn on the screws loose(6) of the cable bushing.
