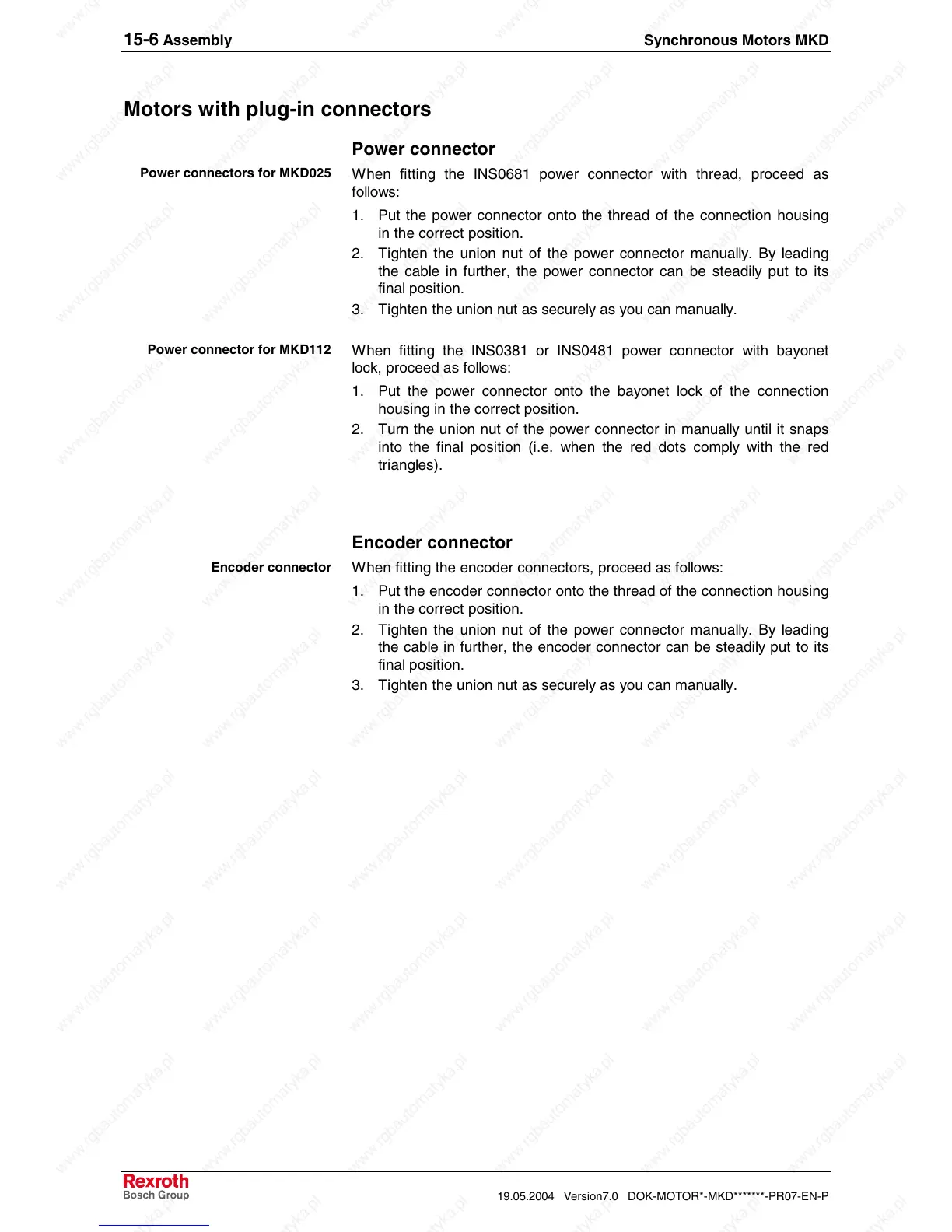

15-6 Assembly Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
Motors with plug-in connectors
Power connector
When fitting the INS0681 power connector with thread, proceed as
follows:
1. Put the power connector onto the thread of the connection housing
in the correct position.
2. Tighten the union nut of the power connector manually. By leading
the cable in further, the power connector can be steadily put to its
final position.
3. Tighten the union nut as securely as you can manually.
When fitting the INS0381 or INS0481 power connector with bayonet
lock, proceed as follows:
1. Put the power connector onto the bayonet lock of the connection
housing in the correct position.
2. Turn the union nut of the power connector in manually until it snaps
into the final position (i.e. when the red dots comply with the red
triangles).
Encoder connector
When fitting the encoder connectors, proceed as follows:
1. Put the encoder connector onto the thread of the connection housing
in the correct position.
2. Tighten the union nut of the power connector manually. By leading
the cable in further, the encoder connector can be steadily put to its
final position.
3. Tighten the union nut as securely as you can manually.
Power connectors for MKD025
Power connector for MKD112
Encoder connector
