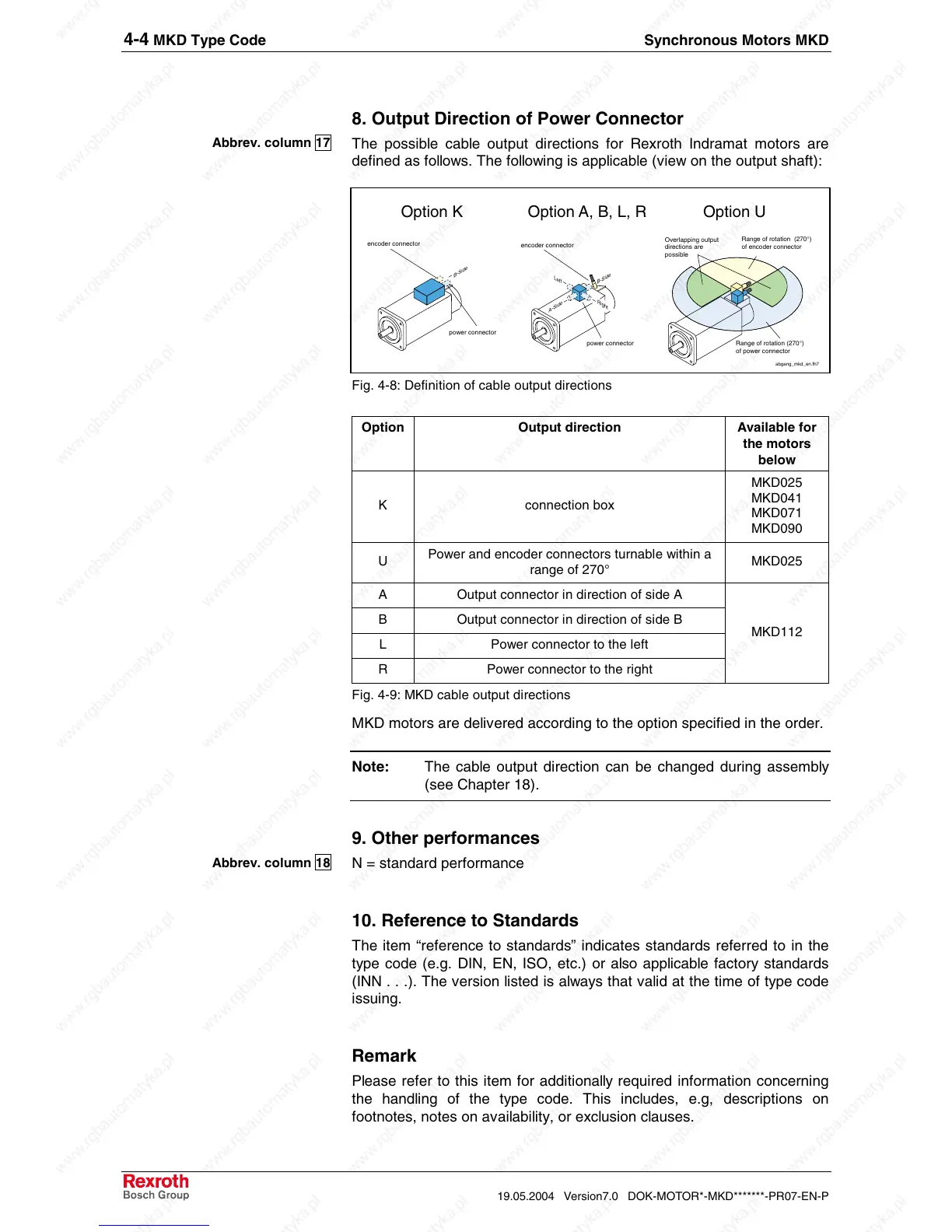

4-4 MKD Type Code Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
8. Output Direction of Power Connector
The possible cable output directions for Rexroth Indramat motors are
defined as follows. The following is applicable (view on the output shaft):
Range of rotation (270°)
of encoder connector
Range of rotation (270°)
of power connector
Overlapping output
directions are
possible
abgang_mkd_en.fh7
power connector
encoder connector
B
-S
ide
power connector
encoder connector
R
igh
t
Le
ft
A
-S
ide
B
-S
ide
Option K Option A, B, L, R Option U
Fig. 4-8: Definition of cable output directions
Option Output direction Available for
the motors
below
K connection box
MKD025
MKD041
MKD071
MKD090
U
Power and encoder connectors turnable within a
range of 270°
MKD025
A Output connector in direction of side A
B Output connector in direction of side B
L Power connector to the left
R Power connector to the right
MKD112
Fig. 4-9: MKD cable output directions
MKD motors are delivered according to the option specified in the order.
Note: The cable output direction can be changed during assembly
(see Chapter 18).
9. Other performances
N = standard performance
10. Reference to Standards
The item “reference to standards” indicates standards referred to in the
type code (e.g. DIN, EN, ISO, etc.) or also applicable factory standards
(INN . . .). The version listed is always that valid at the time of type code
issuing.
Remark
Please refer to this item for additionally required information concerning
the handling of the type code. This includes, e.g, descriptions on
footnotes, notes on availability, or exclusion clauses.
Abbrev. column 17
Abbrev. column 18
