9-6 MKD090 Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
9.2 Type code – Ordering Name
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MKD090B-047 -GG0-KN
1. Product
1.1 MKD . . . . . . . . . = MKD
2. Motor size
2.1 090 . . . . . . . . . . . . . . . . . = 090
3. Motor length
3.1 Length . . . . . . . . . . . . . . . . . . . . = B
4. Windings code
4.1 MKD090B. . . . . . . . . . = 035, 046, 047, 058
5. Motor encoder
5.1 Resolver feedback. . . . . . . . . . . . . . . . . . . . . . . = G
5.2 Resolver feedback with integrated
multiturn absolute encoder. . . . . . . . . . . . . . . . . = K
6. Driven shaft
6.1 plain shaft (with shaft sealing ring). . . . . . . . . . . . . = G
6.2 Shaft with key per DIN 6885-1
(with shaft sealing ring) . . . . . . . . . . . . . . . . . . . . . = P
7. Holding brake
7.1 without holding brake . . . . . . . . . . . . . . . . . . . . . . . . = 0
7.2 Holding brake 11 Nm . . . . . . . . . . . . . . . . . . . . . . . . . = 1
7.3 Holding brake 18 Nm . . . . . . . . . . . . . . . . . . . . . . . . . = 2
8. Output direction of power connection
8.1 Terminal box (delivering: to side B). . . . . . . . . . . . . . . . . . .= K
9. Housing design
9.1 standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
9.2 Ex type for cluster II, category 3, G and D on DIN EN 50021 = S
10. Standard reference
Standard Title Edition
DIN 6885-1 Drive Type with Fastenings without Taper Action; 1968-08
Parallel Keys, Keyways, Deep Pattern
DIN EN 50021 Electrical apparatus for potentially explosive atmospheres, 2000-02
Type of protection "n"
Note:
Windings code "046" is identical to windings code "047" and not painted
Windings code "046" is only available with housing design "N"
Looking from front onto driven shaft
2
1
2
1
typecodeMKD090_M10en.fh10

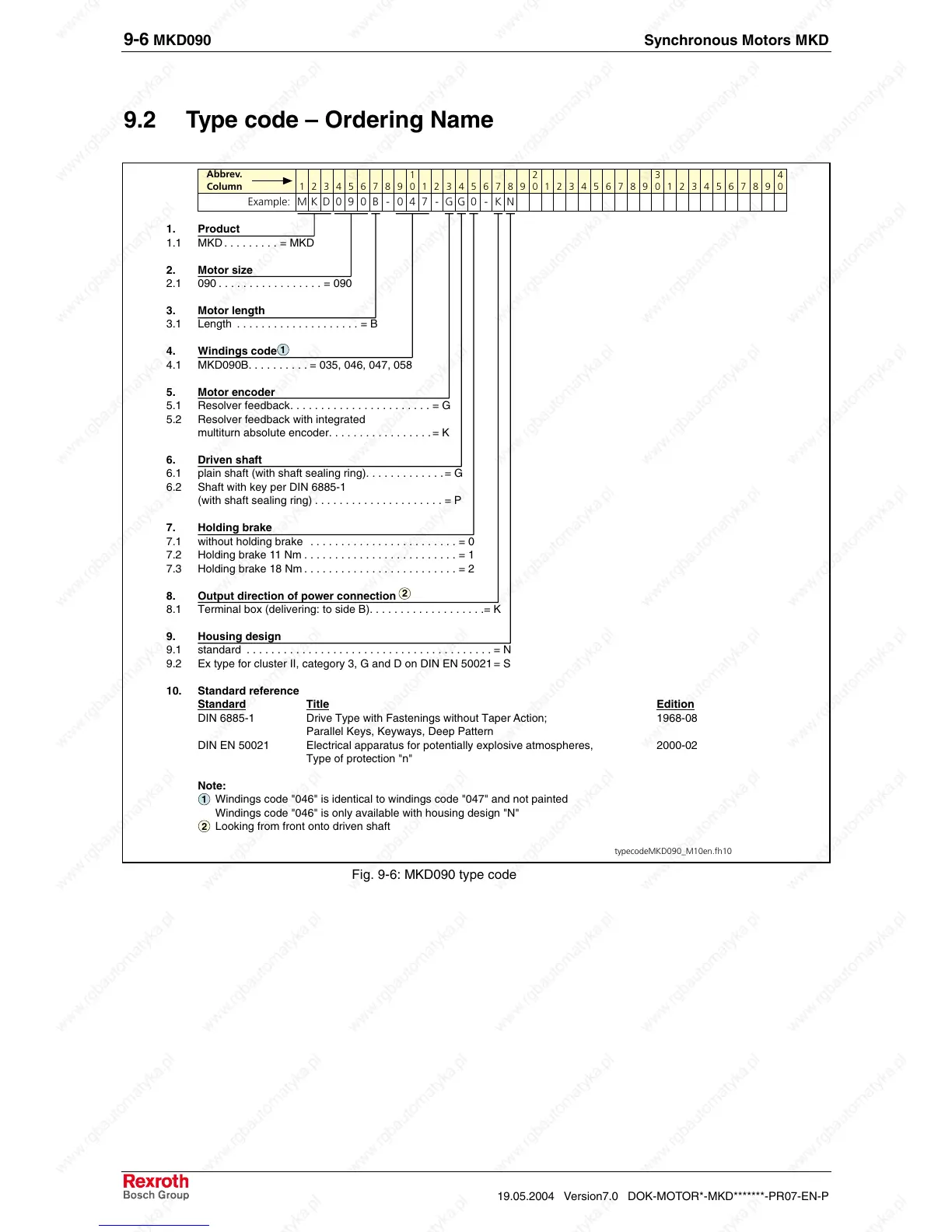

Fig. 9-6: MKD090 type code
