Synchronous Motors MKD MKD090 9-7
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004

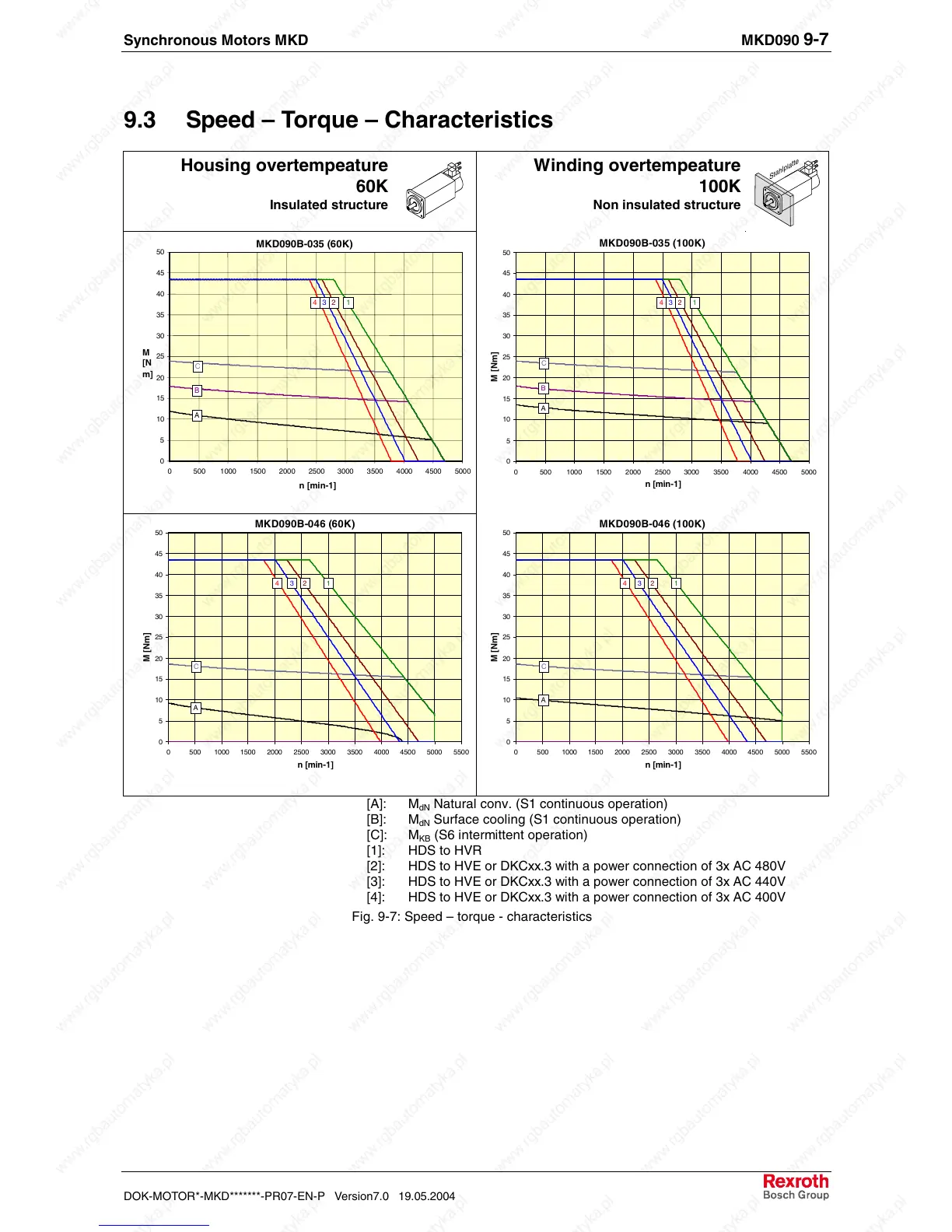

9.3 Speed – Torque – Characteristics
Housing overtempeature
60K
Insulated structure
Winding overtempeature
100K
Non insulated structure
Stahlplatte
[A]: M
dN
Natural conv. (S1 continuous operation)
[B]: M
dN
Surface cooling (S1 continuous operation)
[C]: M
KB
(S6 intermittent operation)
[1]: HDS to HVR
[2]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 480V
[3]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 440V
[4]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 400V
Fig. 9-7: Speed – torque - characteristics
MKD090B-035 (60K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
n [min-1]
M
[N
m]
1234
C
A
B
MKD090B-035 (100K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
n [min-1]
M [Nm]
1234
C
A
B
MKD090B-046 (60K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
MKD090B-046 (100K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
