10.3 Speed – Torque – Characteristics
Housing overtempeature
60K
Insulated structure
Winding overtempeature
100K
Non insulated structure
Stahlplatte
MKD112A-058- (60K)
0,0
10,0
20,0
30,0
40,0
50,0
60,0
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
n [min-1]
M [Nm]
S1 (60K)
S6 (25% ED)
1234
C
A
B
S1
(surface)
MKD112A-058- (100K)
0,0
10,0
20,0
30,0
40,0
50,0
60,0
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
n [min-1]
M [Nm]
S1 (100K)
S6 (25% ED)
1234
C
A
B
S1
(surface)
[A]: M
dN
Natural conv. (S1 continuous operation)
[B]: M
dN
Surface cooling (S1 continuous operation)
[C]: M
KB
(S6 intermittent operation)
[1]: HDS to HVR
[2]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 480V
[3]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 440V
[4]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 400V

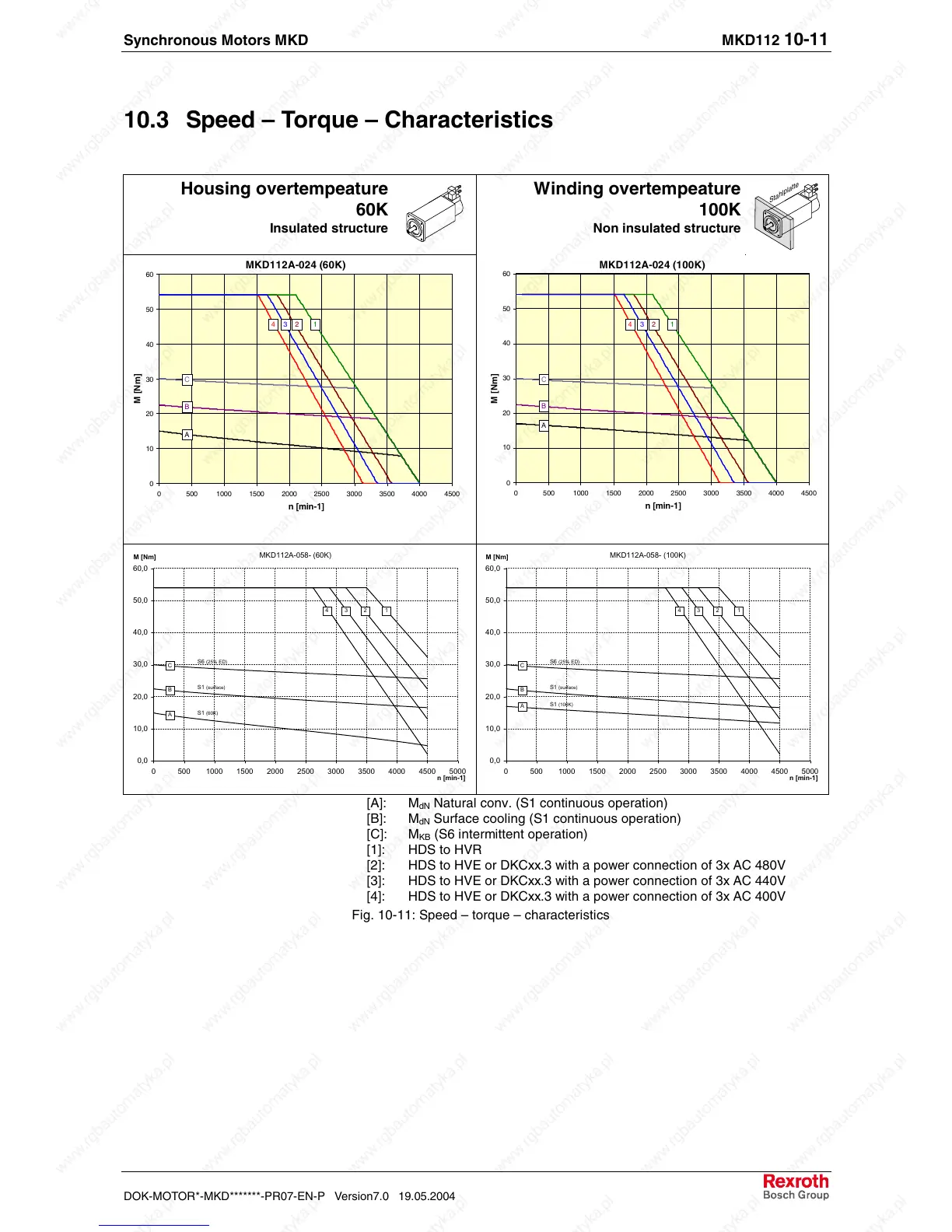

Fig. 10-11: Speed – torque – characteristics
MKD112A-024 (60K)
0
10
20
30
40
50
60
0 500 1000 1500 2000 2500 3000 3500 4000 4500
n [min-1]
M [Nm]
1234
C
A
B
MKD112A-024 (100K)
0
10
20
30
40
50
60
0 500 1000 1500 2000 2500 3000 3500 4000 4500
n [min-1]
M [Nm]
1234
C
A
B
