Form I-RDF, P/N 148384 (Rev 1), Page 27

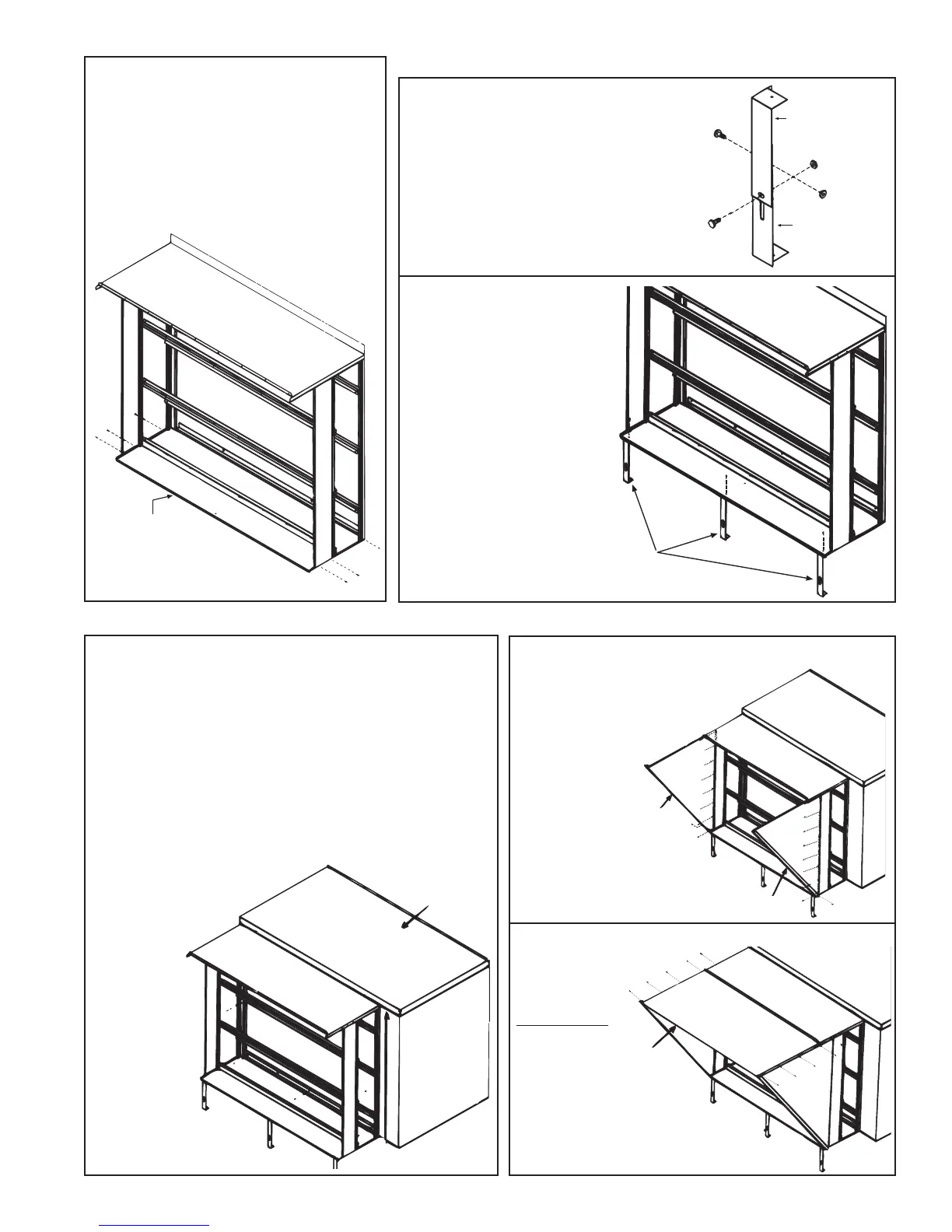

Step 1E - Attach Cabinet
Section Bottom
Parts Required - Subassembly from Step
1D; cabinet section bottom; and six 1/2"
sheetmetal screws.
Position the cabinet section bottom to the
inside of the four posts (corners). Attach as
illustrated.
P/N 91567
Bottom of Hood
Cabinet Section
2. Assemble and Install Support Legs
P/N 91581,
Support
Leg Half
P/N 91581,
Support
Leg Half
Step 2A - Sub-assemble
Support Legs
Parts Required - Six support leg
halves and six 5/8"
bolts and nuts
Assemble support legs as illustrated.
Adjust legs to shortest length and tighten
bolts finger tight. Length of supports will
be re-adjusted to suit the application after
cabinet is installed.
Attach sub-assembled
legs at pre-drilled holes.
Step 2B - Install
Support Legs
Parts Required - Three sub-
assembled legs and three 3/4"
sheetmetal screws
Attach leg
assemblies to
cabinet bottom.
System
Cabinet
Top
Cabinet Section
of Inlet Hood
Remove screws and
slide edge of cabinet
underneath top.
3. Attach Assembled Cabinet Section
4. Assemble Air Inlet Hood Section
P/N 91569,
Right Side
of Hood
P/N 91568, Left Side of Hood
Step 4A - Attach Hood Sides
Attach the sides
to the interme-
diate posts and
bottom panel of
the installed
cabinet section.
P/N 91576,
Hood
Section
Top
Step 4B - Attach Hood
Section Top
Parts Required
- Hood section
top and ten
1/2" long
screws
Attach hood section
top as illustrated.
Step 3 - Attach Filter Cabinet to System
On the air inlet opening side of the system cabinet, remove the
sheetmetal screws from the bottom rear inset and the screws
across the top edge.
Align the edges of the inlet hood cabinet section with the
grooves in the system cabinet. Slide top edge of the inlet hood
cabinet section underneath the edge of the system cabinet top.
Rotate the assembly so that it fits into the recess across the bot-
tom of the cabinet opening. Attach by replacing the two corner
screws and one center screw across the top, the three screws across
the bottom, and one halfway up on each side as illustrated.
Adjust the support legs to
the appropriate height
and tighten bolts
securely.
Parts Required - Right and
left triangular shaped sides
and 18 sheetmetal screws
(1/2" long)
