Page 28
(800) 695-1901; www.RezSpec.com
©2003 Thomas & Betts Corporation, All rights reserved. Printed in the U.S.A.
MANUFACTURER OF HEATING, COOLING, AND VENTILATING SYSTEMS
Trademark Note: Reznor
®
is registered in the United States and other countries.
8/03 POD Form I-RDF
FOR SERVICE OR REPAIR, FOLLOW THESE STEPS IN ORDER:
FIRST: Contact the Installer
Name ________________________________________________________
Address ________________________________________________________
________________________________________________________
________________________________________________________
Phone _________________________________
P/N 91582, Center Louver Support
(attach one to the top and one to the
bottom of the inside of the hood)
5. Install Filters, Block Off Sections and Door Panels
On hoods with filters, position filters and blockoffs on filter racks on all hoods.
If the systems has an optional dirty filter switch, follow the instructions on
page 11 to connect the sensing tubes.
Slide the "door" panels into position on each side of the cabinet section. Fas-
ten each panel with two 1/2" long screws.

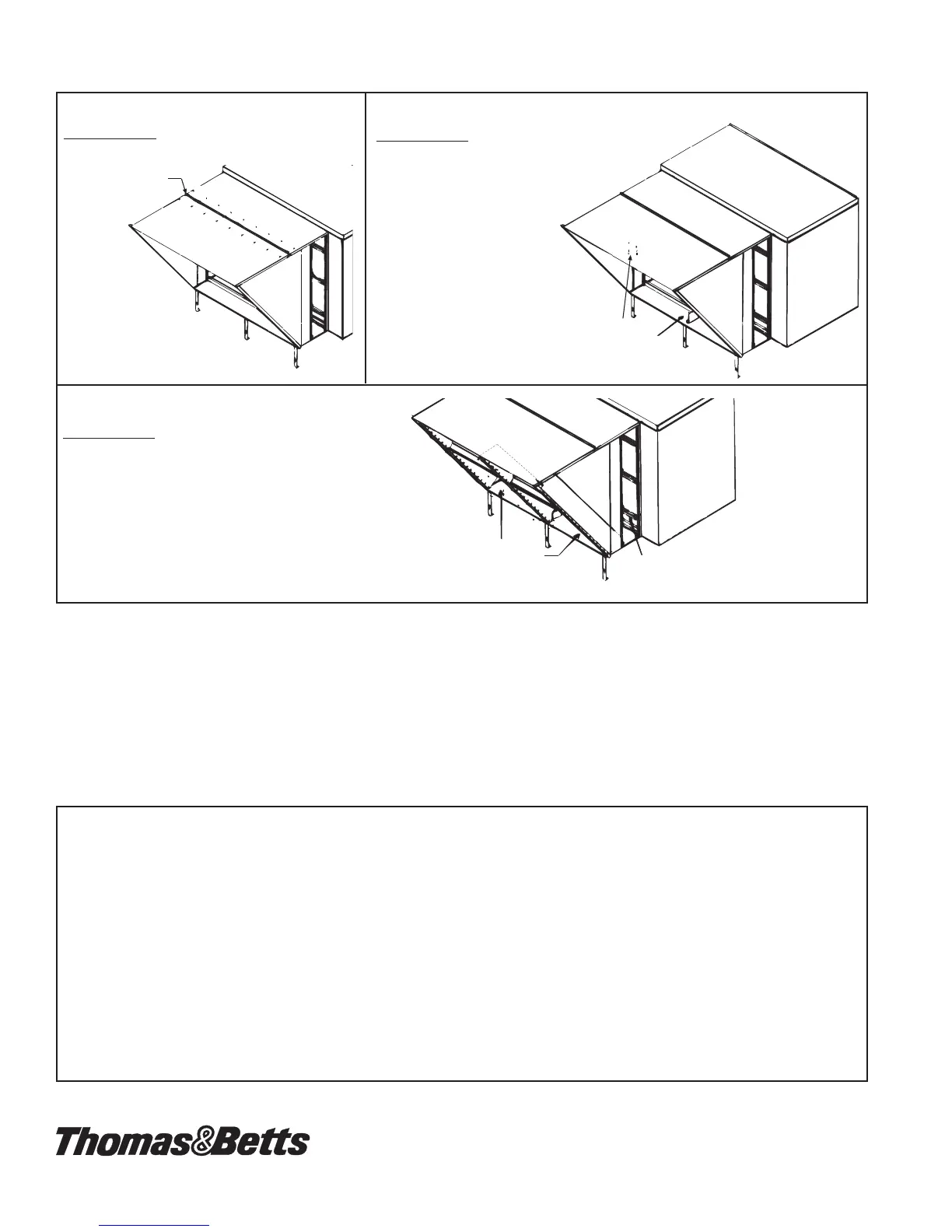

Step 4D - Install Center Louver Supports
Step 4E - Install Louvers
Parts Required - Two factory-assembled louver sec-
tions; 19 screws (1/2" long); and five Tinnerman
clips
Position one louver section in the left side of the
hood; attach it to the hood side and the center sup-
ports. Install the other louver section in the right
side. In the center, join the two louver sections with
five screws and clips.
Install pre-assembled
louver sections.
AS6 ad AS7 - Slide filters and blockoff
sections into filter racks. Install side panels
which are filter access doors on AS6 and AS7.
P/N 91577,
Top Clamp
Step 4C - Install Top Clamp
Parts Required - Top clamp and nine 5/8" long
screws (bolt type) and nuts
SECOND: Contact the nearest distributor
(See Yellow Pages). If no listing, con-
tact Authorized Factory Representative,
1-800-695-1901 (Press 1).
THIRD: Contact REZNOR
®
/Thomas & Betts Corporation
150 McKinley Avenue
Mercer, PA 16137
Phone: (724) 662-4400
Model No. _________________ Serial No._________________________Date of Installation _____________
Field Installed Outside Air Hood or Filter Section (cont'd)
Parts Required - Center louver supports and
four 1/2" long screws
Fit clamp over
seam and attach as
shown with bolt-
type screws and
nuts.
At the holes in the center
of the top and bottom of
the hood, use the screws
to attach the center louver
supports inside the hood.
