For optimal performance, both the audio/video and remote control antennas
should be carefully oriented as described below. For maximum transmitting
range, try to minimize obstacles (e.g. your TV or other electronics, large
furniture) where between the transmitter and receiver.

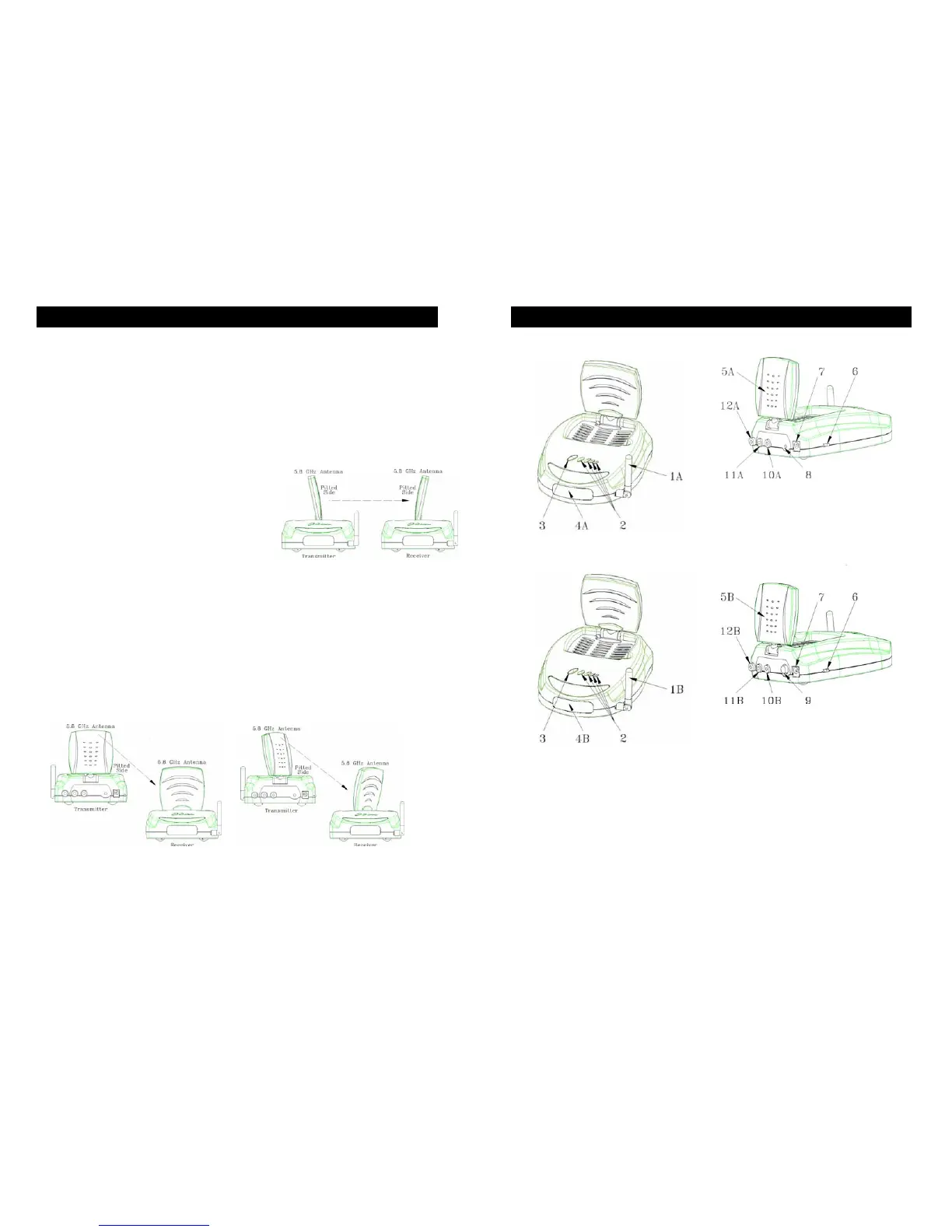

Orients the 5.8GHz A/V Antennas
5.8GHz Transmitter
5.8GHz Receiver
1A – UHF antenna receives remote control signal.
1B – UHF antenna sends remote control signal.
2 – Indicator lights show the channel it configured as.
3 – Channel selection button to find optimal reception, the transmitter and receiver must to be
configured as the same channel.
4A – Remote control window sends IR rays, to remotely control the source AV equipment.
3. Panel Control and Function
3
5. Orient Transmitter/Receiver for optimal performance
The system delivers high-quality audio and
video by using directional antennas, which must
be oriented in the best ways. The antennas are
designed to be able to vertically and horizontally
pivot and rotate in almost any direction.
In most situations, the flat-pitted face of the antennas on both the transmitter
and receiver should be facing one another and perpendicular (at a right angle)
to an imaginary line drawn between the two units. Three examples are shown
as Fig-1, Fig-2 and Fig-3. Since all homes are different, for optimal reception,
additional slight pivots or rotations may be necessary. If the transmitter and
receiver are less than 10 feet apart, suggest that the antennas are lying on their
casings since the distance is so short.
Fig-1
Fig-2 Fig-3
6
To Next Page
