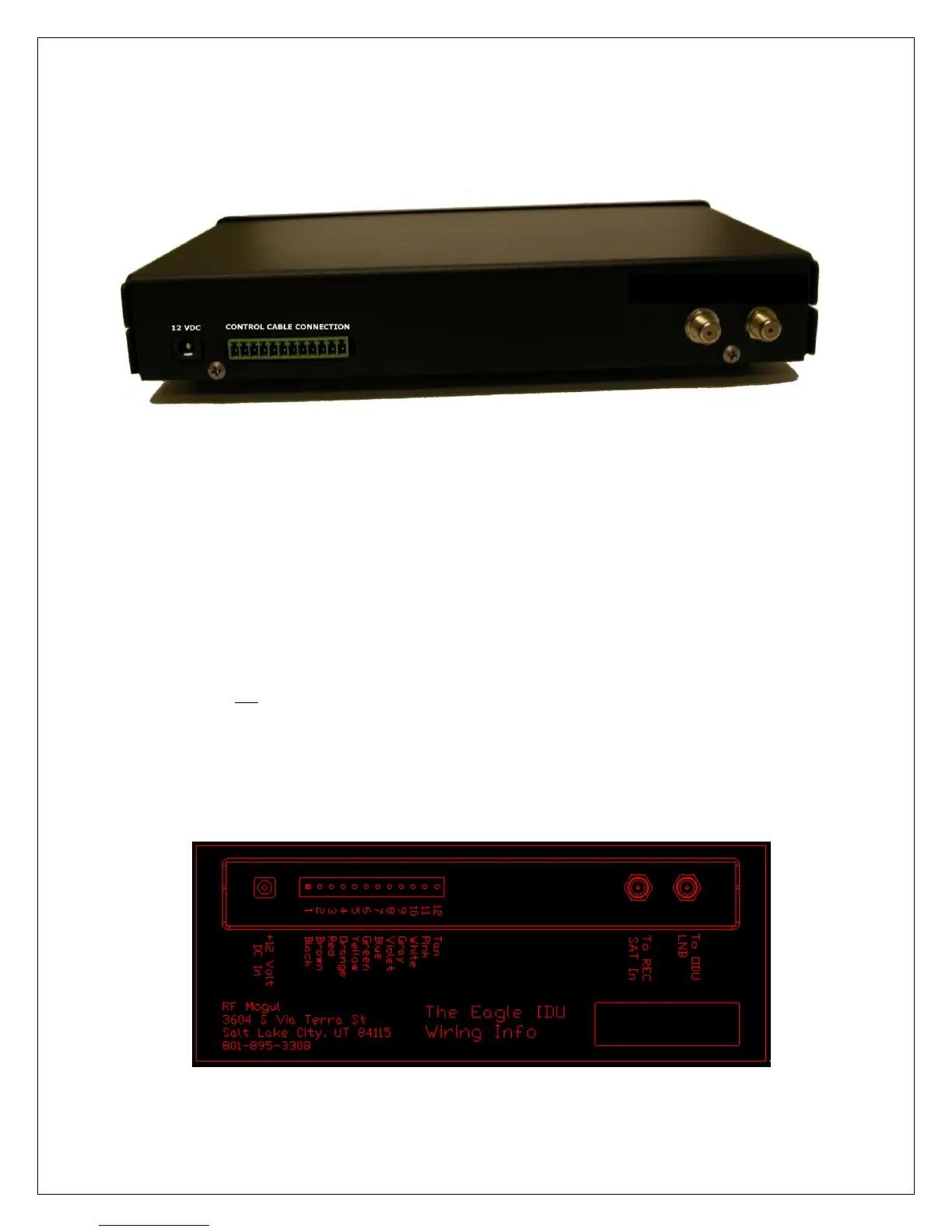

REAR VIEW Definitions and Usage
CONNECTIONS
12 VDC: (Power)
12 VDC 7 amp (power supply provided).
CONTROL CABLE CONNECTION:
Termination of the 12 wires of the control cable to the controller takes place here.
TO REC: (To Satellite Receiver)
This is a coax pass-through connection to your satellite receiver (Satellite IN). There is an exception for
DirecTV SWM. (See Wiring Diagram in this manual for splitter insertion).
TO LNB: (To LNB on the roof mount)
This is a coax connection to the roof mount antenna LNB through the base of the mount
to any one of 4 coax cables that run through the mount and is (are) secured to the LNB
If you have DirecTV SWM the coax must run directly to the controller uninterrupted to the
connection marked "TO LNB" on the Eagle Controller. (It may be necessary to buzz out the coax
cables going through the mount be to determine which one is to be connected to the SWM LNB since
only one cable is required but multiples are supplied).
Label on the bottom of the controller
