Technical specifications
Receiver Decoder: TRAP-Receiver
Enclosure Rating: IP68
Dimensions: 130 x 112 x 42 mm (not including antenna)
Operating Temperature: -10 to +50
o
Celsius.
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes
Electrical Characteristics MIN TYPICAL MAX DIMENSION
Supply Voltage 6 32 Vdc or ac
Supply Voltage for 230Vac 230 Vac
Relay Rating* (230Vac) 5 12 A
Supply Current at Vsupply 12V
Quiescent
All relays operating*
15
175
mA
Time delay from Tx on Switch to Rx Relay operation 26 mS
Time delay from Tx sw relax to Rx Relay release 26 mS
50.00
59.00
46.00
82.00
10.00
All Dimensions in mm

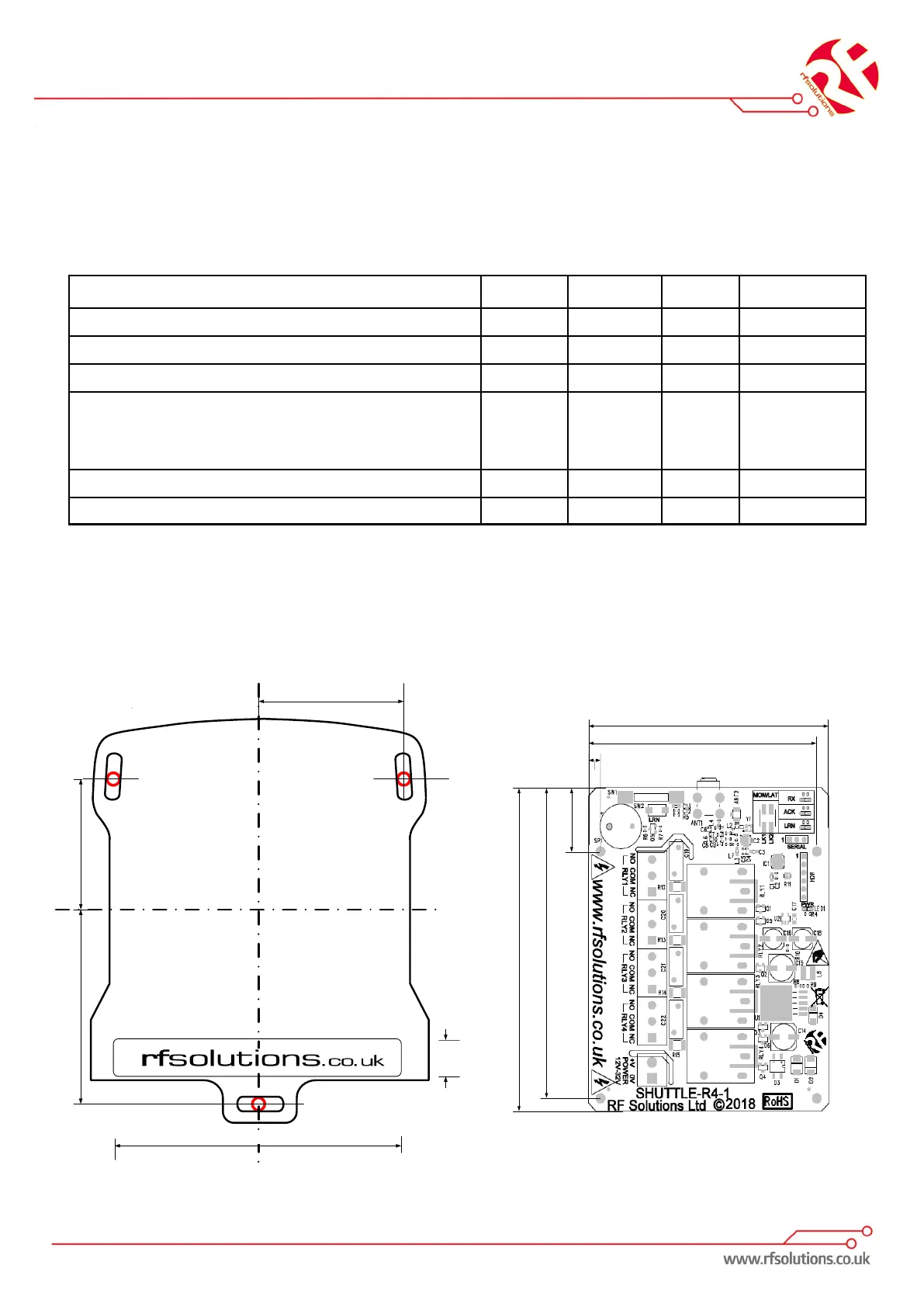

Mechanical Dimensions
76
80
4
20
96
100
Measurements in mm drawing not to scale
