RF SOLUTIONS RADIOTRAP Series User Manual

TRAP Remote Controls
DS-TRAP-10 Page 5

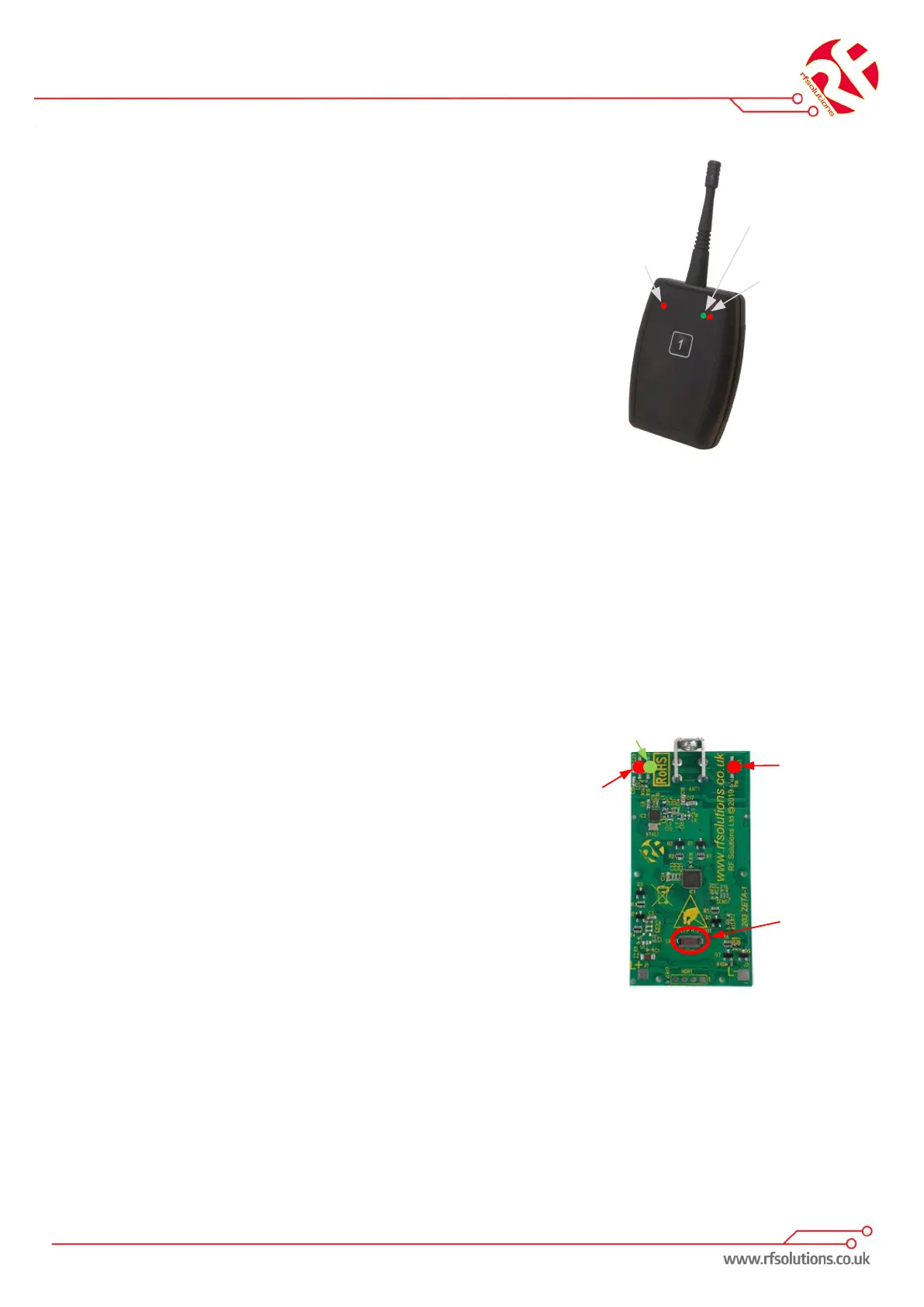

Transmitter Operation
Press any of the switches to operate. The Transmitter will
auto sleep between operations to save power
The LED’s indicate the following:
RF Transmit
The GREEN LED operates when transmitting an RF
signal
RF Acknowledge (if configured) :
After RF Transmission if acknowledge is configured
the GREEN LED will Flash at high speed to indicate
that an acknowledgment has successfully been re-
ceived back form the receiver
The RED LED will Flash at high speed to indicate that
an acknowledgment has not been received back form
the receiver
Low Battery:
Low Battery LED illuminates for 3 seconds after each operation
Low
Battery
RF Acknowledge
From Receiver
(Green / Red LED)
RF Transmit
(Green LED)
SET
Switch
Antenna
LED1
LED2
LED3
Flashes
constantly
in setup
Configuring Modes of Operation
To configure the modes of operation, undo the six en-
closure fixing screws to access the internal circuit
board.
The SET switch is used to configure the operating
modes
The Following Modes can be configured
1. Acknowledgement back from the Receiver
2. Continuous or State Change Transmission
Transmitter Factory Default Settings
1. Acknowledgement OFF
2. Continuous or Transmission
