34

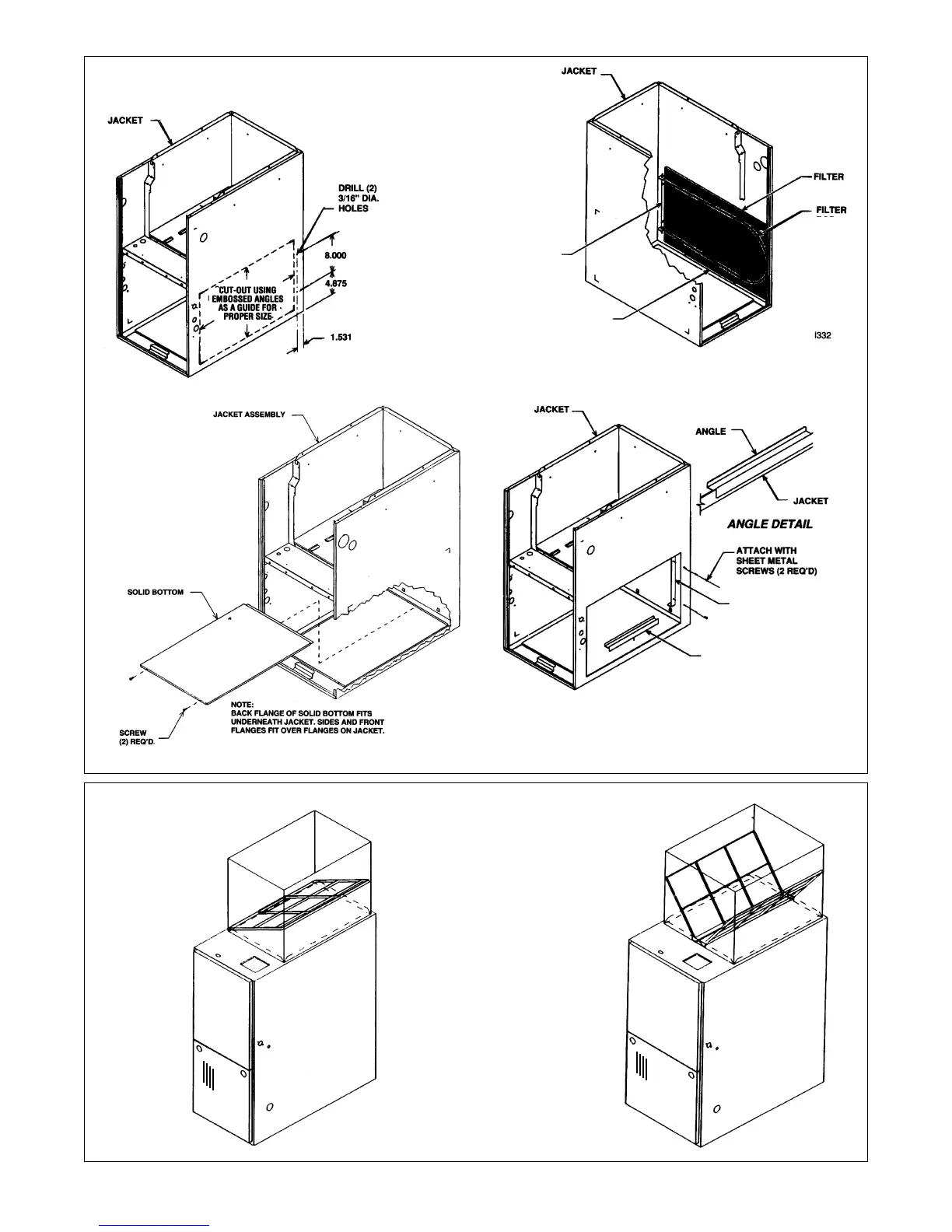

FIGURE 26
UPFLOW FILTER RETAINING ROD (SIDE RETURN)
FILTER
ROD
45-24095-01
FILTER ROD
SUPPORT
ANGLE
AE-60520-01
FILTER SUPPORT
ANGLE
(SEE ANGLE DETAIL)
AE-61883-01
FILTER ROD
SUPPORT
ANGLE
AE-60520-01
FILTER
SUPPORT
ANGLE
AE-61883-01
CUT-OUT AND DRILL DETAIL
FILTER AND ROD ASSEMBLY
ROD & FILTER SUPPORT ANGLE ASSEMBLY
SOLID BOTTOM MAY BE ORDERED FROM THE FACTORY.
FIGURE 27
DOWNFLOW FILTER INSTALLATION
