Rheem MPi Series User Manual

HEAT PUMP AND TANK ASSEMBLY
19
7. Foam Tape: (410 litre storage tank only) – Retrieve the length of foam
tape from the kit supplied with the 410 storage tank.
The foam tape is to be applied to the bottom at the front of the 410 litre
storage tank.
The ends of the foam tape are to line up with the two vertical slots in the
jacket.
The mid point of the tape (lengthways) is to line up over the join between
the jacket of the storage tank and the jacket bottom.
 Remove the backing from the foam tape and apply the foam tape to
the storage tank.
FOAM
TAPE
REMOVE ADHESIVE
PAPER BACKING
LINE UP EDGES OF FOAM
TAPE UNDER SLOTS.
MID POINT OF FOAM TAPE
TO LINE UP OVER JOIN
BETWEEN JACKET AND
JACKET BOTTOM.
SK6570-2 REV BD 30/4/13

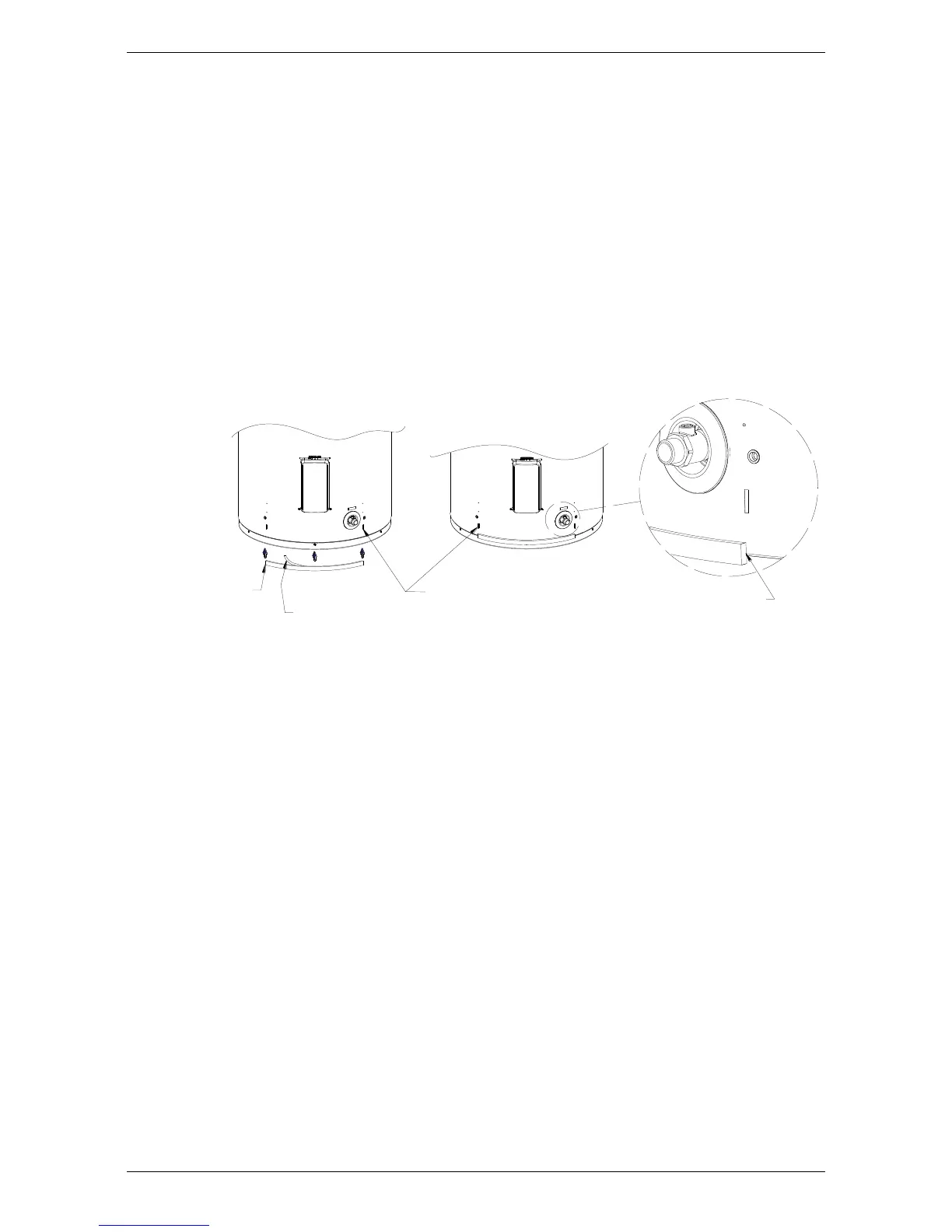

FOAM TAPE APPLICATION HEAT PUMP INTEGRATED 410 LITRES
Step 7
apply foam tape to 410 litre storage tank
8. Heat Pump Module: Remove all packaging including the carton base
from the heat pump module and position in its intended location at the
storage tank.
CAUTION: The heat pump module weighs approximately 42 kg. Use the
hand holes provided in the sides of the packaging. Good lifting practice
should be followed.
