Rheem RTEX-04T User Manual

8
POU ELECTRICAL 3.5@120V
BLACK TO BREAKER (POWER)
WHITE (NEUTRAL)
GREEN/YELLOW GROUND
30
POU ELECTRICAL 6.5@240V
BLACK TO BREAKER (POWER)
RED TO BREAKER (POWER)
GREEN/YELLOW GROUND
30
30 30 Amp
Double pole breaker
30 Amp
Single pole breaker

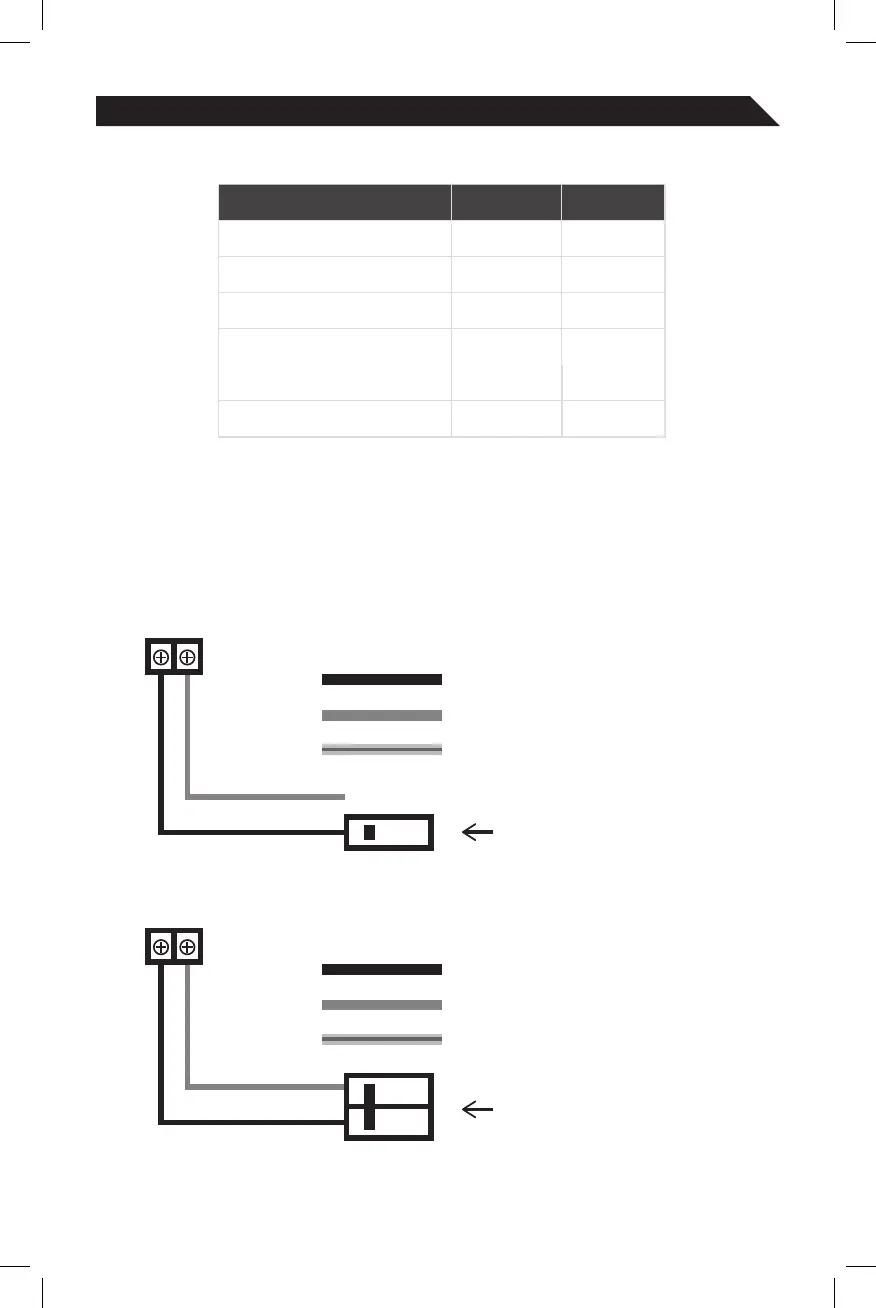

WIRING DIAGRAM
ELECTRICAL REQUIREMENTS
HEATER INPUT 3.5 kW 6.5 kW
Elements 1 1
Voltage 120 V 240 V
Max kW 3.5 kW 6.5 Kw
Max Amperage Draw 29 AMPS 27 AMPS
Required Breakers 1 x 30 AMP 2 x 30 AMP
Required Wire Gauge 2 x 10 AWG 2 x 10 AWG
ELECTRICAL SPECIFICATIONS BY HEATER INPUT
L1 (Black)
L2 (Red)
N
L
