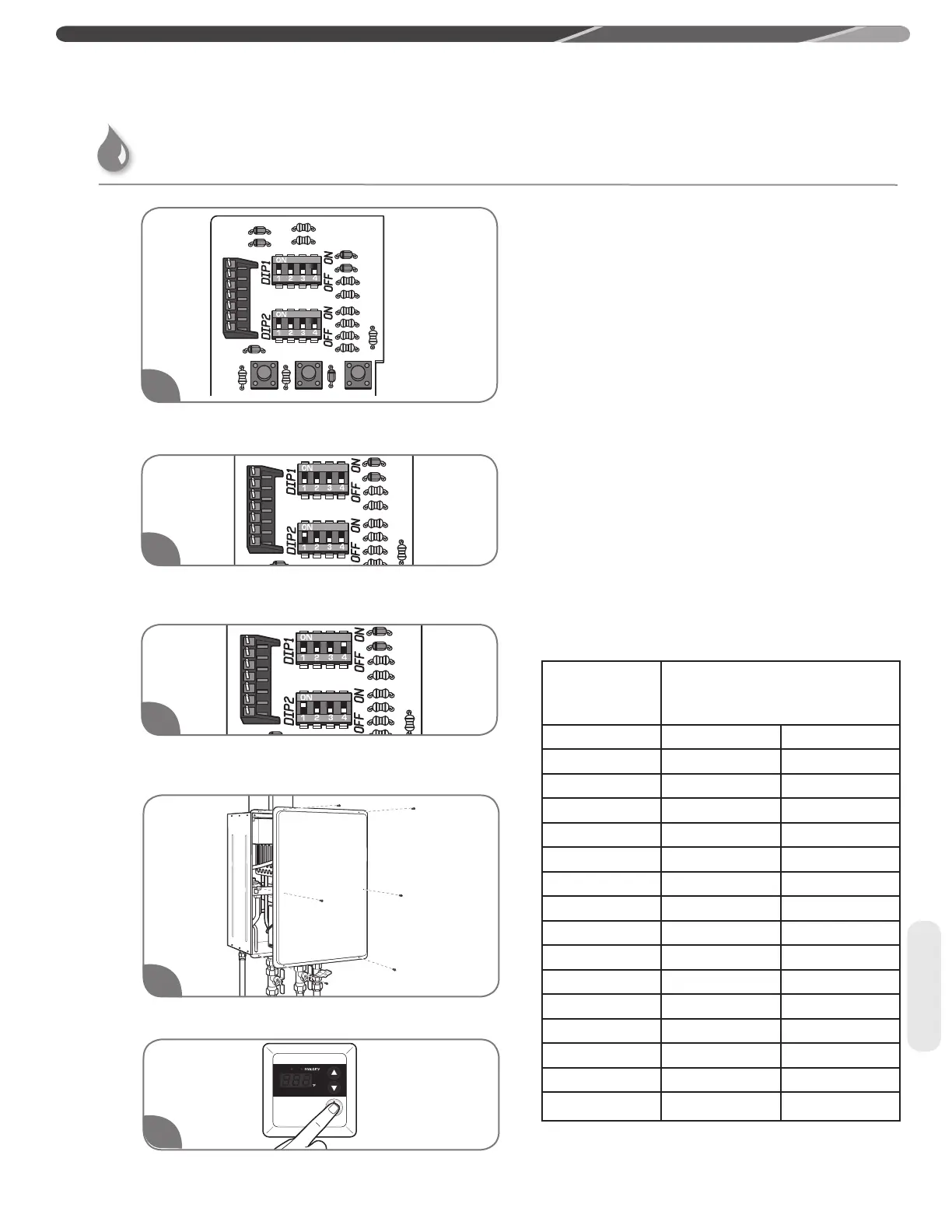

The factory setting for this switch should all be in the
OFF position (DOWN).
Change the first switch on “DIP 2” to the ON position
(UP). Performance mode is selected.
To select Energy Saver mode, change the fourth switch on “DIP 1” to
the ON position (UP)�
Replace the front cover panel.
Turn on all electric power to the water heater.
Turn On the remote control. The pump and water heater
will turn on to raise recirculation loop temperature.
Recirculation Operation
The water heater is turned ON when the
recirculation pump starts operation. The water heater
produces hot water at the setting temperature. When
the return water temperature reaches approximately
15°F below the setting temperature, the water heater
and the pump will turn OFF. The cycle will restart
at the approximate time interval in the table below
based on the temperature thermistor readings.
Energy Saver Mode
The Energy Saver mode operates as follows:
• Less energy consumption due to fewer pump cycles
• Pump cycles ON every 30 to 69 minutes
Performance Mode
The Performance mode operates as follows:
• Higher energy consumption due to more pump
cycles
• Pump cycles ON every 15 to 35 minutes
Setting Temp Typical Pump ON Intervals [Min]
[°F] Performance Energy Saver
140 15 30
135 15 30
130 15 30
125 15 30
120 16 31
118 17 33
116 18 35
114 19 38
112 20 40
110 22 44
108 24 47
106 26 51
104 28 56
102 31 62
100 35 69
Actual pump ON intervals may vary based on the
setting temperature, insulation, and heat loss in the
system.
