PRODUCT INFORMATION

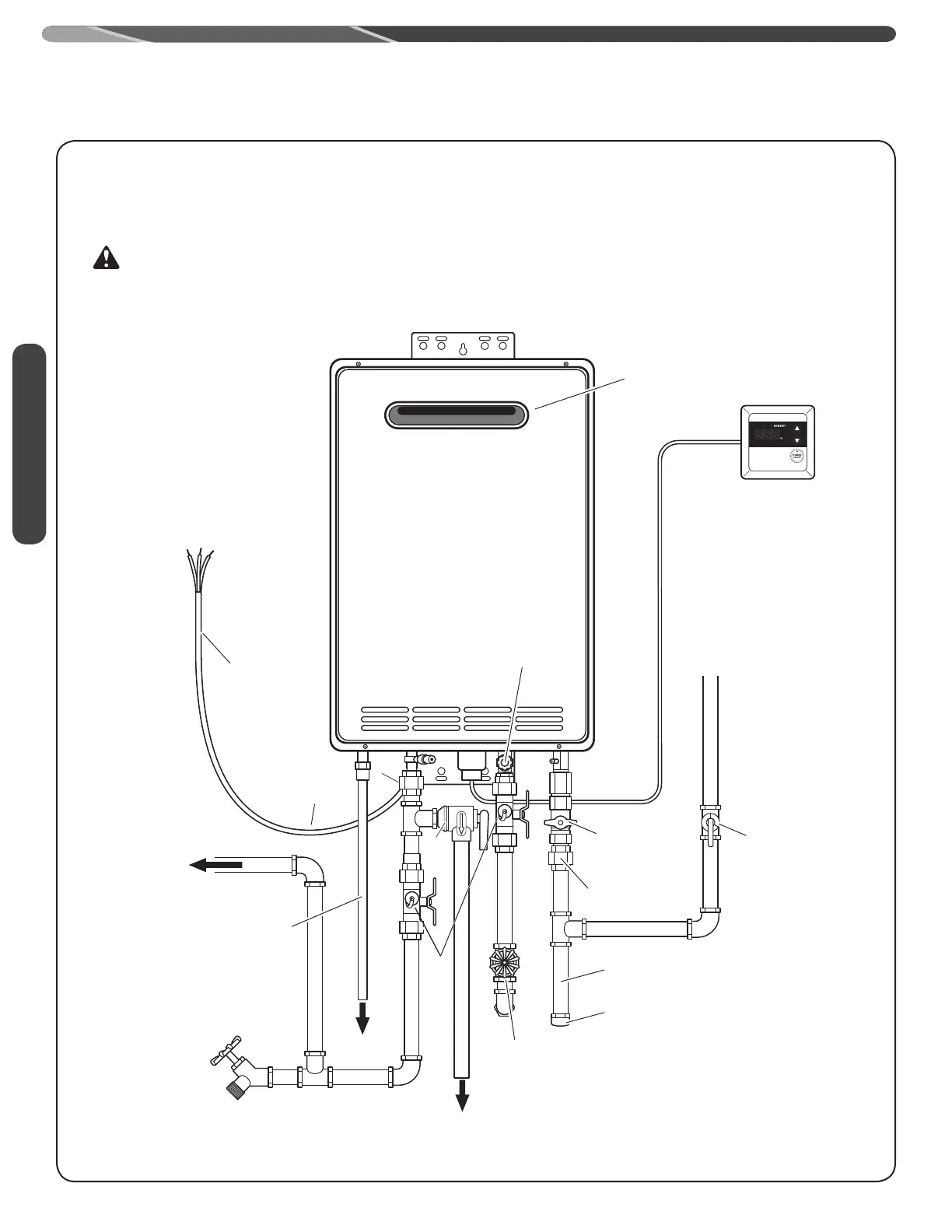

Typical Outdoor Water Heater
(No Venting Required)
Remote Control
With Power Switch
To Hot Water
Faucet(s)
Drain Valve
Cold Water Supply
Shut-O Valve
*Note: A exible drain tube can be used
To Suitable
Drain
To Suitable
Drain
Power
Supply
Cord
Union
Union
Manual Gas
Supply Line
Shut-O Valve
Manual Gas
Shut-O Valve
(Supplied)
Condensate
Pipe*
Cap
Sediment Trap
Service
Valve
Relief
Valve
Relief
Valve
Hard-Wire
Water
Filter
Flue
Terminal
This water heater is for OUTDOOR installation only.
DANGER:
DO NOT install this water heater indoors or in a confined space. It is designed for outdoor installation only. Any other type of
installation will result in death or serious personal injury.
