General
INSTALLATION INSTRUCTIONS
Water Heater Installation (cont.)

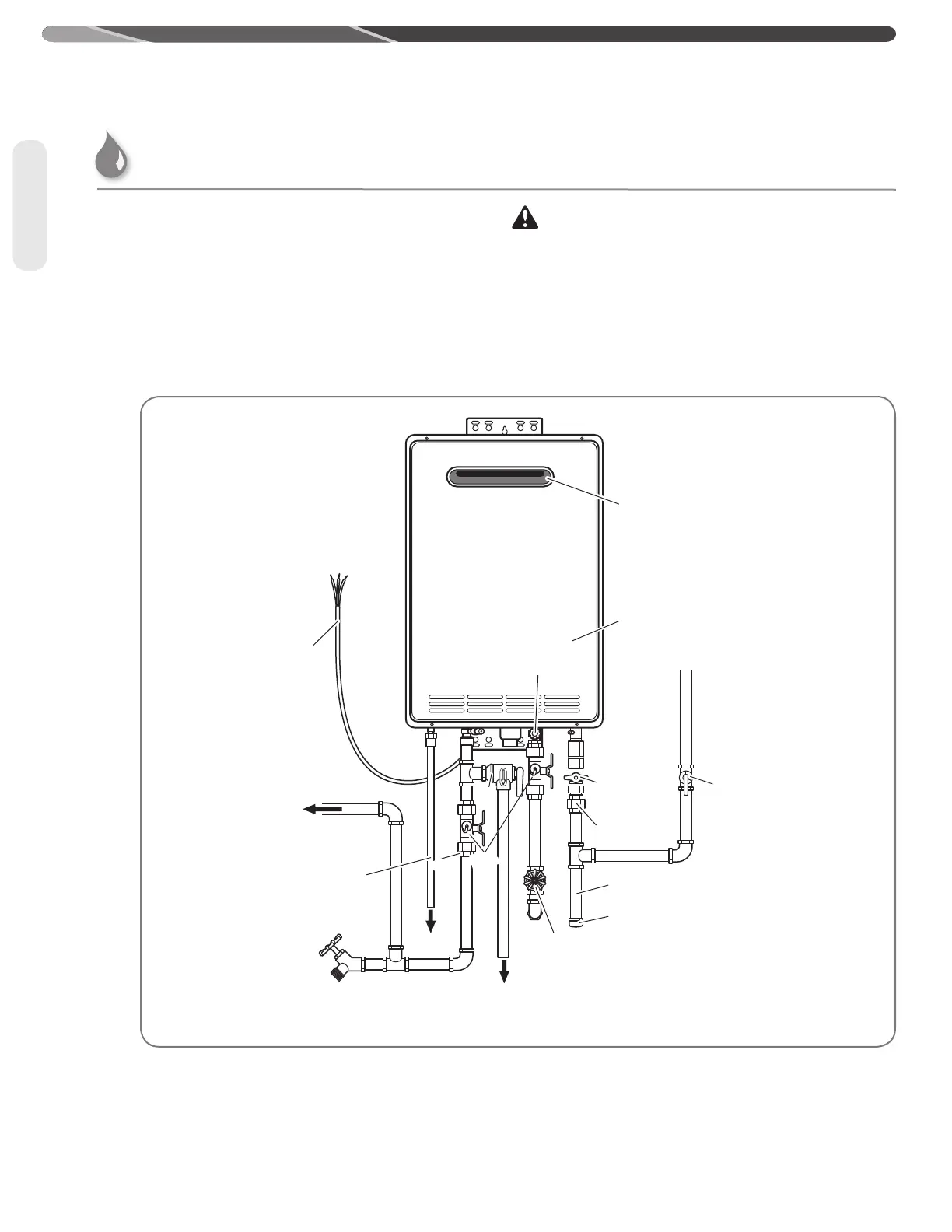

Typical Installation of
Outdoor Water Heater
(No Venting Required)
This water heater is for OUTDOOR installation only.
*Note: A exible drain tube can be used
To Suitable
Drain
To Suitable
Drain
To Hot Water
Faucet(s)
Drain Valve
Cold Water Supply
Shut-O Valve
Hard-Wire
(not supplied)
Union
Manual Gas
Supply Line
Shut-O Valve
Flue
Terminal
Cap
Sediment Trap
Manual Gas
Shut-O Valve
(Supplied)
Water
Filter
UnionUnion
Service
Valve
Service
Valve
Relief
Valve
Relief
Valve
Condensate
Drain*
WARNING:
DO NOT install this water heater indoors or in a confined space.
It is designed for outdoor installation only. Any other type of
installation can result in death, personal injury, and/or damage
to the product or property.
Air Intake
