SCANNER SECTION
B044/B045/B046 3-10 SM

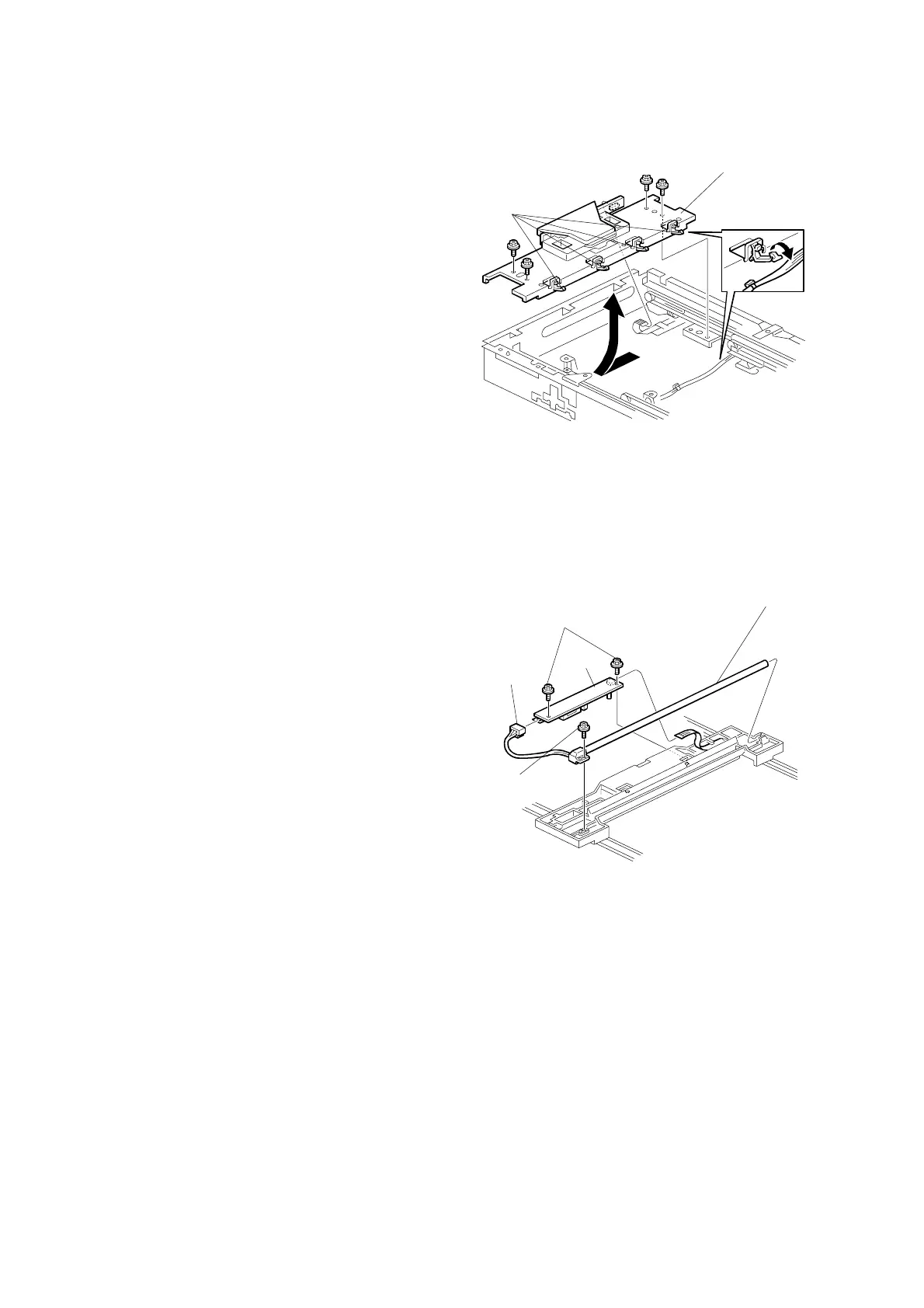

3.4.2 LENS BLOCK
1. Exposure glass (☛ 3.4.1)
2. Unclamp four clamps [A], and take
the wire out of the clamps.
3. Lens block [B] (! × 4, 1 flat cable)
NOTE: 1) Do not loosen the paint-
locked screws holding the
lens unit in place.
2) After installing a new lens
block, carry out copy
adjustments. (☛ 3.13)
3.4.3 EXPOSURE LAMP, LAMP STABILIZER BOARD
1. Exposure glass (☛ 3.4.1)
2. Operation panel (☛ 3.3.7)
3. Slide the 1st scanner to a position
where the lamp and scanner are clear
of the metal lids.
4. Disconnect the lamp connector [A].
5. Remove either or both of the following:
• Exposure lamp [B] (1 screw at [C])
• Lamp stabilizer board [D] (2 screws
at [E], 1 flat cable)
B046R003.WMF
B046R001.WMF
[A]
[B]
[B]
[C]
[A]
[D]
[E]
