FUSING
SM 3-13 B044/B045/B046
Replacement
and
Adjustment
3.5 FUSING

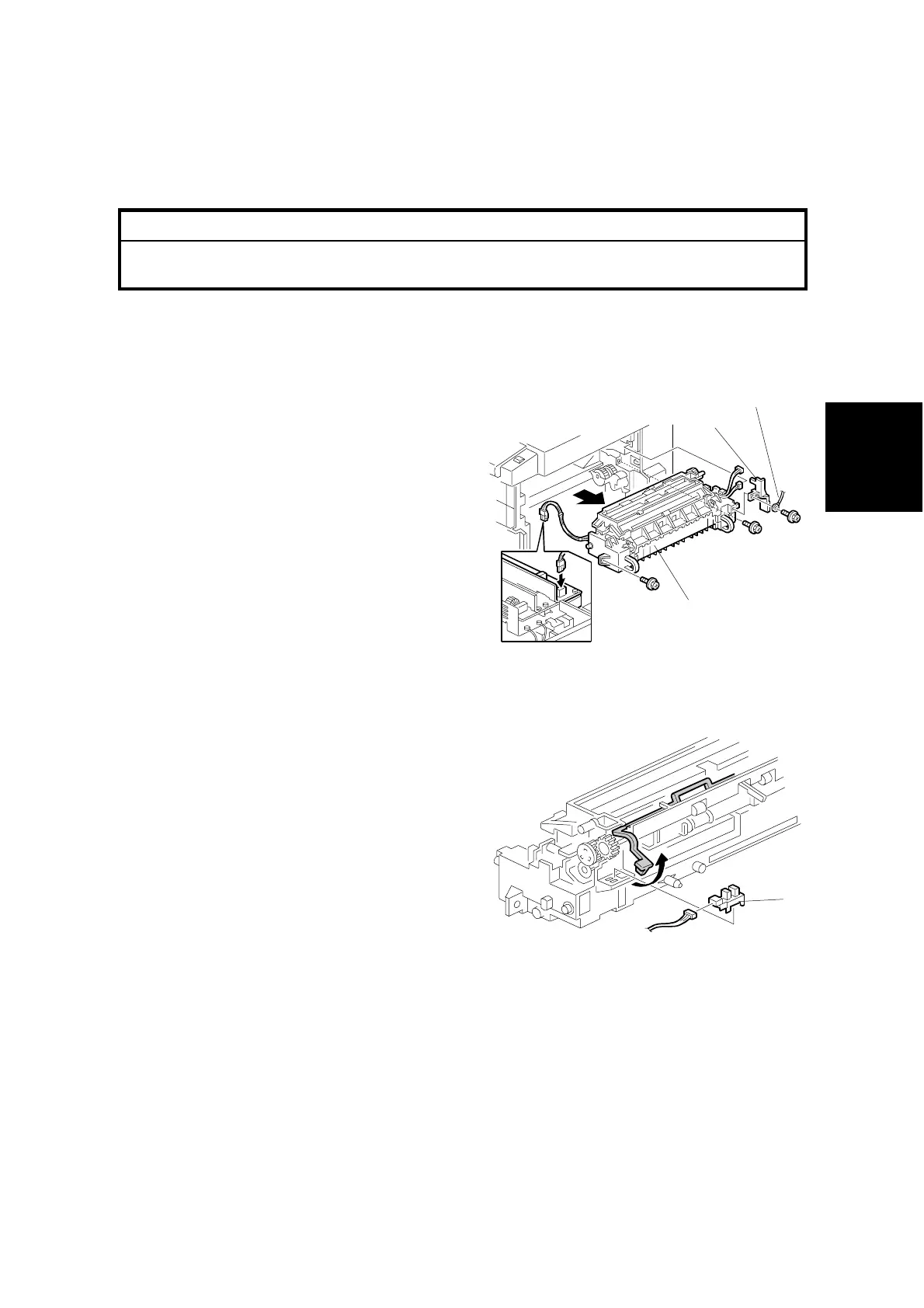

3.5.1 FUSING UNIT
!
CAUTION
The fusing unit can become very hot. Be sure that it has cooled down
sufficiently before handling it.
1. Turn off the main switch, and unplug the machine.
2. Copy tray (☛ 3.3.3)
3. Fusing unit [A] (! × 3, " × 3)
NOTE: When reinstalling the unit
replace the spacer [B] in the
correct position, and
remember to set the
grounding wire [C] into place.
3.5.2 EXIT SENSOR
1. Fusing unit (☛ 3.5.1)
2. Exit sensor [A] (" × 1)
B046R501.WMF
B046R508.WMF
[A]
[B]
[C]
[A]
To Next Page
