Connecting the Machine to a Telephone
Line and Telephone
Connecting the Telephone Line
To connect the machine to a telephone line, use a snap-in modular type connec-
tor.
Important
❒ Make sure the connector is the correct type before you start.
❖
❖❖

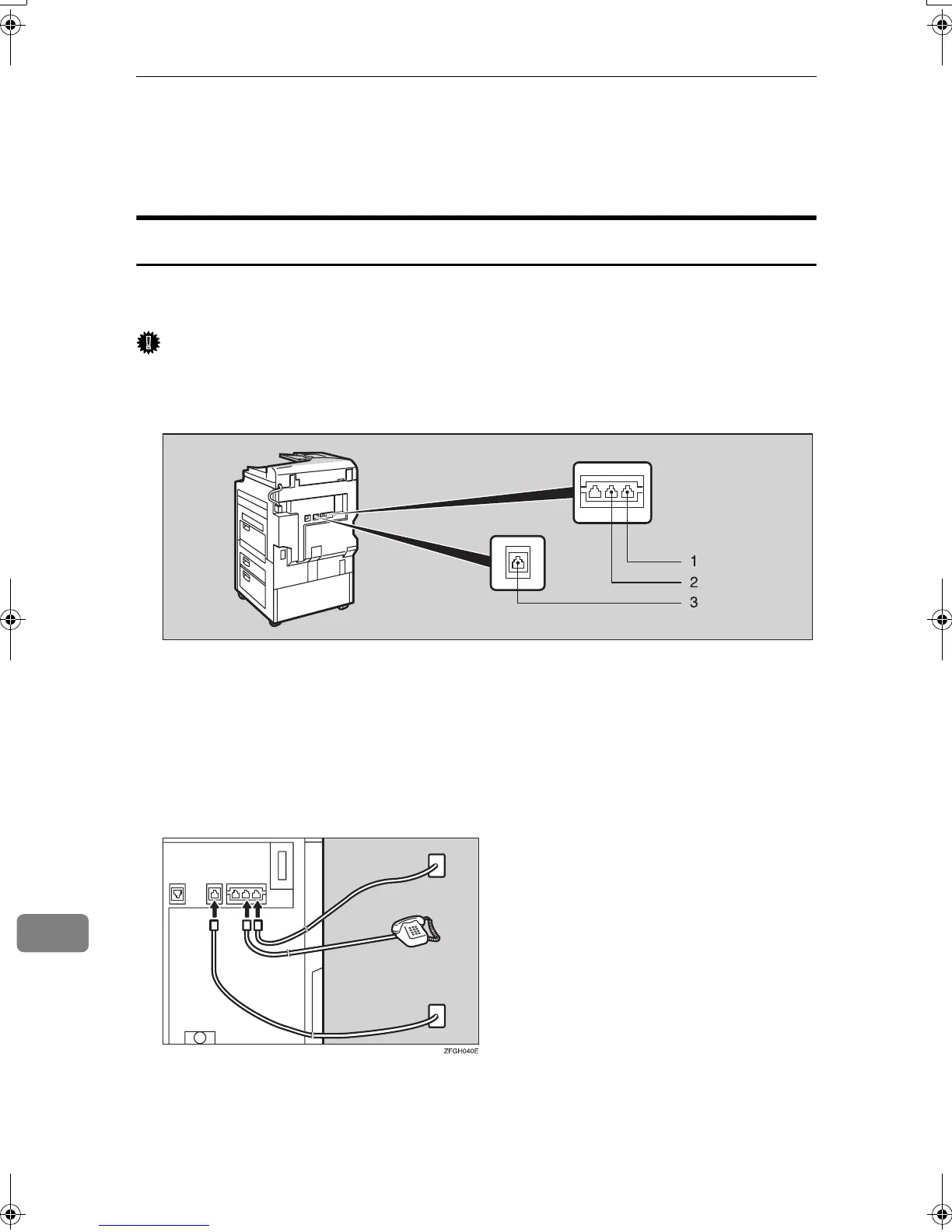

❖ Where to connect the machine
1.
G3 interface unit connector
2.
External telephone connector
3.
Extra G3 interface unit connector
❖
❖❖
❖ When using a modular type connector
ZLBH040E
